6kva 1800RPM Air-cooled Industrial Generators Open Type
US$ 300 - 500
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Saint
Model Number:
SML-5KW
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou port in china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
6kw Silent Hand Operated GeneratorUS$ 520 - 730MOQ: 1 Set -
High Quality !! 20KVA China Generator PricesUS$ 1,000 - 10,000MOQ: 1 Set
-
Hot Summer Sale !! Ricardo Diesel Generator 75kvaUS$ 2,000 - 100,000MOQ: 1 Set
-
SALE !! 2013 Brand New Lovol Open and Silent Type Generating SetUS$ 4,000 - 50,000MOQ: 1 Set
-
DG6500EW Diesel Welding Generator 5kvaUS$ 700 - 1,000MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
Saint
Model Number
SML-5KW
Output Type
AC Three Phase
Speed
3000rpm 3600rpm
Frequency
50hz 60hz
Rated Power
5kw
Rated Voltage
230v
Rated Current
157A
Specifications
industrial generatorsmore reliable,super silent
low fuel consumption
ATS,AVR,digital meters,copper wire
ce,iso9001

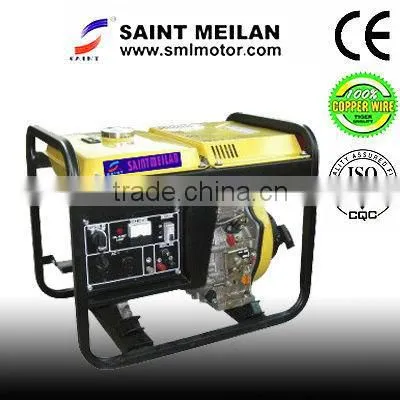

6kva 1800RPM Air-cooled industrial generators Open Type
1- coupled to a reliable and fun cooling diesel engine so it is compact in structure ,light in weight,low fuel consumption and convenient for operating.
2- low oli shutdown stops the engine immediately when the lube oil drops below a safe level so it can avoid to the damage and loss
3- durable-4 sheel rolling structure fortability and operating indoors or outdoors
4- no fuse circuit breaker provides overload protection
5- large fuel tank ensures hours of continuous running
6- inside it is coupledto high efficient noise-proof materials,virbrations-reducing structure combine to a form a silent machine
| Air-cooled Diesel Generator Sets (Single Phase) | ||||||
| Model | SML3GF-LN | SML5GF-LN | SML6GF-LN | |||
| Rated frequency(Hz) | 50 | 60 | 50 | 60 | 50 | 60 |
| Rated voltage(v) | 110,120,220,230,240,220/110,240/120 | |||||
| rated output power(kw) | 2.8 | 3.3 | 4.2 | 5 | 5 | 5.5 |
| Max output power(kw) | 3 | 3.6 | 5 | 5.5 | 5.5 | 6 |
| Dc output | 12V-8.3A | |||||
| Power factor cos1 | 1 | |||||
| Phase number | Single-phase | |||||
| Fuel tank capacity (l) | 16 | |||||
| Continuour running time (hr)(at rated power) | 12.5 | 11.5 | 8.5 | 7.5 | 8.5 | 7.5 |
| Noise level{db(A)/7m}(zero load-full load) | 70-74 | |||||
| Overall dimension{mm}(LXWXH) | 825*520*740 | 910*520*740 | 935*520*715 | |||
| Packing dimension {mm}(lXWXH) | 855*550*780 | 950*550*780 | 960*550*770 | |||
| Net weight kg | 132 | 156 | 171 | |||
| Gross weight kg | 150 | 170 | 185 | |||
| starter system | electric starter | |||||
| Engine model | SML178FGE | SML186FGE | SML186FAGE | |||
| Engine type | Single cylinder,4-stroke,air-cooled,vertical,diesel engine | |||||
| Bore*stroke(mm) | 78*62 | 86*70 | 86*72 | |||
| Displancement (cc) | 296 | 406 | 418 | |||
| Rated rotation speed (rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |
