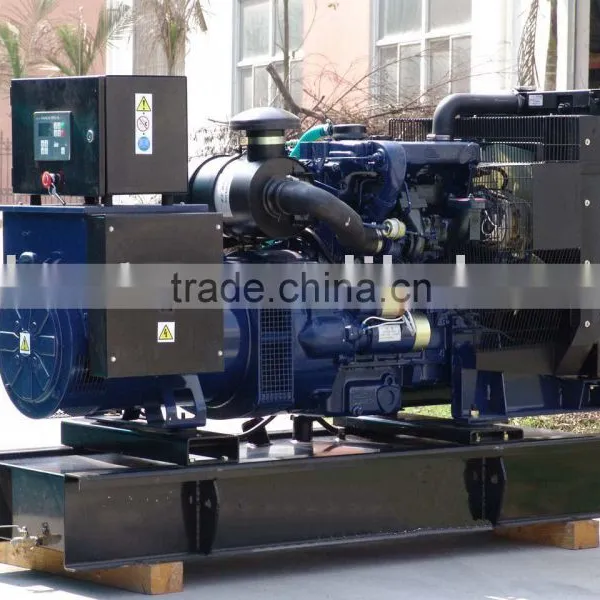

MF Battery 100 Gallon Fuel Tank Generator

Genset Model

SML400DPM

Prime

Standby

Genset Power (kW/kVA)

400/500

440/550

Engine Model

2506A-E15TAG2

Engine Power (kW)

451

495

Engine Make

Parkins

Engine Cooling Method

Water Cool

Speed Governing System

Electronic

Starting Method

24V Electric Start

Engine Filter System

Dry-type air cleaner, fuel filter, oil filter

Fuel System

Electric Injection

Engine Displacement (L)

15.2

Cylinder Bore×Stroke(mm)

137×171

Fuel Consumption 100% Load (g/KW.h)

112

123

Engine Oil ConsumptionL/h

0.91

Air-flow (m³/min)

628

Gas Consumption (m³/min)

36.2

Exhaust Smoke Level (m³/min

99.3

Exhaust Temperature ()

560

Oil Capacity (L

62

Coolant Capacity (L

92

Generator Make

Mecc Alte ECO40-3S

Generator Excitation Type

Brushless Self-exciting

Short Circuit Protection

MCCB Airbreak Switch

Rated Voltage/frequency/Power Factor

400V/230V,50Hz, 0.8 delay,3-phase, 4-wire

Steady Frequency Change

Better than 1%

No Load Voltage Adjusting Range

≥95%--105%

Steady Voltage Adjusting Rate

Better than ±1%

Insulation Degree/ Protection Levels

Class H/IP22

Tel. Influence coefficient/Harmonic Wave Factor

THF<2%

Accessories

Starting battery, connecting lines, fume exhaust curved pipe, damping corrugating tube, flange, muffler, chassis shock absorber

Dimensions(mm)

4000×1128×2197

Genset Weight (kg)

3946

Genset Noise dB(A)

105
