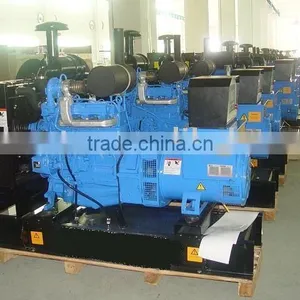

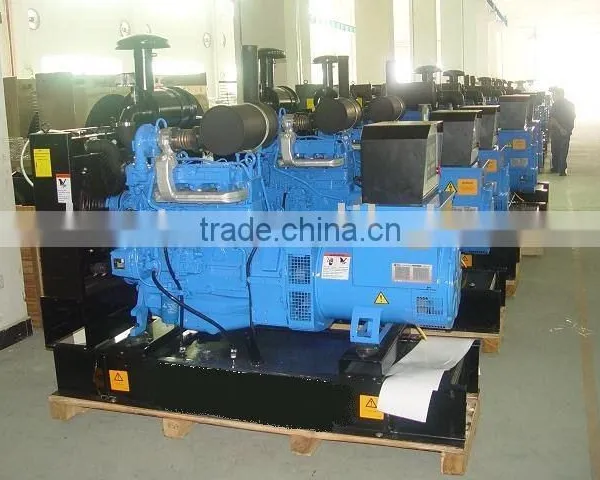

100kw FOB Diesel Portable Generator Set

US$ 1,000 - 9,999 MOQ: 1 Set

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

Model Number:

SMP, Saint Meilan

Fujian Saint Meilan Motor Wiring Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name UK

Model Number SMP, Saint Meilan

Output Type AC Three Phase

Speed 1500RPM/1800RPM

Frequency 50/60Hz

Rated Power 16kw to 108kw

Rated Voltage 230V/400V,277V/480V

Rated Current 20-600A

Specifications

100kw diesel generator set1 generator:stamford,leory somer
2 one year warranty
3 CE and ISO
4 water-cooled, Soundpr

100kw FOB diesel portable generator set

Genset Model	SML0182DPM
	Prime	Standby
Genset Power (kW/kVA)	180/225	198/248
Engine Model	1306C-E87TAG4
Engine Power (kW)	205	224
Engine Make	UK
Engine Cooling Method	Water Cool
Speed Governing System	Electronic
Starting Method	12V Electric Start
Engine Filter System	Dry-type air cleaner, fuel filter, oil filter
Fuel System	Electric Injection
Engine Displacement (L)	8.7
Cylinder Bore×Stroke(mm)	116.6×135.9
Fuel Consumption 100% Load (g/KW.h)	58		88
Engine Oil ConsumptionL/h	0.60
Air-flow (m³/min)	347
Gas Consumption (m³/min)	14.6
Exhaust Smoke Level (m³/min	42.6
Exhaust Temperature ()	535
Oil Capacity (L	26.4
Coolant Capacity (L	37.2
Generator Make	Mecc Alte ECO38-1SN
Generator Excitation Type	Brushless Self-exciting
Short Circuit Protection	MCCB Airbreak Switch
Rated Voltage/frequency/Power Factor	400V/230V,50Hz, 0.8 delay,3-phase, 4-wire
Steady Frequency Change	Better than 1%
No Load Voltage Adjusting Range	≥95%--105%
Steady Voltage Adjusting Rate	Better than ±1%
Insulation Degree/ Protection Levels	Class H/IP22
Tel. Influence coefficient/Harmonic Wave Factor	THF<2%
Accessories	Starting battery, connecting lines, fume exhaust curved pipe, damping corrugating tube, flange, muffler, chassis shock absorber
Dimensions(mm)	2700×1010×1720
Genset Weight (kg)	2080
Genset Noise dB(A)	105
