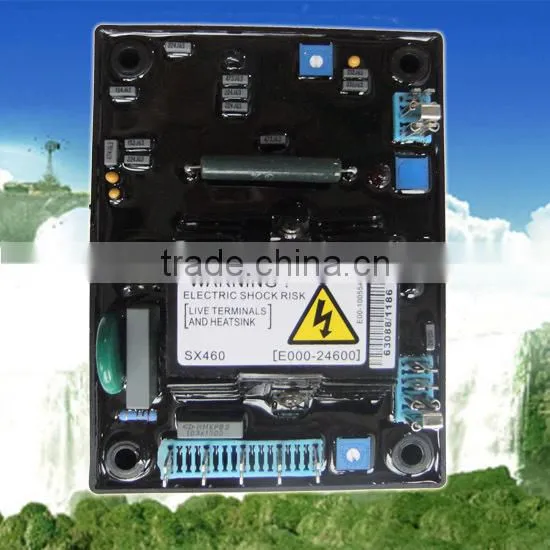

SX460 AUTOMATIC VOLTAGE REGULATOR (AVR) FOR GENERATOR(Nupart Carton/nomal Carton)

SX460 AUTOMATIC VOLTAGE REGULATOR (AVR) FOR GENERATOR(Nupart Carton/nomal Carton) thumbnail-1
SX460 AUTOMATIC VOLTAGE REGULATOR (AVR) FOR GENERATOR(Nupart Carton/nomal Carton) photo-1
US$ 18.99 - 25.99 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Stanford
Model Number:
SX460
Contact Supplier Request Quote Chat Now
Fujian Saint Meilan Motor Wiring Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
fuzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Stanford
Model Number SX460



SX460 AUTOMATIC VOLTAGE  REGULATOR (AVR) FOR GENERATOR(Nupart Carton/nomal Carton)

Application

Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the

out put voltage with load regulations of +/- 1.5%

Stability adjustment

Under frequency roll off adjustment





Input

Voltage

Jumper selectable 95-132V ac or 190-264V ac

Frequency

50-60 Hz nominal

Phase

1

Output

Voltage

max 90V dc at 207V ac input

Current

continuous 4A dc, intermittent 6A for 10 secs

Resistance

15 ohms minimum

Regulation

+/- 1.0%

Thermal Drift

0.05% per deg. C change in AVR ambient

Typical system response

AVR response

20ms

Filed current to 90%

80 ms

Machine Volts to 97%

300ms

External voltage adjustment

+/-10% with 1 k ohm 1 watt trimmer

Under frequency protection

Set point

95% Hz

Slope

170% down to 30 Hz

Unit power dissipation

12 watts maximum

10 watts maximum

Build up voltage

4 Volts @ AVR terminals

Environmental

Vibration

20-100 Hz,50mm/se

100Hz - 2kHz, 3.3g

Operating temperature

-40 to +70 Deg. C

Relative Humidity 0-70 Deg. C

95%

Storage temperature

-55 to +80 Deg. C



Why to choose us ?

1.Founded in 2005,with full experience of 10 years in manufacturing generator spare parts.

2.Started export since the year of 2008,with quick response to serve the oversea customers

3.Have already passed the strict quality inspection of ISO9001:2000 quality management system

4.Strong R&D Team to design and test products

5.Professional designers and technicians to provide technical assitance

6.Strict quality control process with strict standards

7.Strong installation consulting support

8.Quick after-sale technical advice and guidance

Payment Terms

 1.We accept Alipay, West Union, TT.

 2.All major Credit cards are accepted through secure payment processor ESCROW.



Shippment Terms



1. We Ship to Worldwide, besides APO/FPO (^_^)

2. Orders processed timely after showing remittance copy.

3. We only ship to confirmed order addresses. Your order address MUST MATCH your address.



Guarantee

1. Guarantee:1 year after selled.

2. During guarantee,the items share free repairs or replacement.

3. Customer is responsible for the freight come-and-go,and the custom tax.

4. You may consider to send the defective item with a economical way,and we send back the repaired items with your new order together.

5. To save the cost,pls send the item back without packing.

6. Pls provide the defective appearance and related invoice number.

7.We do not repair or replace item with an expired warranty.

8.All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
