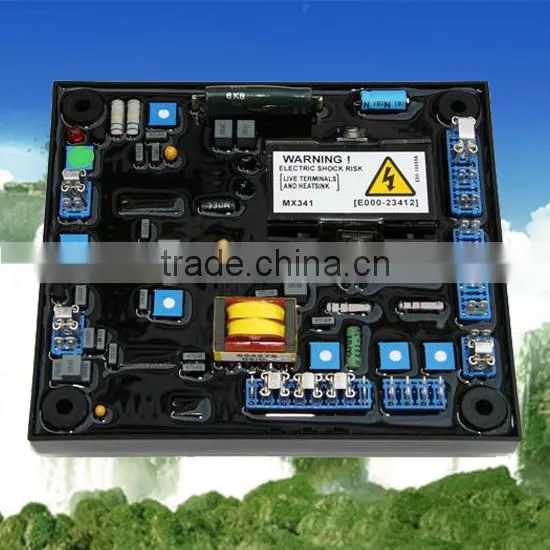

MX341 AUTOMATIC VOLTAGE REGULATOR (AVR) FOR GENERATOR(Nupart Carton/nomal Carton)
Technical Date:
Stamford AVR MX341 |
||||
Sensing Input |
Voltage |
190-264V ac max, 1 phase, 2 wire |
||
Frequency |
50-60 Hz nominal |
|||
Power Input(PMG |
Voltage |
140-220V ac max, 3 phase, 3 wire |
||
Current |
3A/phase |
|||
Frequency |
100-120 Hz nominal |
|||
Output |
Voltage |
max 120V dc |
||
Current |
Continuous 2.7 A |
|||
Resistance |
15 ohms minimum |
|||
Regulation |
+/- 1% |
|||
Thermal Drift |
0.02% per Deg. C change in AVR ambient |
0.03% per Deg. C change in AVR ambient |
||
Soft Staret Ramp Time |
3 seconds |
|||
Typical system response |
AVR response |
10ms |
||
Filed current to 90% |
80 ms |
|||
Machine Volts to 97% |
300ms |
|||
Why to choose us ?
1.Founded in 2005,with full experience of 10 years in manufacturing generator spare parts.
2.Started export since the year of 2008,with quick response to serve the oversea customers
3.Have already passed the strict quality inspection of ISO9001:2000 quality management system
4.Strong R&D Team to design and test products
5.Professional designers and technicians to provide technical assitance
6.Strict quality control process with strict standards
7.Strong installation consulting support
8.Quick after-sale technical advice and guidance
Payment Terms
1.We accept Alipay, West Union, TT.
2.All major Credit cards are accepted through secure payment processor ESCROW.
Shippment Terms
1. We Ship to Worldwide, besides APO/FPO (^_^)
2. Orders processed timely after showing remittance copy.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your address.
Guarantee
1. Guarantee:1 year after selled.
2. During guarantee,the items share free repairs or replacement.
3. Customer is responsible for the freight come-and-go,and the custom tax.
4. You may consider to send the defective item with a economical way,and we send back the repaired items with your new order together.
5. To save the cost,pls send the item back without packing.
6. Pls provide the defective appearance and related invoice number.
7.We do not repair or replace item with an expired warranty.
8.All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
