Specifications
we are special for gable top carton filling machine (liquid filling).
this series gable top carton filling machine is a kind of small type equipment, in low automation degree and small amount of output. They are specially designed by Beiya Company based on for market need. The equipment occupies small area, with low power consumption, and is easily operated and maintained. The price is comparatively low, which is ideal equipment for small and medium-size companies and companies who want to produce first class gable top carton products with low output.
BW-1000A-3 type machine is used to fill pure milk, yogurt, cream, dairy drink, juice, beaten egg, water, etc. It normally adopts low temperature filling, and the finished products are usually kept in cold storage which can be highly fresh with short shelf life.
1. Work flow : (This type machine consists of three separate machines: carton forming machine, capping machine, and filling machine.)
1) Carton Forming Machine:Cardboard → Manually put the carton → Bottom preforming (manually) → Bottom heating → Bottom sealing and molding → Top open carton
2) Capping Machine:Manually put the cap → Manually put the carton → Ultrasonic cap welding → Top open carton with cap
3) Filling Machine:Manually put the carton onto conveyor → Top preforming → Filling → Top sealing and molding → Date printing → Finished product
The operation of the filling machine is automatically controlled by computer program, and others are controlled by electric apparatus. The whole operation needs 4 persons.
2. Technical parameter:
Capacity: 200-2000ml, can be filled in a same machine
Output: 800-1200 cartons/hour

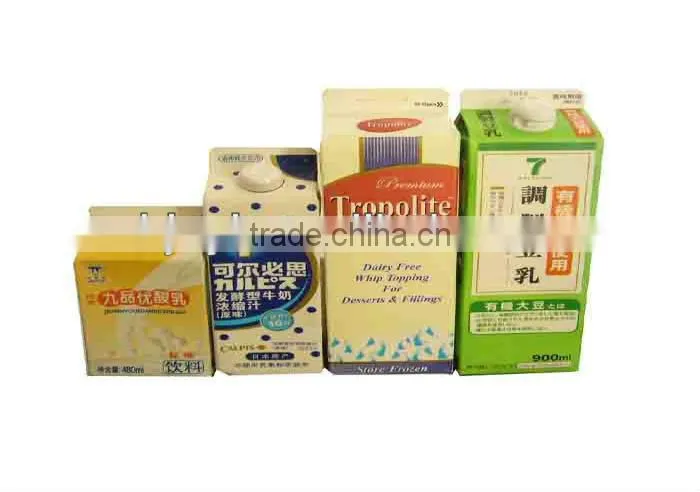

Packing material: A type carton, bottom size: 95*95mm, 70*70mm, 57*57mm (one size for one machine)
Cap:capping (Optional), can be done in a same machine. Cap sizes: from φ26-φ36 (one size for one machine)
Filling temperature: 2-50°C
Shelf life: 12 months for whipped cream (-18°C cold storage)
7-21 days for yogurt (2-6°C storage)
30-60 days for acid juice (2-6°C storage)
Overall power: 22KW
Compressed air pressure: 1.0-1.4 Mpa, flow rate: 1.4-2M3/min, without oil and dust
Cooling water:Flow volume:≥40L/ min Temperature:≤15°C
Size: (L*W*H): Box-forming machine: 1.3m*0.9m*1.5m
Capping machine: 0.8m*0.6m*1.2m
Filling machine: 2.0m*0.9m*2.6m
Net Weight: 1200kg, (box forming machine: 300kg, capping machine: 100kg, filling machine: 800kg)
Installation requirement: Any smooth floor, such as cement, floor tile, plastic ground, etc. Do not need to make angle.
Fruit and vegetable juice production line for gable top carton
1. process flow:
2. machine technics
3. Applied products:
various fruit and vegetable juice beverage, fruit vinegar beverage, yoghurt, cereal and corn juice beverage, such products via hot filling.
4. Product character:
beautiful appearance, high grade, easy drinking, package material environmental protection. Suitable for supermarket, catering and hotel sales.
Dairy beverage production line for gable top carton
1. process flow:
2. machine technics
3. Applied products:
various dairy beverage, flavoured yoghourt, rice milk, corn juice such products needed to be hot filled.
4. Product characther:
beautiful appearance, high grade, easy drinking, package material environmental protection. Suitable for supermarket, catering and hotel sales.
Yoghourt production line for gable top carton
1. process flow:
2. machine technics:
3. Applied products:
ferment yoghourt, ferment yoghourt beverage, fresh juice etc.
4. Product character:
beautiful appearance, high grade, easy drinking, package material environmental protection. Suitable for supermarket, catering and hotel sales.
Non dairy cream production line for gable top carton
cess flow:
2. machine technics:
3. Applied products:
non dairy cream, man-made cream.
4. Product character:
beautiful appearance, high grade, easy drinking, package material environmental protection.
