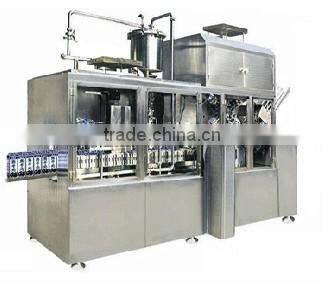

Help CenterGable Top Carton Filling Machine for Milk 013
Related Products
-
Gable Top Carton Filling Machine for Milk 014NegotiableMOQ: 1 Set -
Gable Top Carton Filling Machine for Butter 021NegotiableMOQ: 1 Set
-
Gable Top Carton Filling Machine for Butter 022NegotiableMOQ: 1 Set
-
Gable Top Carton Filling Machine for Butter 023NegotiableMOQ: 1 Set
-
Gable Top Carton Filling Machine for Butter 024NegotiableMOQ: 1 Set
Specifications
we are special for gable top carton filling machine (liquid filling).
BW-2000A type machine is suitable for filling pure milk, cream, yogurt, dairy product, juice, beaten egg, soyabeen milk, water, etc. It normally adopts low temperature filling, and the finished products are usually kept in cold storage which can be highly fresh with short shelf life.
The machine is divided into different types according to different output, configuration, automation degree, carton and cap size to satisfy different users' need.
1. Work flow :
Cardboard → Bottom preforming → Bottom heating → Bottom sealing and molding → Top preforming → Filling → Top sealing and molding → Date printing → Finished product
2. Technical parameter:
Capacity: 200-2000ml, can be filled in a same machine
Output: 1500-2000 cartons/hour
Packing material: A Type carton, bottom size: 95*95mm, 70*70mm, 57*57mm (one size for one machine)
Without capping system
Filling temperature: 2-50°C
Shelf life: 12 months for whipped cream (-18°C cold storage)
7-21 days for pure milk, yogurt (2-6°C storage)
30-60 days for acid juice (2-6°C storage)
Overall power: 16KW
Compressed air pressure: 1.0-1.4 Mpa, Flow rate: 1.4-2M3/min, without oil and dust
Cooling water:Flow volume:≥40L/ min Temperature:≤15°C
Size: (L*W*H): 2.9m*1.0m*2.9m
Net Weight: 3500kg
Installation requirement: Any smooth floor, such as cement, floor tile, plastic ground, etc. Do not need to make angle.
Fruit and vegetable juice production line for gable top carton
1. process flow:
2. machine technics
3. Applied products:
various fruit and vegetable juice beverage, fruit vinegar beverage, yoghurt, cereal and corn juice beverage, such products via hot filling.
4. Product character:
beautiful appearance, high grade, easy drinking, package material environmental protection. Suitable for supermarket, catering and hotel sales.
Dairy beverage production line for gable top carton
1. process flow:
2. machine technics
3. Applied products:
various dairy beverage, flavoured yoghourt, rice milk, corn juice such products needed to be hot filled.
4. Product characther:
beautiful appearance, high grade, easy drinking, package material environmental protection. Suitable for supermarket, catering and hotel sales.
Yoghourt production line for gable top carton
1. process flow:
2. machine technics:
3. Applied products:
ferment yoghourt, ferment yoghourt beverage, fresh juice etc.
4. Product character:
beautiful appearance, high grade, easy drinking, package material environmental protection. Suitable for supermarket, catering and hotel sales.
Non dairy cream production line for gable top carton
cess flow:
2. machine technics:
3. Applied products:
non dairy cream, man-made cream.
4. Product character:
beautiful appearance, high grade, easy drinking, package material environmental protection.
