What is SMC material?
1. Sheet Molding Compound is a fiber-reinforced material, which consists primarily of a thermosetting resin glass fiber.
2. SMC is a high tech material that is used in the manufacturing process in most of our products ranges.
3. The advantage of SMC include, high impact compressive, flexural and tensile strength along with temperature stability.
4. SMC has low profile, low shrink for excellent surface appearance and painting.it's color pigmentable and has excellent
chemical and electrical resistance varied to provide insulation, conductivity or anti static properties.

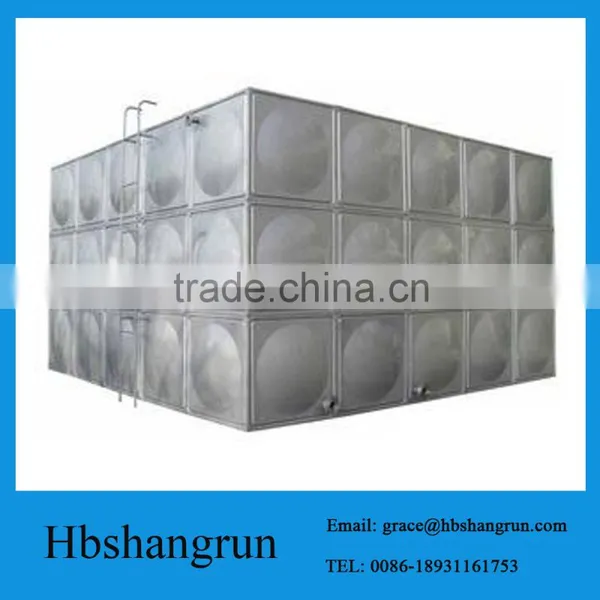

SMC Water Tank is made of Fiberglass reinforced plastics which is divided in FRP Modular type and SMC combination
type. The major advantage is light weight, anti-rusted, non-leakage, long durable time and easy to clean. It is widely used in
hotel, school,hospital and coal mine enterprise.
Internal Reinforcement - Hot Dipped Galvanized or Stainless Steel 304 rod support and tie-rod
2. Sealing Materials: Non toxic Rubber foam to be used for all jointing, it is especially developed with long experience and technology on SMC products. It maintains soft itself and adhesives even at low temperatures
3. Bolts, nuts and washers for the assembly of panels: Exposed externally are hot dipped galvanized steel and in contact with water internally are hot dipped galvanized steel or stainless steel 304
4. Flange: the flanges for inlet, outlet, drainage, overflow are hot dipped galvanized steel or stainless steel 304
5. Ladders: SMC sectional tank of 1.5m depth or more shall be provided with internal ladder made up of materials same with the supports. The external ladders shall be galvanized mild steel or equivalent
6. Drainage: The dome shaped bottom panel with a concave drain panel facilitates complete and fast drainage. The concave drain panel has been designed to ensure the periodic cleaning and inspection of tank
7. Overflow Screens: it can be supplied with a screen overflow having a micro mesh filter
8. Man-hole opening & Inspection Hatches: the size can be customized; normally it is supplied with a standard size of:600 x 600mm. the opening can be designs of bolt, seal-tight locking arrangement
9. ABS roof vent with PE insect screen
10. Float level indicator, optional SS304 for internal and external support structure are available on request

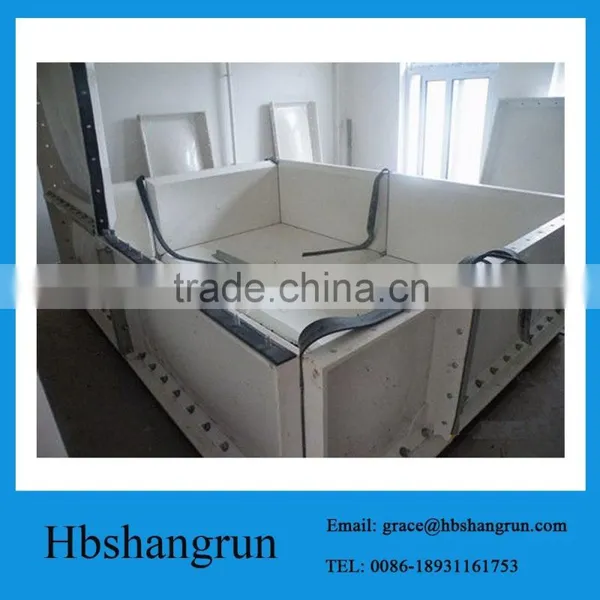

the inside of the water

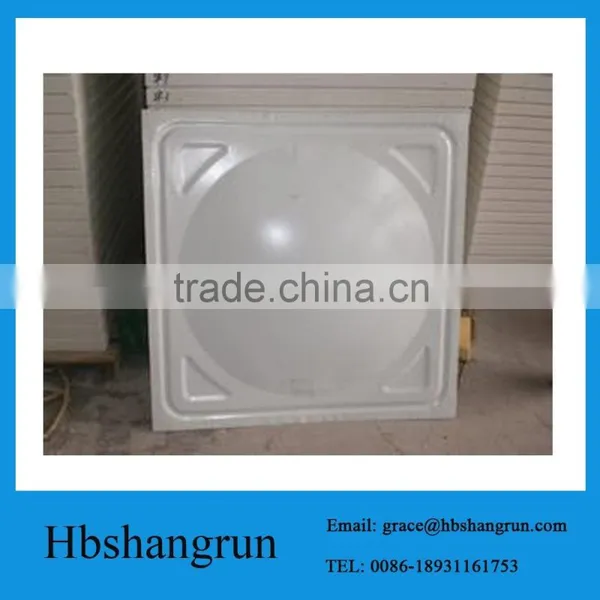

panel

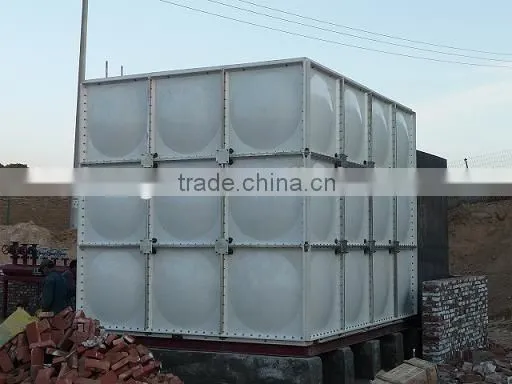

installation
We can assemble all kinds of tanks according to customers'demand.
steel frame or plywood Box Package with Steel Belt Save space as much as possible for container loading
We can arrange our engineer to go to your country to install the water tank for you. During the installation and using, if the FRP panel is broken and it is the problem of the quality, we will change for you freely. And we will always offer you the technical support during using.
Hebei Shangrun Environmental Technology Co.,Ltd. is professional in manufacturing and exporting FRP machine and FRP products. Our machine includes FRP pipe winding machine, FRP tank winding machine, FRP pultrusion machine, FRP grating machine, FRP sheet machine, FRP rebar machine,and so on.
Welcome to visit our factory and choose the products you need.
