Specifications
plasma cutting machine bed:1.CE ISO Certification
2.Servo motor
3.Welded lathe bed of thick wall profiled steel

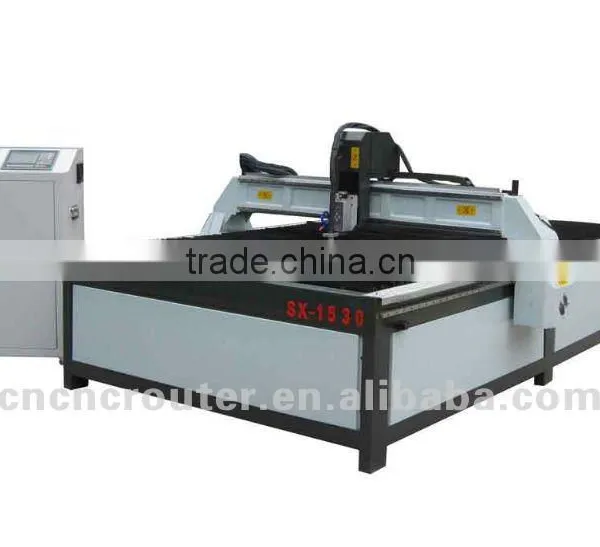

China cx1530 thick material plasma cutting machine bed:
Feature:
1. Welded lathe bed of thick wall profiled steel, more solid and stable.
2. Reasonable lathe table design, 10 mm thickness steel plates fixed on lathe table covered by cast sheath with spikes. The level difference of whole double-deck platform remains in 0-1.5mm
3. Advanced material inclined discharging design. All finished work pieces and fragments slide into both sides of tunnel for safe and convenient collection.
4. Panasonic Servo motor, Taiwan servo speed reducing device and high accuracy rack transmission. Lower noise, stable and accurate coordinate movement.
5. American Hypertherm power(optional Cut-Master power) together with high sensitive arc pressure adjuster. Self-adjusting to choose the best distance between plasma head and work piece automatically in order to ensure cutting accuracy.
6. Microstep control system made in Beijing. Best choice for all kinds of different thickness material and heterotypic sheet cutting.
Technical parameter:
Working material |
1325 |
1530 |
Processing thickness |
1300×2500mm |
1500×3000mm |
Current Plasma |
0.5-50mm(optional) |
|
Cutting precision |
45A-200A(optional) |
|
Orientation |
±0.5mm |
|
precision |
0.05mm |
|
Cutting speed |
0-8m/min |
|
Travelling speed |
0-15m/min |
|
Power |
8.5KW-10.5KW |
|
Input voltage |
380V |
|
Power frequency |
50HZ |
|
The mode of file |
USB(Interface ) |
|
|
transfer Working form |
untouched arc striking |
|

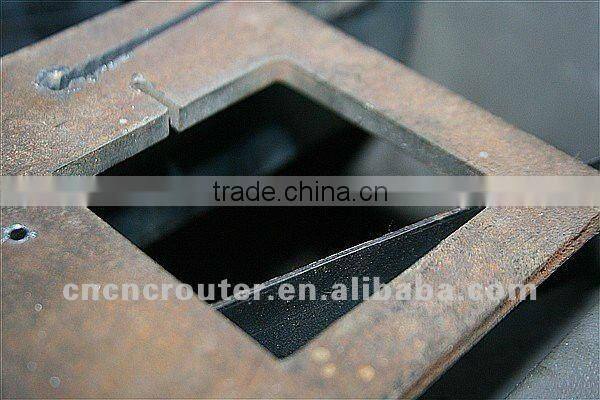

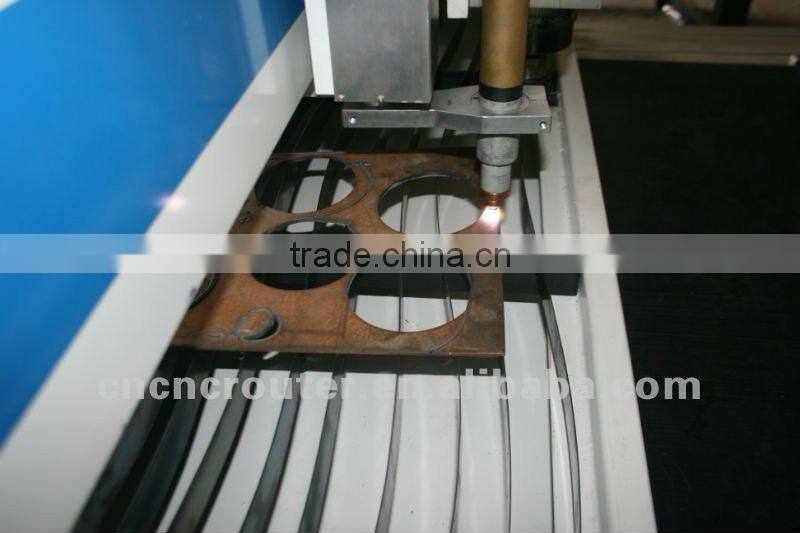

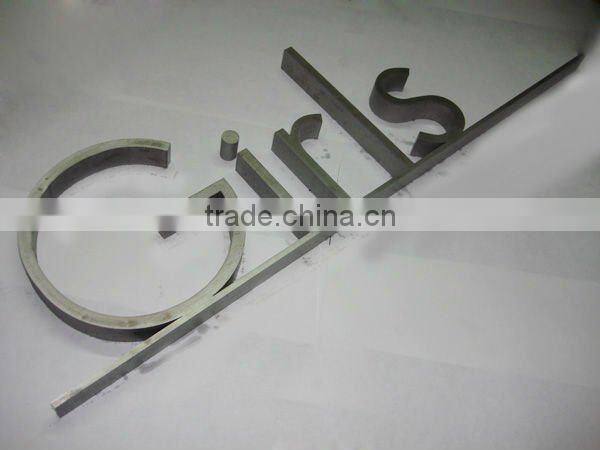

photos:
