Specifications
CX-1325 Plasma Cutting Machines1.Seamless steel structure
2.Auto ARC starting
3.DSP handset control

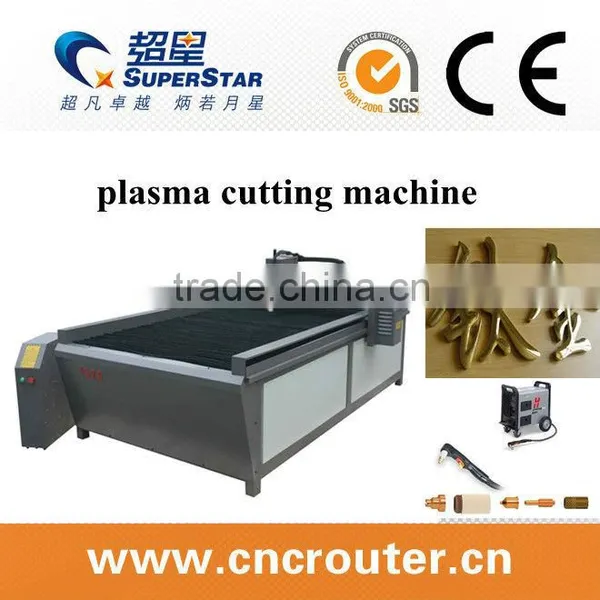

CX-1325 cnc high definition plasma cutting machine
Feature
1.Gantry structure,double motor driver of Y axis.Light beam design,linear guide rail,high accuracy,stable transmission.
2.Untouched plasma head,small cutting edge,no cutting residue. Water cooling system avoids the distortion of
metal board. High cutting speed,high accuracy,low cost.
3.Advanced numeral control system,stable performance. Software compatability: Ucancam,Type3,Artcam,etc.
Success ratio of arc striking can be over 99%.

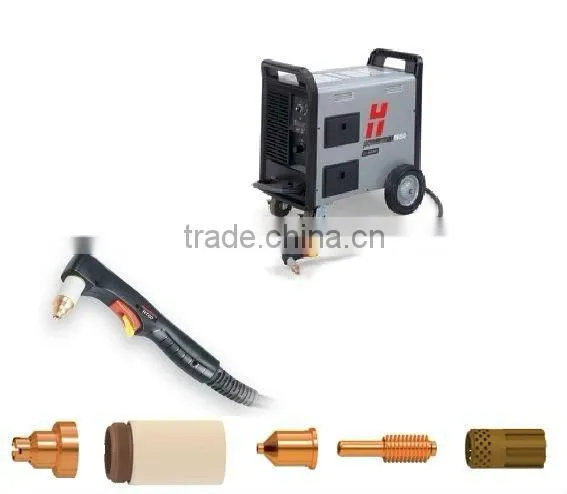

Powersupply: Imported Hypertherm or Thermadyne series or China
Control system: Shanghai Communication University Control system
Structure: 3 axises square orbits, Gear-wheel
Software: Fastcam software
Technical Specifications
Model |
CX-1325 |
X,Y working area |
1300mm×2500mm |
Z size |
150mm |
Lathe bed |
steel structure with water sink |
Machine Power |
8.5kw |
Working voltage |
380V/50HZ |
Reposition precision |
±0.05mm |
Processing precision |
±0.1mm |
Maximum cutting speed |
1500mm/min |
Torch Height control mode |
Manually |
Cutting thickness |
0-10mm |
Plasma power supply |
Hypertherm Plasma power supply made in USA 65A |
Control system |
DSP |
Motors |
Stepper |
Software |
Wentai |
Weight |
800kg |
Option:
1, Different working size: 1300X2500MM /1500X3000MM /1600X4000MM or other sizes according to customers’ needs
2, Servo motors and drivers
3, Different power: 65A / 100A / 130A /200A for different thickness cutting
4, Torch Height control system
PHOTOS:
