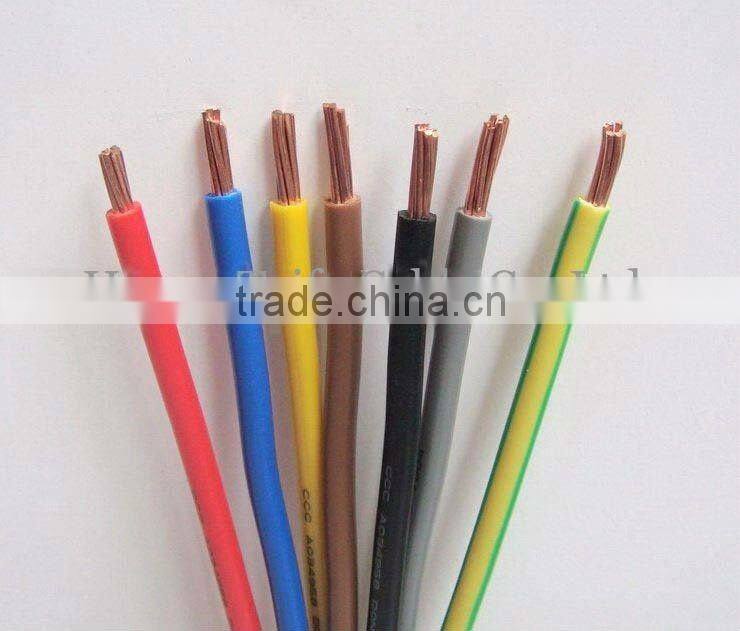

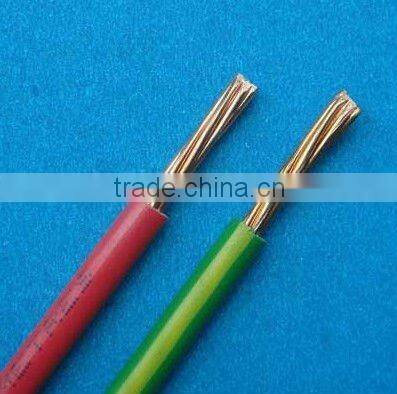

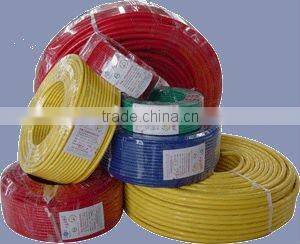

copper core pvc insulated 1.5mm,2.5mm 4mm 6mm 10mm wire/ HO5V-K
450/750 v
IEC , ASTM ,DIN ,BS standard
300/500V, 450/750V pvc Insulated Wire
227IEC,BWG,AWG Wire Cable
Superior Quality pvc Insulated Electric Wire
Standard: IEC60227
Voltage: 300/500V, 450/750V
Electric WireType, name, rated voltage, producton and applicable scope:
| Type |
Nominal area of conductor(mm2) |
Insulated thickness(mm) |
Electric Wire structure piece/diameter(mm) |
20CThe biggest direct current of conductor is hindered hour (Ω/km) |
70CInsulating ΩM.km≥ |
| BVR | 2.5 | 0.8 | 19/0.41 | 7.41 | 0.011 |
| 4 | 0.8 | 19/0.52 | 4.61 | 0.009 | |
| 6 | 0.8 | 19/0.64 | 3.08 | 0.0084 | |
| 10 | 1.0 | 49/0.52 | 1.83 | 0.0072 | |
| 16 | 1.0 | 49/0.64 | 1.15 | 0.0062 | |
| 25 | 1.2 | 98/0.58 | 0.727 | 0.0058 | |
| 35 | 1.2 | 133/0.58 | 0.524 | 0.0052 | |
| 50 | 1.4 | 133/0.68 | 0.387 | 0.0051 | |
| 70 | 1.4 | 189/0.68 | 0.268 | 0.0045 | |
| 227IEC 06 (RV) |
0.5 | 0.6 | 16/0.20 | 39.0 | 0.013 |
| 0.75 | 0.6 | 24/0.20 | 26.0 | 0.011 | |
| 1.0 | 0.6 | 32/0.20 | 19.5 | 0.010 | |
| 227IEC 02 (RV) |
1.5 | 0.7 | 30/0.25 | 13.3 | 0.010 |
| 2.5 | 0.8 | 49/0.25 | 7.98 | 0.009 | |
| 4 | 0.8 | 56/0.30 | 4.95 | 0.007 | |
| 6 | 0.8 | 85/0.30 | 3.30 | 0.006 | |
| 10 | 1.0 | 77/0.41 | 1.91 | 0.0056 | |
| 16 | 1.0 | 119/0.41 | 1.21 | 0.0046 | |
| 25 | 1.2 | 189/0.41 | 0.780 | 0.0044 | |
| 35 | 1.2 | 266/0.41 | 0.554 | 0.0038 | |
| 50 | 1.4 | 380/0.41 | 0.386 | 0.0037 | |
| 70 | 1.4 | 361/0.50 | 0.272 | 0.0032 | |
| 95 | 1.6 | 481/0.50 | 0.206 | 0.0032 | |
| 120 | 1.6 | 629/0.50 | 0.161 | 0.0029 | |
| 150 | 1.8 | 777/0.50 | 0.129 | 0.0029 | |
| 185 | 2.0 | 925/0.50 | 0.106 | 0.0029 | |
| 240 | 2.2 | 1220/0.50 | 0.0801 | 0.0028 |
(Note:the above information is limit, we also can manufacture many kinds of wires/cables according to customer’s special requirement and we also accept OEM orders with other equivalent standards. )
Henan Taifa Cable Co., Ltd obtained CIS certificate, SGS certificate, SONCAP certificate and others, we have also attained ISO9001, ISO14001 CCC certifications and others.
Sincerely looking forward to your attention, more specification details about this type or others please contact me freely; maybe I Will give you a big surprise.
