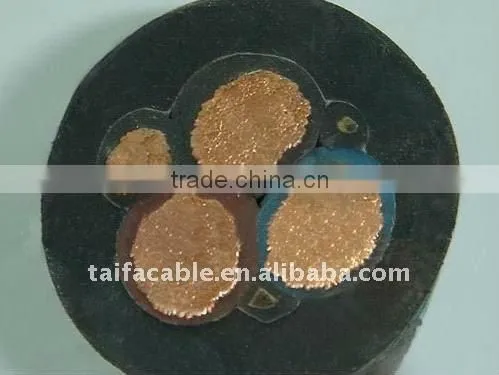

copper conductor marine cable H05RR-F H05RN-F H07RN-F Flexible Rubber Cable
These cables are designed to provide high flexibility and have the capacity to withstand weather, oils/greases, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial environments.
Products standards
BS EN 60228:2005 (previously BS6360)
Products types & names
--H05RR-F Ordinary rubber sheathed cord.
--H05RN-F Ordinary polychloroprene or other equivalent synthetic elastomer sheathed cord (1-4 cores).
--H07RN-F Heavy polychloroprene or other equivalent synthetic elastomer sheathed flexible cable.
Products characteristics
--Long-term working temperature of cables: EPR insulated cables should not be higher than 65°C,EPT/EPDM insulated cables should not be higher than 90°C.
--Such cables are more flexible and easy to move electrical appliances.
1. Products applications:
Rubber cable is suitable for connection with household appliances, electric tools and various mobile electrical equipments of rated voltage up to and including 450/750V.
2. Products standards: BS EN 50525-2-21
3. Products types & names:
--H05RR-F Ordinary rubber sheathed cord.
--H05RN-F Ordinary polychloroprene or other equivalent synthetic elastomer sheathed cord (1-4 cores).
--H07RN-F Heavy polychloroprene or other equivalent synthetic elastomer sheathed flexible cable.
4. Products characteristics:
--Long-term working temperature of cables: EPR insulated cables should not be higher than 65°C,EPT/EPDM insulated cables should not be higher than 90°C.
--Such cables are more flexible and easy to move electrical appliances.
| HAR Code | IEC | Description | Voltage Design | Cores |
| H05RR-F | 60245 IEC 53(YZ)/YZ | Oridinary rubber sheathed cord | 300/500V | 2~6 |
| H05RN-F | 60245 IEC 57(YZW)/YZW | Oridinary polychloroprene or other equivalent synthetic elastomer sheathed cord | 300/500V | 2~6 |
| H07RN-F | 60245 IEC 66(YCW)/YC | Heavy polychloroprene or other equivalent synthetic elastomer sheathed flexible cable | 450/750V | 1~5, 3+1/3+2/4+1 |
| H01N2-D | 60245 IEC 81(YH) | Rubber sheathed arc-welding electrode cable | 100/100V | 10-120 |
| 60245 IEC 82(YHF) | polychloroprene or other equivalent synthetic elastomer sheathed arc-welding electrode cable | 100/100V | 10-120 |
