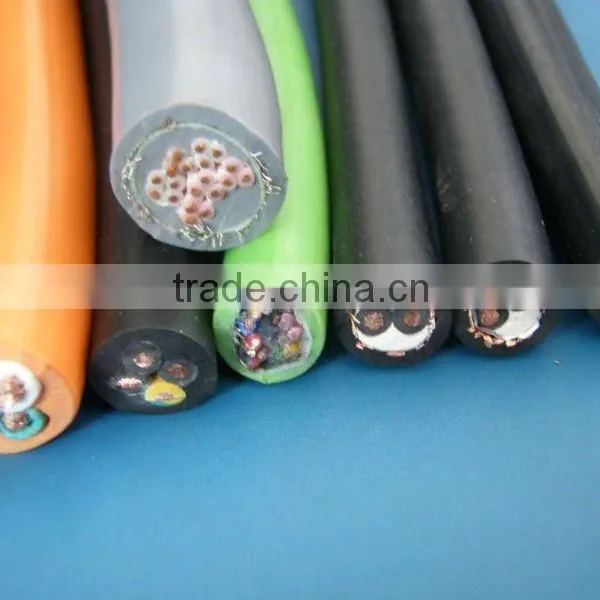

High quality 4 core Rubber insulated rubber sheathed cable 25mm 35mm 50mm flexible rubber cable
1.Rubber Cable Working Conditions:
1.Rated voltage :300/500(YZ type),450V(YC type)
2.The long-term working temperature of conductor should be no longer than 65*C
3.W type cables have weather-proof character and certain grease-proof character and are suitable for outdoor usage and the occasion with greasy dirt.
4. ZR type cables have fire-retardant character.
2.Characteristics
1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 300/300V.
2. Maximum permitted operating temperature of conductor is 60°C.
3. Permitted lowest working temperature is -35°C.
4. Cables can be used at places contaminated by mineral oil and fuel oil.
5. D>25mm
The minimum bending radius is over 6 times of cable diameter.
D≤25mm
The minimum bending radius is over 4 times of cable diameter.
(D-Diameter of the cable)
3. Features:
1. Standard: According to GB5013-85(Equal to IEC245),also can do by standard of ASTM,BS,DIN and AS/NZS or other standards.
2. Rated Voltage:450/750V ;300/500V ;300/300V
3. Construction:
Conductor:Copper;
Insulation: Rubber
Inner sheath:Rubber
NO. of cable cross: 1 core(Single core),2cores(Double cores),3cores, 4cores(4 equal-section-area cores OR 3 equal-section-area+1 small section area neutral core),5cores(5 3 equal-section-area cores+2 small area neutral cores OR 4 equal-section-area +1 small area neutral cores).We provide armored type and non-armored type for the cables stated above.
Also can do according to the customer's request.
4. Characters:
a.Max long-time operating temperature of conductor :65°C
b.Light-duty/Medium-duty/Heavy-duty rubber sheathed flexible cable optional
c.Insulation resistance within the insulated cores of the cable converted to 20°C.Section 35mm2 and below should be not less than 50MΩ.KM,50~150 mm2 not less than 30 MΩ.KM.185~400 mm2 not less than 20 MΩ.KM.
3.Specification H05RN-F H07RN-F H05RN-F H07RN-F H05RN-F H07RN-F H05RN-F H07RN-F H05RN-F
Type |
Name |
YQ |
NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for light duty |
YQW |
NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for light duty |
YZ |
NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for middle duty |
YZW |
NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for middle duty |
YC |
NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for heavy duty |
YCW |
NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for heavy duty |
YH |
NR/SBR rubber sheathed arc welding cable |
THF |
Neoprene rubber sheathed arc welding cable |
Note: suffix W means cable has the properties of weather and oil resistance, suitable for the places outdoors
and contaminated by the oil.
4.Rubber Cable Specification Range: H05RN-F H07RN-F H05RN-F H07RN-F H05RN-F H07RN-F H05RN-F H07RN-F
|
Type |
Rated Voltage |
Core Number |
Nominal Cross-section Area |
YQ,YQW |
300/300 |
2.3 |
0.3~0.5 |
YZ,YZW |
300/500 |
2.3.4.5.3+1 |
1.5~6 |
|
YC |
450/750 |
1 2 3.4 5 |
1.5~240 1.5~95 1.5~150 1.5~25 |
| 3+1 Core Rubber-Sheathed Flexible Cable(300/500V) | |||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||
