Small Metal Engraving Machine 300*300mm
- Qingdao port China
- T/T Money Gram
You May Like
-
Small Metal Engraving Machine CX-3030 (300*300mm)
-
M25S Auto Tool Changing Cnc Router China Good Price 4-axis Wood Cnc Router
-
CX-2025 With 8 Water Cooling Spindle Working at Same Time
-
8 Heads 4 Axis Column Engraving Machine
-
Cylinder Statue Engraving Machine
-
CNC 8 Heads Cylinder Engraving Machine CX-2624
Product Details
| Place of Origin | Shandong, China | Brand Name | Super Star | |
| Model Number | CX3030 | Rated Power | 220V | |
| Engraving Speed | 8m/min | Main Axle Rotational Speed | 24000rpm | |
| Feeding Height | 180mm | Milling Cutter Diameter | 4mm | |
| Application | metal mold engraving,electrode engraving | Dimensions | 300*300mm | |
| Weight | 1000kgs |
Product Description
Specifications
small metal engraving machine:1.linear square guide orbit
2.DSP control
3.Type3, Artcam software
4.high qualit ballscrew
small metal engraving machine:
Feature:
1. The machine body structure adopt cast iron, the rigidity is good, not easy to be deformed, to make sure the machine stability.
2. Pause, adjust speed and cutting depth anytime during cutting, also can preview the tool path. Convenient for engraving different materials, applicable to different industries.
3. Well-compatibility: compatible software CAD/CAM, such as type3/artcam/ JDPaint/proe/ug.etc
4. Imported WEIHONG system. This system have break point memory mode an special saving mode of different points, so that can make sure continuous working after electronic drop or other postpone situation. This function can guarantee the processing precision of long time operation.
5. Has the continue engraving function of break point and break. Has the function of zero return and correct automatically.
6. Adopting table movement to keep stable.
7. Heavy loading, non-deformation, adopting imported double-nut screw to ensure the engraving speed. Adopting the Taiwan high-precision square linear guide, effectively imported the precision of carving.
8. Body optimized design, using linear guide(cylindrical or square), long service life.
9. Adopt high-speed water-cooling variable frequency motor, big torque , strong cutting ,high-frequency, long-life, can be a long time continuous working.
Applicable industry: precise mold industry, toy industry, arts and crafts industry.
Application: used to process copper electrode, small stamping die, hot stamping mould, hardware mold, Epoxy mold, rubber mold etc.
Technical Parameter:
Model | CX-3030 |
XY working area | 320*320mm |
Table size | 340*340mm |
Z working area | 150mm |
Z feeding height | 180mm |
Traveling positioning accuracy | 0.01mm |
Repositioning positioning accuracy | 0.008mm |
Spindle speed | 1~24000rpm |
Drive system | Stepper/servo |
Control system | DSP |
Command language | G-code, U00, mmg, nc |
Max. rapid travel speed | 12m/min |
Max. working speed | 8m/min |
Working voltage | AC380V/AC220 |

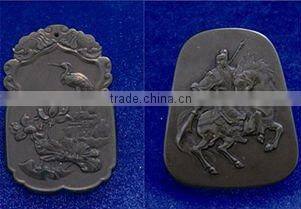

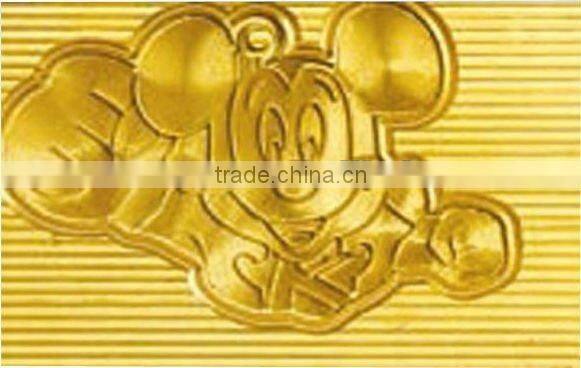

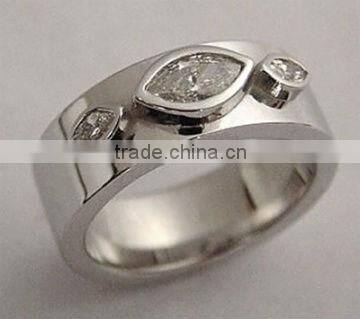

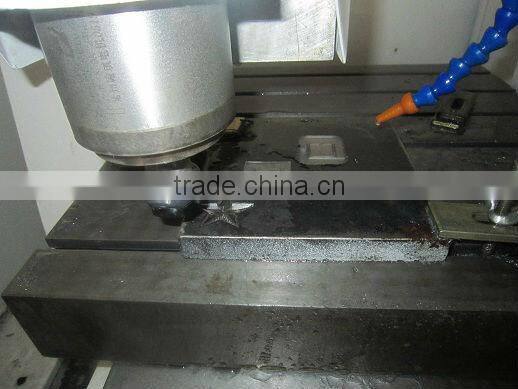

Sample:
