Specifications
six spindle cnc router:1.ballscrew imported from Germany
2.gear wheel transmission
3.waterproof and dustproof
4,Servo
six spindle cnc router
This series product is designed especially to engrave 2-dimension relief, classic furniture, red wood product.
can finish many pieces of product with same design
Features:
1. imported ball screw from Germany and Imported Linear Square Orbit
2. Three Axises adopt waterproof and dustproof structure to ensure the cleaness of the internal structure, provides a long lifespan
3. high-speed driver with high power inverter insures the stability through processing.
4.Taiwan inverter with stable output signals
5. High flexibility, uneasy distorted cable and imported electronic components
6.The machine can bear a long term of processing or processing under a harsh situation of temperature and humidity.
Technical Parameter:
X Working Area |
1300mm, each spindle working area 200mm |
Y Working Area |
4000mm |
Z Working Area |
300mm max |
Table Size |
1300mm*4000mm |
Processing Accuracy |
0.05mm min |
Repositioning Accuracy |
0.05mm min |
Table Structure |
T-slot aluminum profile |
X, Y, Z Structure |
X,Y Gear Wheel Z Ball Screw |
Max Rapid Travel Speed |
60000mm per min |
Max Working Speed |
25000mm per min |
Spindle Power |
1.5 KW |
Spindle Speed |
0-24000rpm |
Drive System |
Japan Servo |
Working Voltage v |
AC 380V/50HZ |
Command Language |
G-code |
Operating System |
NCSTUDIO System |
Waranty: 1 year
Finished product sample:

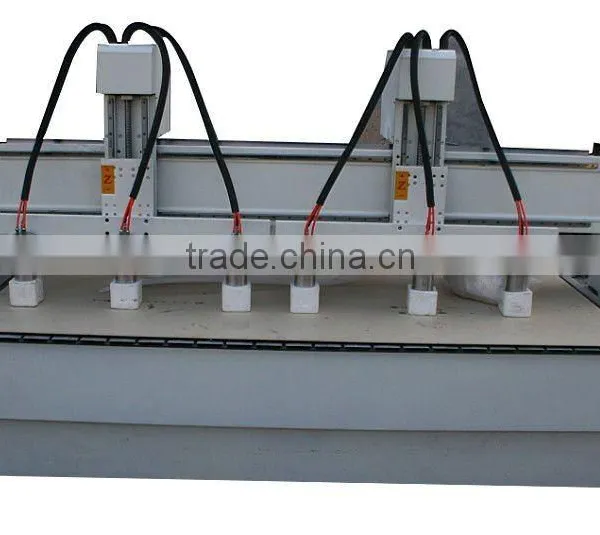

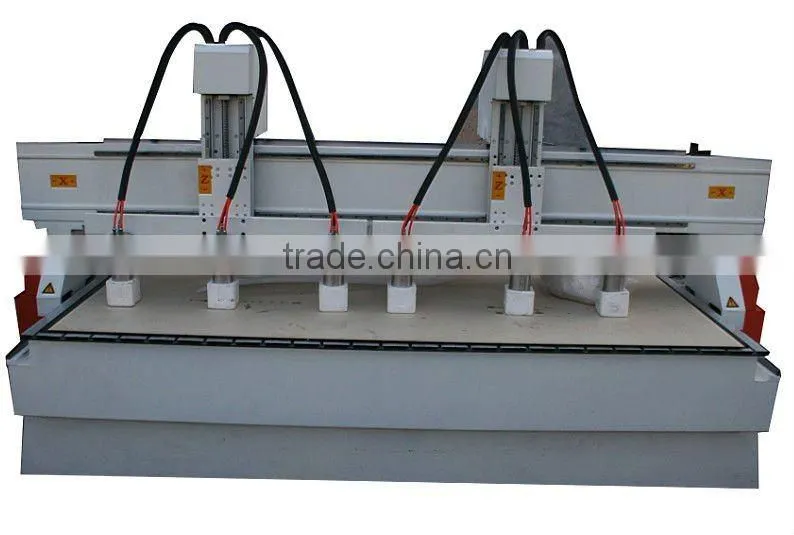

machine picture:
