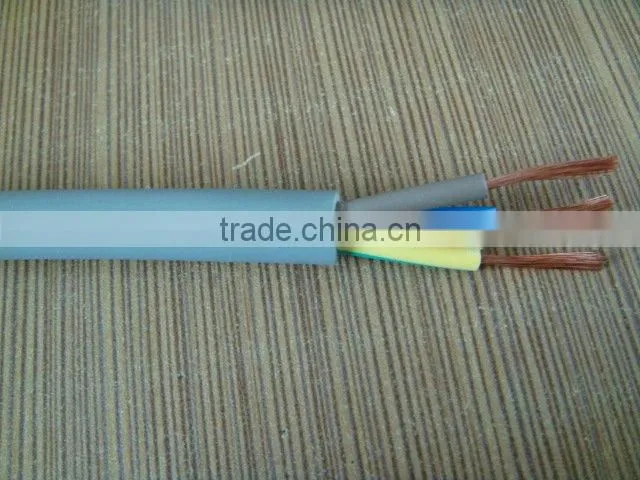

Factory low price PVC insulation cable h05v2v2h2-f h05v2v2-f wire Cable
Application:
power, control and connecting cable in electrical facilities for lossless data and signal transmission, fixed laying and flexible applications without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms. Outdoor use only with UV-protection, no laying underground
largely resistant to acids, bases and specified types of oil
free from lacquer damaging substances and silicone (during production)
additional mechanical protection by inner sheath recommended for EMC-applications
conductor resistance acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5
insulation resistance min. 20 MÙ x km
current carrying capacity acc. to DIN VDE, see technical Guidelines
min. bending radius fixed 6 x d min. bending radius moved 15 x d
operat. temp. fixed min/max -40 °C / +80 °C
operat. temp. moved min/max - 5 °C / +70 °C
temp. at conductor +70 °C in operation; +150 °C in case of short-circuit
burning behavior self-extinguishing & flame-retardant acc.to IEC 60332-1
standard similar to DIN VDE 0245, 0250 and 0281
approvals HAR HD21.13.S1
