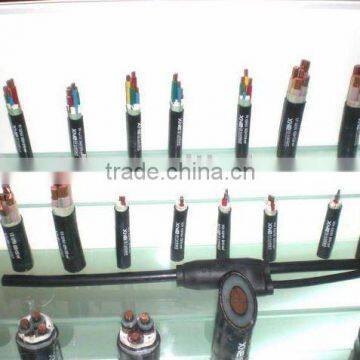

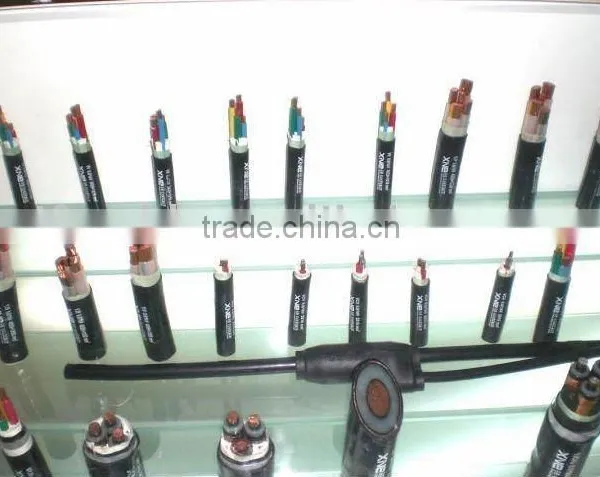

1-35KV Medium Voltage PVC/XLPE Electric Cable
Our company is a technical special cable production company integrating R&D, production and distribution. Founded in 1986, we are a experienced and high technology company of Henan province. Our enterprise has over 100 advanced manufacturing and test equipment introduced from at home and abroad, with almost 500 employees and independent rights of import and export.
We own huge technical strength and awarded the title of AAA class Reliable Company. The stability of quality greatly contributes to the customs faith in our products, most of which are graded as the national Consumer Trustworthy Product and Inspection-free Production
1.usage
It is used to transmit and distribute power on the power line of A.C. rated voltage 0.6/1-3.6/6KV.
2.Characteristics
1) The Max. rated temperature of the conductor is 70.
2) The Max. temperature of the conductor of the cables cannot exceed 160 when short circuit (Max. duration: 5s).
3) The cables can be laid without the limit of fall with enough mechanical pull, but the single core cable cannot be laid in iron tube or cannot be fixed by circled iron tools around the cables.
4) The laying temperature of cables should not be lower than 0, When the ambient temperature is under 0, the cables should be heated up to 0 or higher with certain methods.
3.Type and application
Type |
|
Application |
|
Copper Conductor |
Aluminum Conductor |
||
VV |
VLV |
PVC insulated electrical cable |
For laying indoors, in tunnel or cable Trench, unable to bear external mechanical Forces. Single core cable in magnetic duct in not permissible. |
VY |
VLY |
PVC insulated, PE electrical cable |
|
VV22(VV62) |
VLV22(VLV62) |
PVC insulated ,steel tape armored, PVC sheathed electrical cable |
For laying indoors, in runnel, in cable trench or direct embedding, able to bear external mechanical Forces ,but unable to bear large pulling Force. |
VV23(VV63) |
VLV23(VLV63) |
PVC insulated ,steel tape armored, PE sheathed electrical cable |
|
VV32(VV72) |
VLV32(VLV72) |
PVC insulated ,fine steel wire armored, PVC sheathed electrical cable |
For laying indoors, in tunnel ,cable trench, well or direct embedding, able to bear external mechanical forces |
VJV33(VV73) |
VLV33(VLV73) |
PVC insulated, fine steel wire PE sheathed electrical cable |
|
VV42(VV72) |
VLV42(VLV72) |
PVC insulated, heavy steel wire armored, PVC sheathed electrical cable |
|
VJV43(VV73) |
VLV43(VLV73) |
PVC insulated, heavy steel wire PE sheathed electrical cable |
|
Note: Inside of Bracket is single core cable types for AC system use. It is armored by non magnetic material.
Add ZR- before the Burning Resistance series products.
Add NH- before the Fire Resistance series products.
Package and Delivery
wooden drums seaworthy or at your option
delivery within 15 working days
