Medium Voltage 33KV XLPE Insulated Copper Core XLPE Power Cable 300mm2

Medium Voltage 33KV XLPE Insulated Copper Core XLPE Power Cable 300mm2 thumbnail-1
Medium Voltage 33KV XLPE Insulated Copper Core XLPE Power Cable 300mm2 photo-1
US$ 0.11 - 100 MOQ: 1 Kilometer
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Taifa
Model Number:
power cable
Contact Supplier Request Quote Chat Now
Henan Taifa Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name Taifa
Model Number power cable
Insulation Material XLPE
Type Medium Voltage
Application Industrial
Conductor Material Copper
Jacket PVC

33KV XLPE Insulated Copper Core PVC Power Cable


Product Description
1.Description:

Standards: BS6622, BS EN/IEC 60228

Conductor: Class 2 stranded plain copper conductor to BS EN 60228:2005 (previously BS6360)

Conductor screen: Semi-conducting material

Insulation: XLPE (Cross-Linked Polyethylene) Type GP8 to BS7655

Insulation Screen: Semi-conducting material

Metallic Screen: Individual and overall copper tape screen to BS6622

Filler: PETP (Polyethylene Terephthalate) fibres

Separator: Binding tape

Bedding: PVC (Polyvinyl Chloride) Type TM1 to BS7655

Armouring:
MultiCore: Steel Tape  Armoured (STA)/ Steel Wire Armored (SWA)

Sheath: PVC

Colour: Black





 Ambient installation temperature shall be not lower than 0°C; minimum bending radius: for single-core cable,20(D+d)(mm), for multi-core cable, 15(D+d)(mm)(D=cable outside diameter, d= nominal diameter of main conductor).



 Cable can be laid aerially, in trough, or underground







Model Type Specification: Model Type Specification of YD/T1173-2001 standard 1.Cu conductor Low-smoke zero-halogen polyolefin insulated category A flame-retardant flexible cable 2.Cu conductor Low-smoke zero-halogen polyolefin insulated and sheathed category a flame-retardant flexible cable 3.Cu conductor Low-smoke zero-halogen polyolefin insulated and sheathed steel-tape armored Category a flame--retardant flexible cable 4.Cu conductor Low-smoke zero-halogen polyolefin Insulated category A fire-resistant flexible cable 5.Cu conductor Low-smoke zero-halogen p0Iyolefln insulated and sheathed category A fire-resistant flexible cable 6.Cu conductor Low-smoke zero-halogen polyolefin insulated and sheathed steel-tape armored category a fl re--resistant flexible cable







Excellent Characteristics: Low-smoke zero-halogen characters complying with the requirement of GB/T17650-1998 and GB/T17651-1998 (1)conductivity≤ 10&mμ S/mm (2)pH≥ 4.3



(3)Smoking density penetration ratio≥ 60% Low--smoke zero-halogen flame-retardant flexible cable Flame-retardant properties of the cable can comply with the requirements specified in GB/T 18380.3-2001(IEC60332-3-22: 2000)for category A Low--smoke zero--halogen fire--resistant flexible cable Fire-resistant properties of the cable can comply with the requirements specified in GB/T 12666.







Correction factors of ampacity in air at different temperatures



Ambient Temperature 20 25 30 35 40 45
Correction factors 1.29 1.22 1.55 1.08 1.00 0.91















Correction factors of ampacity in Solid at different temperatures



Ambient Temperature 20 25 30 35 40
Correction factors 1.04 1.00 0.96 0.92 0.87















227 IEC01(BV),BV,BLV

Copper(aluminum) core PVC insulated cable(wire)

BVV,BLVV

Copper(aluminum) core PVC insulated and sheathed power cable

277 IEC02(RV),BV

Copper core PVC insulated flexible cable(wire)

227 IEC05(BV),BV

Copper core PVC insulated cable

227 IEC06(RV)

Copper core PVC insulated flexible cable

227 IEC07(BV-90)

Copper core PVC insulated heat-resisting (90°C) cable

227 IEC08(RV-90)

Copper core PVC insulated heat-resisting (90°C) interconnecting flexible cable

227 IEC10(BVV),BVV

Copper core PVC insulated and sheathed round cable

227 IEC42(RVB),RVB

Copper core PVC insulated flat interconnecting flexible cable

227IEC52(RVV)

or 227IEC53(RVV)

Copper core PVC insulated and sheathed round interconnecting flexible cable

BVR

Copper core PVC insulated flexible cable

RVS

Copper core PVC insulated and stranded interconnecting flexible cable

RVVB

Copper core PVC insulated and sheathed flat interconnecting flexible cable

AV

Copper core PVC insulated installing cable

AVR

Copper core PVC insulated flexible installing cable

AVP

Copper core PVC insulated and screened installing wire

RVVP

Copper core PVC insulated and sheathed screened flexible wire

ZA-BVR-105

Copper core flame-retardant (105°C) PVC insulated flexible cable

ZA-RV-105

Copper core flame-retardant (105°C) PVC insulated wire

RVV,ZA-RVV300/500V

Copper core PVC-insulated and sheathed (flame-retardant) flexible wire







227 IEC10(BVV),BVV

Copper core PVC insulated and sheathed round cable

227 IEC42(RVB),RVB

Copper core PVC insulated flat interconnecting flexible cable

227IEC52(RVV)

or 227IEC53(RVV)



Copper core PVC insulated and sheathed round interconnecting flexible cable

RVVB

Copper core PVC insulated and sheathed flat interconnecting flexible cable

ZA-BVR-105

Copper core flame-retardant (105°C) PVC insulated flexible cable

ZA-RV-105

Copper core flame-retardant (105°C) PVC insulated wire

RVV,ZA-RVV300/500V

Copper core PVC-insulated and sheathed (flame-retardant) flexible wire











PVC wire 450/750V

Nominal Section(mm2)

No.Dia. of Core(mm)

Max outer diameter(mm)

Conductor resistance at 20C(≤Ωkm)

0.5

1/0.8

2.4

36.0

0.75(A)

1/0.97

2.6

24.5

0.75(B)

7/0.37

2.8

24.5

1(A)

1/1.13

2.8

18.1

1(B)

7/0.43

3.0

18.1

BV 450/750V

1.5(A)

1/1.38

3.3

-

1.5(B)

7/0.52

3.5

-

2.5(A)

1/1.78

3.9

11.8

2.5(B)

7/0.68

4.2

11.8

4(A)

1/2.25

4.4

7.39

4(B)

7/0.85

4.8

7.39

6(A)

7/0.85

4.8

4.91

6(B)

7/1.04

5.4

4.91

10

7/1.35

7.0

3.08

16

7/1.70

8.0

1.91

25

27/2.04

10.0

1.20

35

27/2.52

11.5

0.868

50

19/1.78

13.0

0.641

70

19/2.14

15.0

0.443

95

19/2.52

17.5

0.320

120

37/2.03

19.0

0.253

150

37/2.25

21.0

0.206

185

37/2.52

23.5

0.164

240

61/2.25

26.5

0.125

300

61/2.52

29.5

0.100

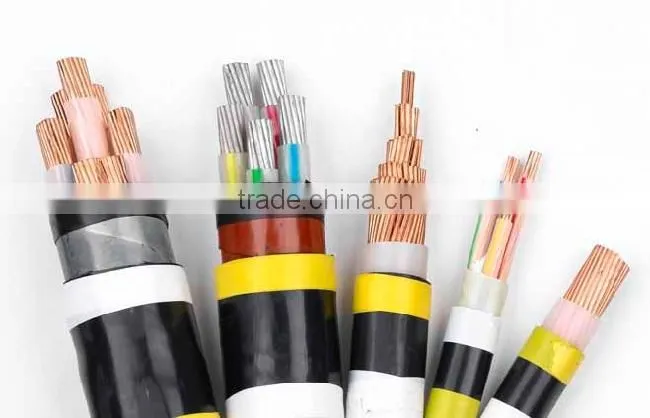

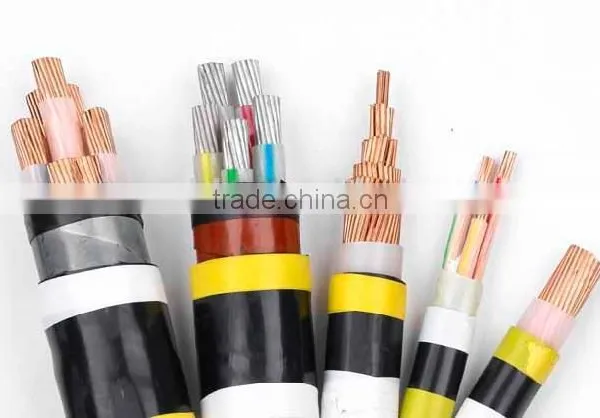

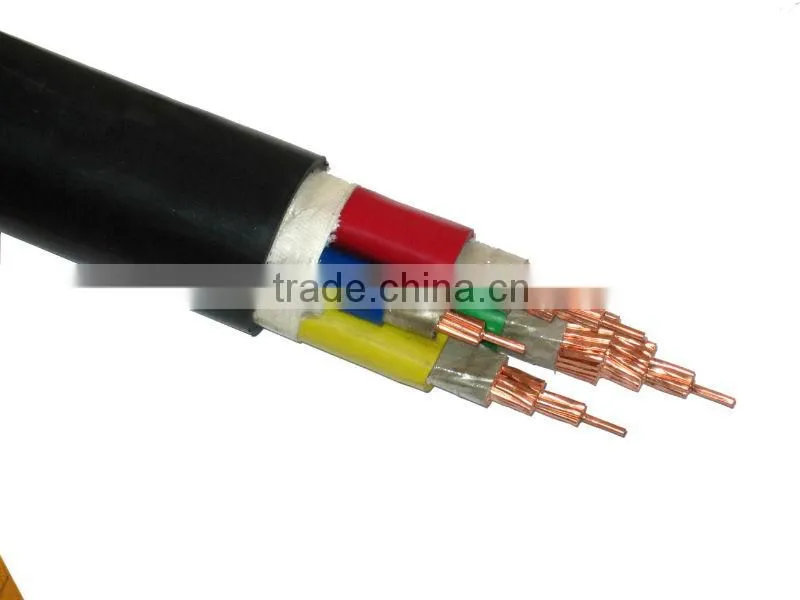

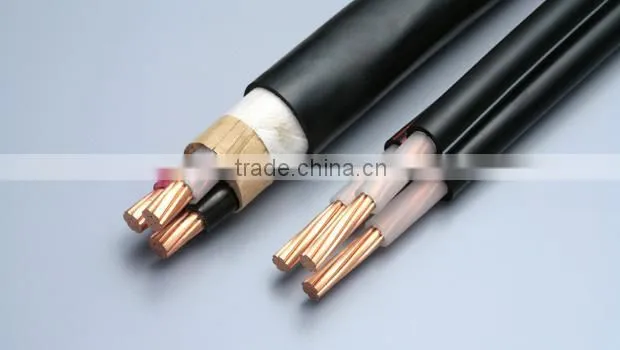

 Medium voltage 33KV XLPE Insulated Copper Core XLPE Power Cable 300mm2Medium voltage 33KV XLPE Insulated Copper Core XLPE Power Cable 300mm2Medium voltage 33KV XLPE Insulated Copper Core XLPE Power Cable 300mm2Medium voltage 33KV XLPE Insulated Copper Core XLPE Power Cable 300mm2Medium voltage 33KV XLPE Insulated Copper Core XLPE Power Cable 300mm2

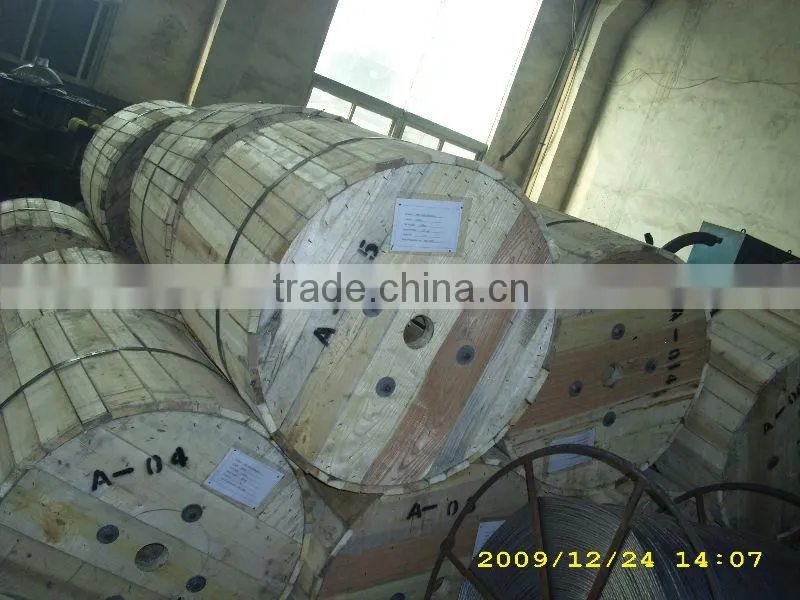

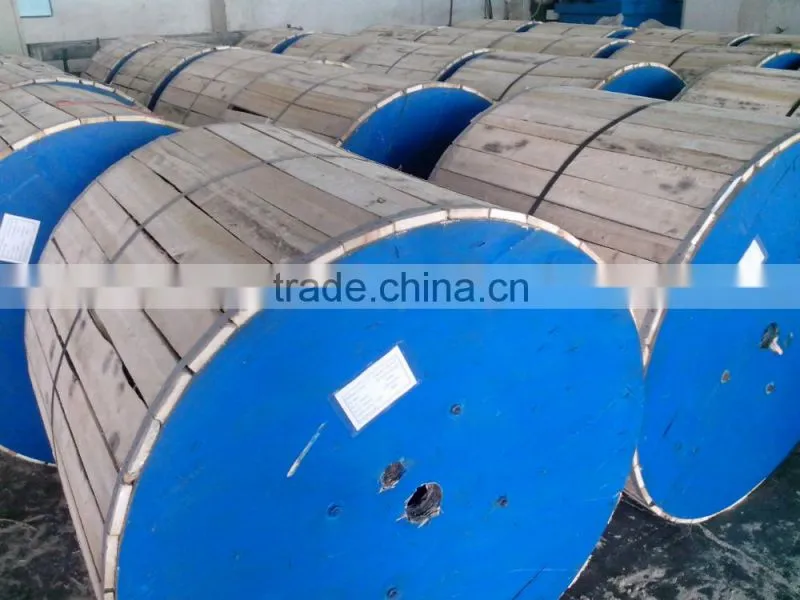

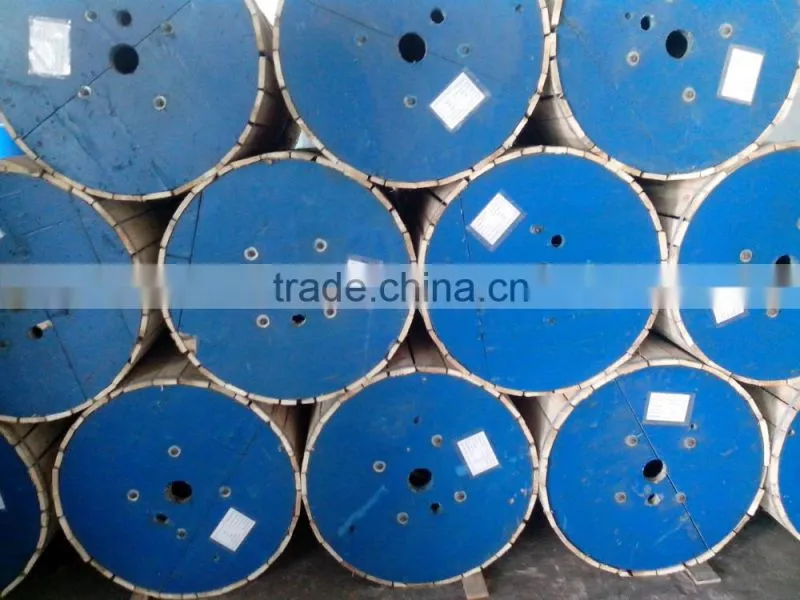

Packaging & Shipping



Medium voltage 33KV XLPE Insulated Copper Core XLPE Power Cable 300mm2Medium voltage 33KV XLPE Insulated Copper Core XLPE Power Cable 300mm2Medium voltage 33KV XLPE Insulated Copper Core XLPE Power Cable 300mm2

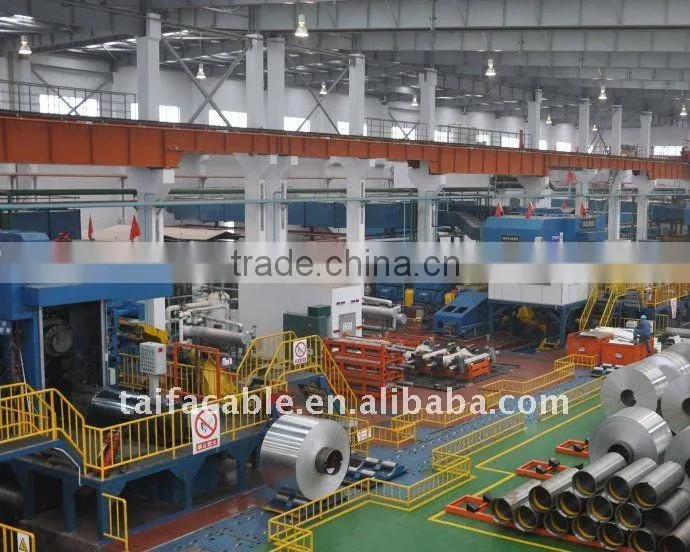

Company Information

Medium voltage 33KV XLPE Insulated Copper Core XLPE Power Cable 300mm2Medium voltage 33KV XLPE Insulated Copper Core XLPE Power Cable 300mm2





 Medium voltage 33KV XLPE Insulated Copper Core XLPE Power Cable 300mm2
