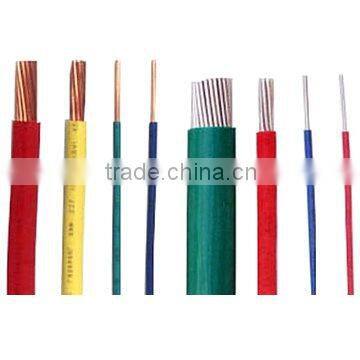

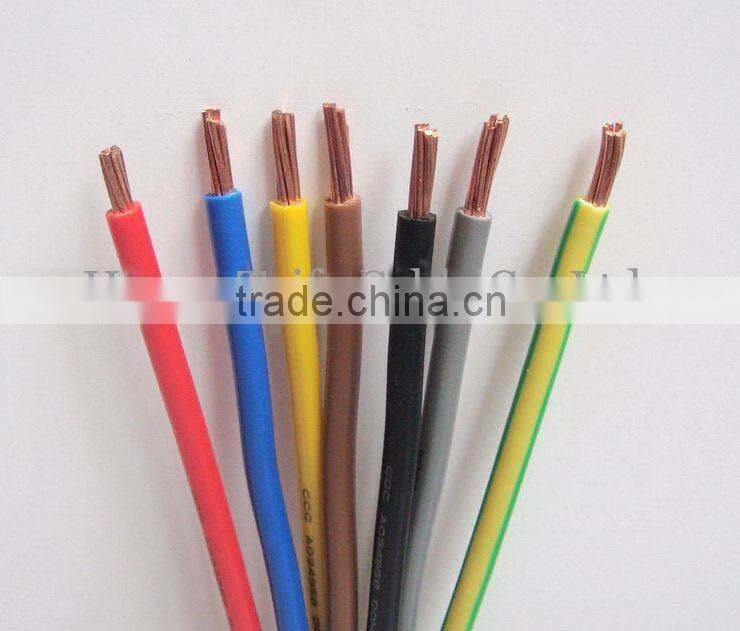

good quality and professional XLPE insulation hook up wire
Rated temperature:80oC
Rated voltage:300V
Reference standard:UL758,UL1581,CSA C22.2No.210.2
Solid or stranded ,tinned or bare copper conductor 30~16AWG
SR-PVC insulation , comply with ROHS environmental standard
Passes UL VW-1,CSA FT1 and JQA F-Mark flame test
Uniform insulation thickness to ensure easy stripping and cutting
For general purpose internal wiring of appliance
Flexible Cables
1.Flexible Cables in different technical specifications are available with us.
2.These cables have a contact construction, they are rugged, but flexible for industrial use and have high temperature insulation.
3.Our range of Multicore Flexible Cables can be availed in different types of insulation like Standard .
4.Heat resistant PVC up to105° C and Standard PVC Of FRLS, which finds varied application in the electrical industry.
5.Available in standard width, these multicore flexible cables are offered at competitive prices.
Features
1. Service Conditions for Flexible cables
This product is suitable for A.C voltage 450/750V or below domestic appliances,power-operated tlls and various portable electric equipments .
2. Performance Characteristics for Flexible cables
1) YZ model rated voltage U0/U is 300/500 V, YC model is 450/750 V .
2) Long time allow working temperature of wire core is not more than 60 .
3) W model cable has the property of durability , so it is suitable for outdoor work touching oil pollution .
4) ZR-model cable has the property of fire-resistance.
|
CONDUCTOR |
INSULATION |
MAX.COND. RESISTANCE Ω/km,20,DC |
DIELECTRIC STRENGTH VAC,1min |
|||
|
AWG |
CONSTRUCTION (No./mm) |
DIA. (mm) |
THICKNESS mm |
O.D. (mm) |
||
30 |
1/0.254 7/0.10 |
0.25 0.30 |
0.25 0.25 |
0.75 0.80 |
361 381 |
2,000 |
28 |
1/0.32 7/0.127 7/0.127OS-1* |
0.32 0.38 0.38 |
0.27 0.26 |
0.85 0.90 |
227 239 239 |
2,000 |
26 |
1/0.404 7/0.16 7/0.16 OS-1* |
0.40 0.48 0.48 |
0.25 0.26 |
0.90 1.00 |
143 150 150 |
2,000 |
24 |
1/0.511 7/0.203 7/0.203OS-1* |
0.51 0.61 0.61 |
0.25 0.25 0.25 |
1.00 1.10 |
89.3 94.2 94.2 |
2,000 |
22 |
1/0.643 7/0.254 7/0.254 OS-1* |
0.64 0.76 0.76 |
0.25 0.27 |
1.15 1.30 |
56.4 59.4 59.4 |
2,000 |
20 |
1/0.813 7/0.32 7/0.32OS-1* |
0.81 0.96 0.96 |
0.27 0.27 |
1.35 1.50 |
35.2 36.7 36.7 |
2,000 |
18 |
1/1.024 16/0.254 7/0.404OS-1* |
1.02 1.17 1.20 |
0.27 0.31 |
1.55 1.80 |
22.2 23.2 23.2 |
2,000 |
16 |
1/1.29 26/0.254 |
1.29 1.49 |
0.25 0.31 |
1.80 2.10 |
14.0 14.6 |
2,000 |
Note. OS-1*:Over-coated tinned stranded copper
