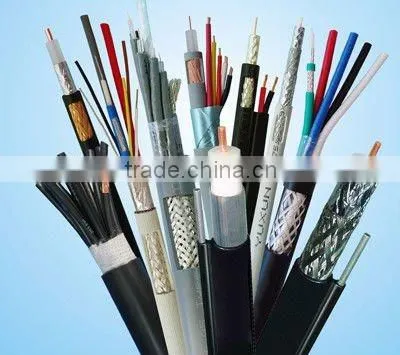

450/750V IEC Standard PVC Insulated and Sheathed Woven Shielded Multicore Flexible Control Cable
US$ 0.01 - 100
MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Taifa
Model Number:
control cable
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Steel Tape or Steel Wire Armored Control CableUS$ 0.8 - 100MOQ: 100 Meters -
Control CableUS$ 0.33 - 100MOQ: 100 Meters
-
0.45/0.75KV Control Cable/copper Core Pvc Insulated and Sheathed/control CableUS$ 0.5 - 100MOQ: 100 Meters
-
Low-voltage Cable,Flame-retardant Instrumentation CableUS$ 0.5 - 100MOQ: 100 Meters
-
Explosion-proof Control Cable IA-KVVRP 300/500V 20*0.5US$ 0.1 - 39.9MOQ: 500 Meters
Place of Origin
Henan, China
Brand Name
Taifa
Model Number
control cable
Insulation Material
PVC
Type
Low Voltage
Application
Other, Instrumentation
Conductor Material
Copper
Jacket
PVC
450/750V multicore Control Cable
Product Description
Standard: IEC, BS, ASTM, DIN
Rated Voltage: 450/750V
Construction:
1. Copper conductor2. PVC insulation3. PVC sheathed4. Copper wire woven shield/copper tape wrapped/unarmored/steel tape armored
Application:
Applied for AC rated voltage of and less than 450/750V control,pilot and protection circuit as signal,direction transmitting lines of electric instruments and automatic control system.
Operating Characteristics:
The bending radius of non-tape armored cable and braid shield structure flexible cable should not less than 6 times of the cable's outer diameter
The bending radius of tape armored or copper shield cable should not less than 12times of the cable's outer diameter
Production Range:
| Type | Nominal cross-section (mm2) | ||||||||
| 0.5 | 0.75 | 1.0 | 1.5 | 2.5 | 4 | 6 | 10 | ||
| Number of cores | |||||||||
| KVV | KYJV | - - | 2 ~61 | 2 ~14 | 2 ~10 | ||||
| KVVP | KYJVP | ||||||||
| KVVP2 | KYJVP2 | 4 ~61 | 4 ~14 | 4 ~10 | |||||
| KVVP3 | KYJVP3 | 7 ~61 | 4 ~61 | ||||||
| KVV22 | KYJV22 | ||||||||
| KVVR | KYJVR | 4 ~61 | - - | ||||||
| KVVRP | KYJVRP | 4 ~48 | |||||||
| Recommended number of cores:2,3,4,5,7,8,10,12,14,16,19,24,27,30,37,44,48,52 and 61. | |||||||||
Type of Cable:
| Type | Detailed Description of Type | Scope of utility | |||
| PVC insulated | XLPE insulated | Flame-retardant Type | |||
| PVC insulated | XLPE insulated | ||||
| KVV | KYJV | ZR-KVV | ZR-KYJV | PVC sheathed control cable | For laying indoors,in tunnels,or cable trench,or direct in ground |
| KVVP | KYJVP | ZR-KVVP | ZR-KYJVP | PVC sheathed copper wire braid shield control cable | For laying indoors,in tunnels,or cable trench, direct in ground,stationary places needing shield |
| KVVP2 | KYJVP2 | ZR-KVVP2 | ZR-KYJVP2 | PVC sheathed copper tape wrapped shield control cable | |
| KVVP3 | KYJVP3 | ZR-KVVP3 | ZR-KYJVP3 | PVC sheathed Al/Plastic wrapped shield control cable | |
| KVV22 | KYJV22 | ZR-KVV22 | ZR-KYJV22 | PVC sheathed double steel tape armored control cable | For laying indoors,in tunnels,or direct in ground,be able to bear external mechanical force and certain pulling force |
| KVVR | KYJVR | ZR-KVVR | ZR-KYJVR | PVC sheathed flexible control cable | For laying indoors,mobile place requiring softness (and shield) |
| KVVRP | KYJVRP | ZR-KVVRP | ZR-KYJVRP | PVC sheathed copper wire braid shield flexible control cable | |
| Remarks:w KYJV hen flame-retardant types to be identified ,the code ZR should be changed into ZA,AB,ZC. | |||||

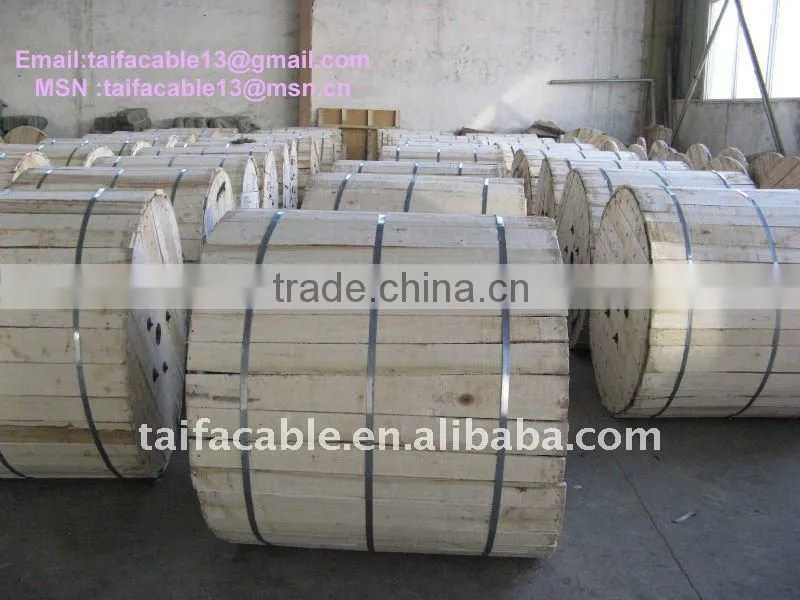

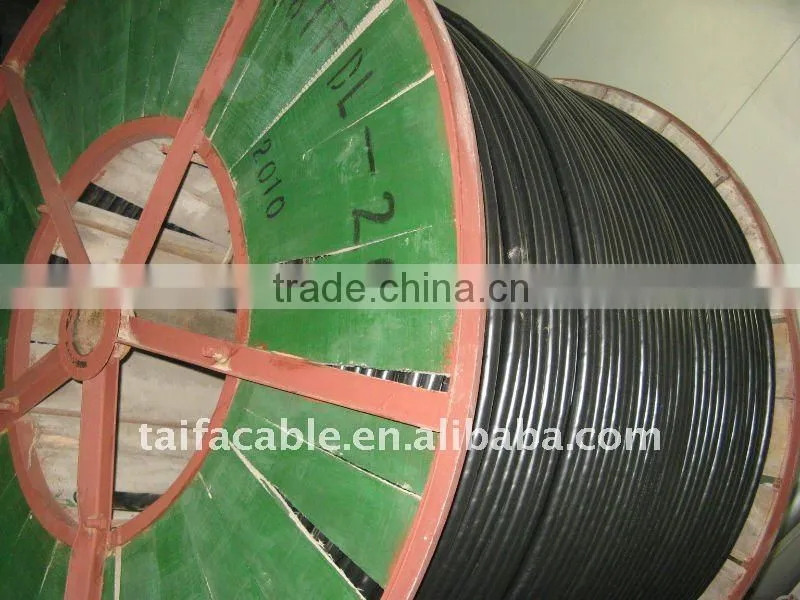

Packaging & Shipping
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2000
Factory Size
10,000-30,000 square meters
Total Employees
501 - 1000 People
