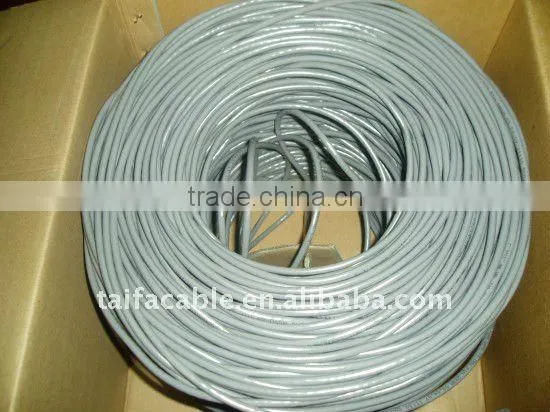

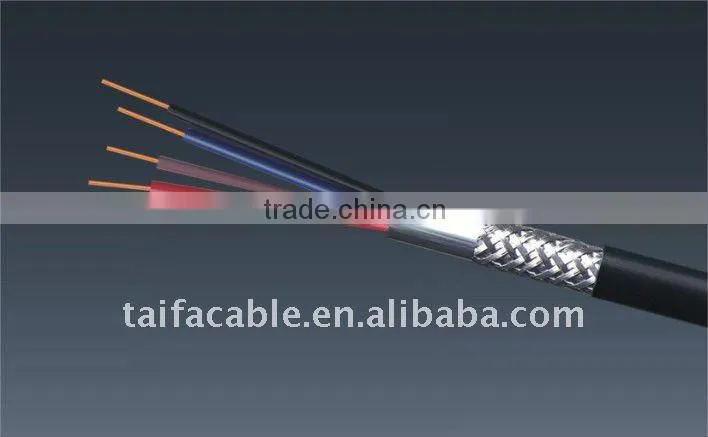

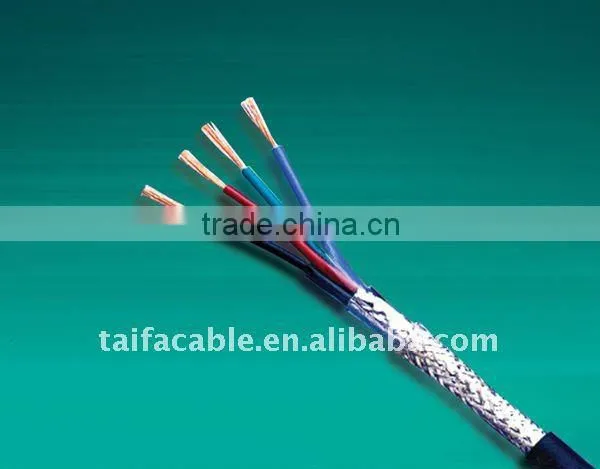

China manufacture CCA flexible RVV Cable 3*2.5mm RVV cable
1.Applications
in domestic areas, for weak mechanical actions, to feed light portable equipment. For signaling and command. For home appliances, machine tools, electric tools for power supply.
2.Construction

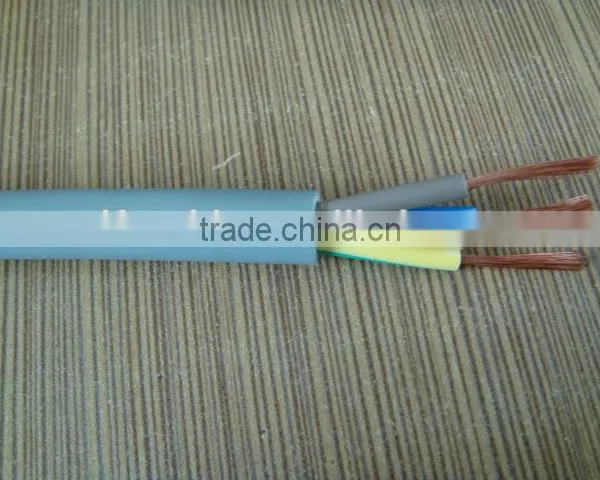

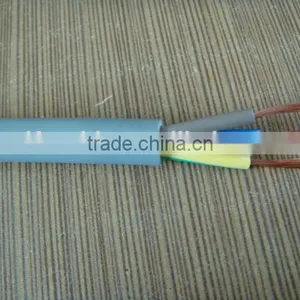

Stranded Bare Copper Conductor, PVC Insulated and PVC Sheathed
3.Number Of core
1 core, 2 core, 3 core, 4 core, 5 core
4.Packing
100m, 500FT, 200m, 1000FT, 500m, wrapped with PE, others as customer's request.
5.Technical Data
Temperature Range: -20°C to +70°C
Max Working Voltage: 300/500V, 450/750V
Max Current: 1 amp per core
Data Sheet
Model No. |
Conductor |
Insualtion |
Jacket |
||||
Cores × Nom. Area |
Max. Resistance at 20°C |
Thickness |
Min. Resistance at 70°C |
Thickness |
Min. Dia. |
Max. |
|
mm² |
MΩ/km |
mm |
MΩ/km |
mm |
mm |
mm |
|
RVV2×0.75 |
2×0.75 |
26 |
0.6 |
0.011 |
0.8 |
6 |
7.6 |
RVV2×1.0 |
2×1.0 |
19.5 |
0.6 |
0.01 |
0.8 |
6.4 |
8 |
RVV2×1.5 |
2×1.5 |
13.3 |
0.7 |
0.01 |
0.8 |
7.4 |
9 |
RVV2×2.5 |
2×2.5 |
7.98 |
0.8 |
0.009 |
1 |
8.9 |
11 |
RVV3×0.75 |
3×0.75 |
26 |
0.6 |
0.011 |
0.8 |
6.4 |
8 |
RVV3×1.0 |
3×1.0 |
19.5 |
0.6 |
0.01 |
0.8 |
6.8 |
8.4 |
RVV3×1.5 |
3×1.5 |
13.3 |
0.7 |
0.01 |
0.9 |
8 |
9.8 |
RVV3×2.5 |
3×2.5 |
7.98 |
0.8 |
0.009 |
1 |
9.6 |
12 |
RVV4×0.75 |
4×0.75 |
26 |
0.6 |
0.011 |
0.8 |
6.8 |
8.6 |
RVV4×1.0 |
4×1.0 |
19.5 |
0.6 |
0.01 |
0.9 |
7.6 |
9.4 |
RVV4×1.5 |
4×1.5 |
13.3 |
0.7 |
0.01 |
1 |
9 |
11 |
RVV4×2.5 |
4×2.5 |
7.98 |
0.8 |
0.009 |
1.1 |
10.5 |
13 |
RVV5×0.75 |
5×0.75 |
26 |
0.6 |
0.011 |
0.9 |
7.4 |
9.6 |
RVV5×1.0 |
5×1.0 |
19.5 |
0.6 |
0.01 |
0.9 |
8.3 |
10 |
RVV5×1.5 |
5×1.5 |
13.3 |
0.7 |
0.01 |
1.1 |
10 |
12 |
RVV5×2.5 |
5×2.5 |
7.98 |
0.8 |
0.009 |
1.2 |
11.5
|
|
