Overhead ACSR Bare Aluminum Conductor steel reinforced
- 5000 Kilometer / Kilometers per Month
- Qingdao
- T/T Credit Card
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Place of Origin: | Henan, China | Brand Name: | TAIFA | Model Number: | ACSR |
Insulation Material: | Other, none | Type: | Low Voltage | Application: | Overhead |
Conductor Material: | Aluminum | Jacket: | Other, none |
Product Description

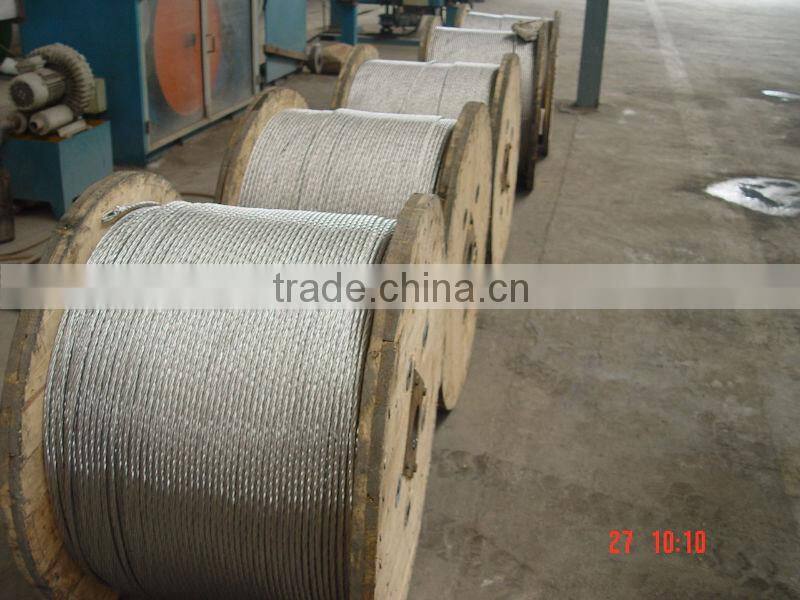

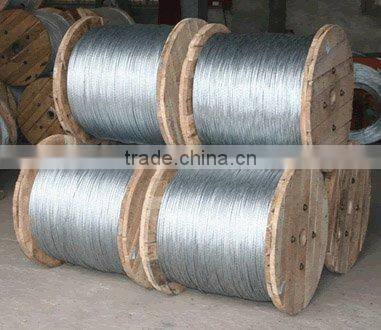

Overhead ACSR Bare Aluminum Conductor steel reinforced
ACSR conductor widely used in power transmission lines with various voltage levels. since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical teatures exist.
Specification:
(1) all aluminium conductor (AAC)
(2) all aluminimum alloy conductor(AAAC)
(3) aluminum conductor steel reinforced (ACSR)
(4) anti-corrosion type ACSR
(5) aluminimum conductor aluminimum clad steel reinforced(ACSR/AW)
(6)rear earth aluminimum conductor steel reinforced(ACSR/RE)
(7)aluminimum conductor aluminimum alloy reinforced(ACAR)
Applications Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

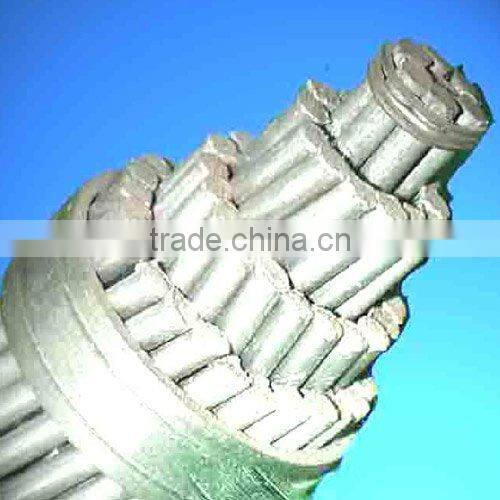

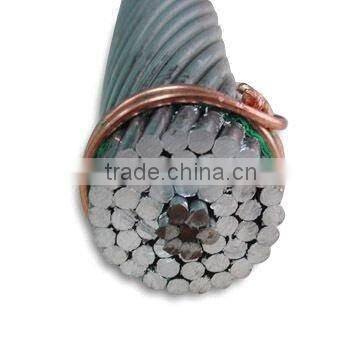

Construction Aluminum alloy 1350-H-19 wires, concentrically stranded about a steel core. Core wire for ACSR is available with class A, B, or C galvanizing; ""aluminized"" aluminum coated (AZ); or aluminum-clad (AW) - please see our ACSR/AW spec for more information. Additional corrosion protection is available through the application of grease to the corer or infusion of the complete cable with grease.
Specifications ACSR bare conductor meets or exceeds the following ASTM specifications:
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes B-231 Aluminum Conductors, Concentric-Lay-Stranded B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR) B-341 Aluminum-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ) B-502 Aluminum-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AW) B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ) B-500 Zinc Coated and Aluminum Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced (ACSR)
Code name | Nominal Al. Area | Stranding and Wire diameter | Sectional area of Al. | Total sectional area | Overall diameter | Calculated Breaking Load | Calculate D.C Resistance at 20 | Final modulus of elasticity | ||
mm2 | Al. | Steel | mm2 | mm2 | mm | daN | /km | hbar | ||
Mole | 10 | 6/1.50 | 1/1.50 | 10.52 | 4.50 | 43 | 414 | 2.706 | 7900 | |
Squirrel | 20 | 6/2.11 | 1/2.11 | 20.94 | 6.33 | 85 | 788 | 1.368 | 7900 | |
Gopher | 25 | 6/2.36 | 1/2.36 | 26.24 | 7.08 | 106 | 961 | 1.093 | 7900 | |
Weasel | 30 | 6/2.59 | 1/2.59 | 31.61 | 7.77 | 128 | 1146 | 0.9077 | 7900 | |
Fox | 35 | 6/2.79 | 1/2.79 | 36.66 | 8.37 | 149 | 1320 | 0.7822 | 7900 | |
Ferret | 40 | 6/3.00 | 1/3.00 | 42.41 | 9.00 | 172 | 1520 | 0.6766 | 7900 | |
Rabbit | 50 | 6/3.35 | 1/3.35 | 52.88 | 10.05 | 214 | 1835 | 0.5426 | 7900 | |
Mink | 60 | 6/3.66 | 1/3.66 | 63.18 | 10.98 | 255 | 2180 | 0.4545 | 7900 | |
Shunk | 60 | 12/2.59 | 7/2.59 | 63.27 | 12.95 | 465 | 5300 | 0.4567 | 10500 | |
Beaver | 70 | 6/3.99 | 1/3.99 | 74.82 | 11.97 | 302 | 2570 | 0.3825 | 7900 | |
Horse | 70 | 12/2.79 | 7/2.79 | 73.37 | 13.95 | 538 | 6120 | 0.3936 | 10500 | |
Racoon | 75 | 6/4.10 | 1/4.10 | 79.20 | 12.30 | 320 | 2720 | 0.3622 | 7900 |
