Specification:

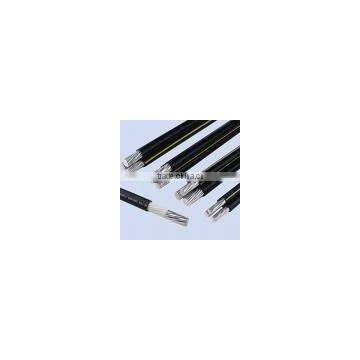

superior quality duplex service drop cable aerial bundle cable
1. Applications
This conductor is to supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75 maximum.
2. Construction
Concentric strand or compressed 1350-H19 conductor, polyethylene or crosslinked polyethylene insulation, concentric strand AAC, ACSR, or 6201 alloy neutral messenger.
3. Standards
ASTM B-230, B-231, B-232 and B-399
ICEA S-76-474
4. The Diagram of Structure:
NOTE: Designated Sizes are ACSR 6/1 Diameter Equivalent Resistivity Per ASTM-B-399 for 6201.

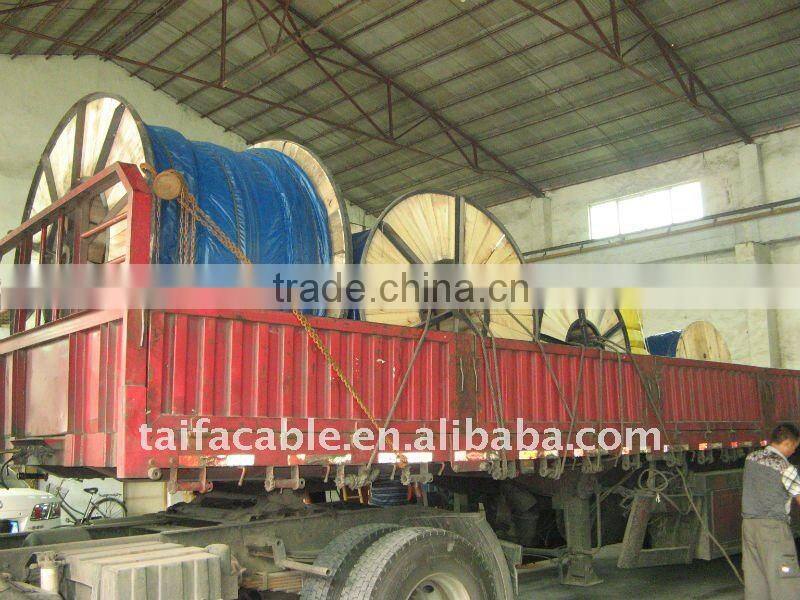

Conductor temperature of 75oC; Ambient temperatures of 40 oC; Emissivity 0.9; 2ft/sec. Wind in sun. Packaging: Available in 500ft coils and in long lengths on reels.
The data is approximate and subject to normal manufacturing tolerances.
To determine current ampacity by conductor size, please consult The National Electric Code, latest edition.
