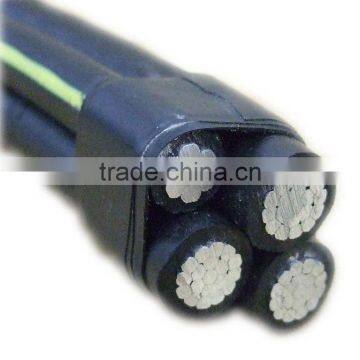

Aluminium conductor, xlpe insulated aerial bundled cable
We can produce ABC cable as per IEC,ASTM Standard and other international standard.ABC Cable is our main export cable.
It has: Duplex cable, Triplex cable, Quadruplex cable....
1. Applications
To supply power from the utilitys lines to the consumers weatherhead.For service at 600 volts or less(phase to phase) at a conductor temperature of 75oC maximum for polyethylene insulation or 90 oC maximum for crosslinked insulation.
2. Construction
Concentric strand or compressed 1350-H19 conductor,polyethylene or crosslinked polyethylene insulation,concentric strand AAC,ACSR or 6201 alloy neutral messenger.
3. Standards
ASTM B-230,B-231,B-232 and B-339
ICEA S-76-474
4. The Diagram of Structure:
Code Name |
Phase Conductor |
Bare Neutral Messenger |
Weight Per 1000ft (lbs) |
Ampacity(amps) |
||||||
Size AWG |
Stranding |
Insulation Thickness(mls) |
Size AWG |
Stranding |
Breaking Strength(lbs) |
XLPE |
Poly |
XLPE |
Poly |
|
6201 ALLOY NEUTRAL-MESSENGER | ||||||||||
Minex |
6 |
Solid |
45 |
6 |
7 |
1,110 |
106.6 |
102.9 |
85 |
70 |
Hippa |
6 |
7 |
45 |
6 |
7 |
1,110 |
113.2 |
105.7 |
85 |
70 |
Prawn |
4 |
Solid |
45 |
4 |
7 |
1,760 |
158.4 |
154.1 |
115 |
90 |
Barnacles |
4 |
7 |
45 |
4 |
7 |
1,760 |
168.3 |
158.2 |
115 |
90 |
Shrimp |
2 |
7 |
45 |
2 |
7 |
2,800 |
253.7 |
239.7 |
150 |
120 |
Gammarus |
1/0 |
7 |
60 |
1/0 |
7 |
4,460 |
411.7 |
386.0 |
205 |
160 |
Leda |
1/0 |
19 |
60 |
1/0 |
7 |
4,460 |
402.7 |
386.0 |
205 |
160 |
Dungenese |
2/0 |
7 |
60 |
2/0 |
7 |
5,390 |
506.8 |
476.3 |
235 |
185 |
Cyclops |
2/0 |
19 |
60 |
2/0 |
7 |
5,390 |
495.3 |
476.3 |
235 |
185 |
Dlustra |
3/0 |
19 |
60 |
3/0 |
7 |
6,790 |
611.4 |
589.1 |
275 |
215 |
Lepas |
4/0 |
19 |
60 |
4/0 |
7 |
8,560 |
757.1 |
730.5 |
315 |
245 |
6201 ALLOY REDUCED NEUTRAL-MESSENGER | ||||||||||
Artemia |
4 |
Solid |
45 |
6 |
7 |
1,110 |
141.4 |
137.1 |
115 |
90 |
Crab |
4 |
7 |
45 |
6 |
7 |
1,110 |
151.3 |
141.2 |
115 |
90 |
Solaster |
2 |
7 |
45 |
4 |
7 |
1,760 |
226.6 |
212.6 |
150 |
120 |
Sandcrab |
1/0 |
7 |
60 |
2 |
7 |
2,800 |
368.8 |
343.1 |
205 |
160 |
Echinus |
1/0 |
19 |
60 |
2 |
7 |
2,800 |
358.8 |
343.1 |
205 |
160 |
Crayfish |
2/0 |
7 |
60 |
1 |
7 |
3,530 |
452.6 |
422.5 |
235 |
185 |
Sipho |
2/0 |
19 |
60 |
1 |
7 |
3,530 |
441.0 |
422.5 |
235 |
185 |
Fulgar |
3/0 |
19 |
60 |
1/0 |
7 |
4,460 |
543.4 |
521.1 |
275 |
215 |
Arca |
4/0 |
19 |
60 |
2/0 |
7 |
5,390 |
671.2 |
644.6 |
315 |
245 |
