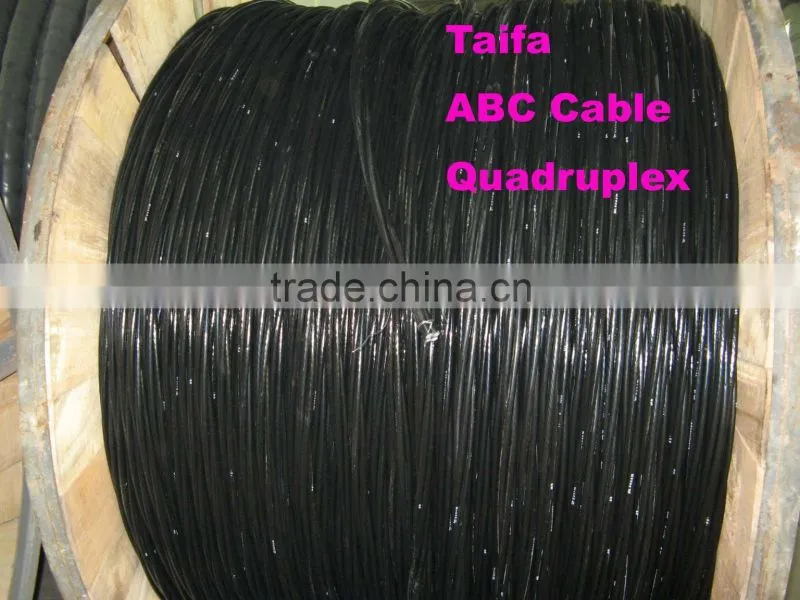

Help CenterAerial Bundled Cable/ABC Cable/service Drop Cable
Related Products
-
Aerial Bundle Cable ABC Cable NFA2X CableUS$ 0.11 - 99.98MOQ: 10 Kilometers -
Quadruplex Low Voltage Overhead ABC CableUS$ 0.11 - 99.98MOQ: 10 Kilometers
-
Good Selling Service Drop ABC Cable(aerial Bundled Cable)/overhead CableUS$ 0.11 - 99.98MOQ: 10 Kilometers
-
High Recommended Superb Quality Good Service Insulated Aerial Bundled CableUS$ 0.11 - 99.98MOQ: 10 Kilometers
-
Aluminum Cables and Aluminium Conductor Insulated Overhead Cable WireUS$ 0.11 - 99.98MOQ: 1000 Meters
Specifications
Standard : IEC,ASTM, BS,DIN,JIS
1.with more than 20-year experiance
2.fast delivery and safe package
3.strict in-line inspecton in each level
Application
It is used to transmit and distribute power in power transmission and distribution system of 1kV. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable.
Characteristics:
To be used at voltages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75 for polyethylene insulated conductors or 90 for crossliked polyethylene(XLPE) insulated conductors.
Partical technical data:
Core* Section area mm2 |
Number of core/diameter mm |
Thickness of the insulation |
The resistance of the conductor at 20°C ≤Ω/km |
Reference weight kg/km |
|
Main core |
The fourth core |
||||
3*4+1*2.5 |
1/2.25+1/1.78 |
1.0 |
1.0 |
7.41 |
48.3 |
3*6+1*4 |
1/2.76+1/2.25 |
1.0 |
1.0 |
4.61 |
95.5 |
3*10+1*6 |
7/1.35+1/2.76 |
1.0 |
1.0 |
3.08 |
141.2 |
3*16+1*10 |
7/1.70+7/1.35 |
1.2 |
1.2 |
1.91 |
215.3 |
3*25+1*16 |
7/2.14+7/1.70 |
1.2 |
1.2 |
1.20 |
289.1 |
3*35+1*25 |
7/2.52+7/2.14 |
1.2 |
1.2 |
0.868 |
382.4 |
3*50+1*35 |
7/3.00+7/2.52 |
1.4 |
1.4 |
0.614 |
526.0 |
3*70+1*50 |
19/2.14+7/3.00 |
1.4 |
1.4 |
0.443 |
655.0 |
3*95+1*70 |
19/2.52_19/2.14 |
1.6 |
1.6 |
0.320 |
886.6 |
3*120+1*95 |
37/2.03+19/2.52 |
1.6 |
1.6 |
0.253 |
1075.7 |
3*150+1*120 |
37/2.52+37/2.03 |
1.8 |
1.8 |
0.206 |
1320.8 |
Package & Delivery

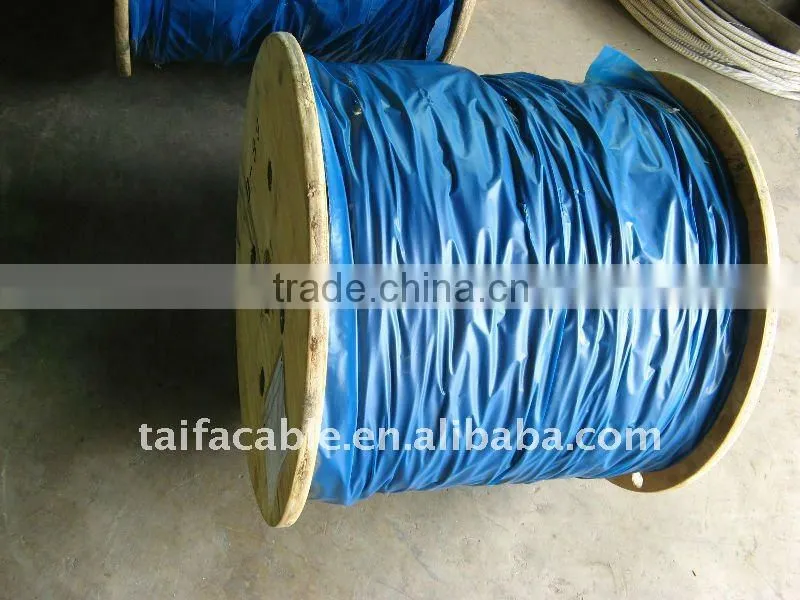

Wooden drums seaworthy or according to your requirements
Delivery within 15 working days
