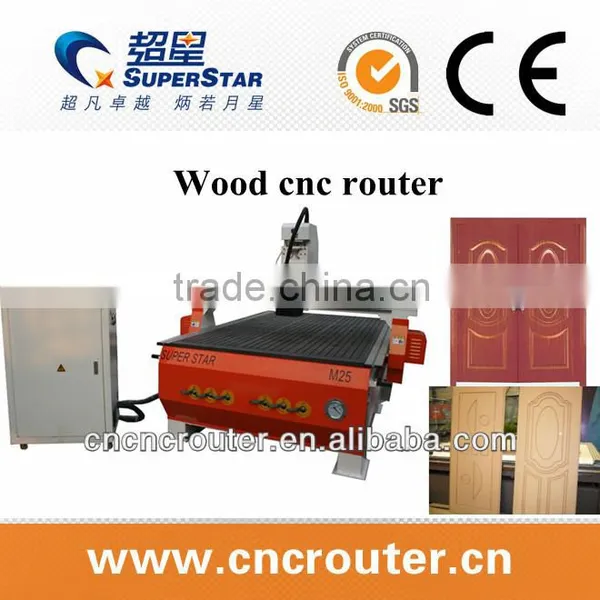

Help CenterChinese HIgh Quality 1325 Wood Chiseling Machine
Related Products
-
Chinese HIgh Quality Wood Chisel Machine of Model 1325US$ 1,666 - 20,000MOQ: 1 Set -
Small 6060 Engraver Machine for Nometal MaterialUS$ 1,000 - 2,300MOQ: 1 Set
-
Small Engraver Machine for Nometal MaterialUS$ 1,600 - 10,000MOQ: 1 Set
-
Hot Sale Cnc Wood Engraving Machine From ManufacturerUS$ 3,666 - 8,999MOQ: 1 Set
-
3d Wood Carving Machine CNC Router Also Can Engrave the Aluminum With TankUS$ 1,666 - 20,000MOQ: 1 Set
Techinical parameter
Model |
M25 |
Working size |
1300*2500*200mm |
Body structure |
Steel structure |
Working table |
vacuum table with vacuum pump (option: T-slot&clamp table vacuum table, or vacuum and T-slot clamp |
Working accuracy |
±0.05mm |
Repositioning accuracy |
±0.05mm |
Traveling speed |
50m/min |
Working speed |
25m/min |
spindle |
4.5 KW water cooling (option:HSD or Domestic best quality air cooled spindle) |
Spindle rotary speed |
0-24000rpm |
Spindle swiveling degree |
0~±90° |
Control system |
DSP(Option:Nc-studio (computer control) |
driver |
MIddle peed M860 Of Chinese best brand Option:High speed JIEMEIKANG 2260 or LEADSHINE2278 |
motor |
Stepper(option:Chinese servo ,and TAIWAN Delta servoor Japan Yaskawa servo and Panasonic servo) |
Transmission mode |
Taiwan TBI square guide rail for XYZ axis, gear wheel for XY axis, ball screw for Z axis(Option:round guide rail) |
Inverter: |
provide |
|
|
Working voltage |
AC380V/50HZ or 60Hz/220v |
Max. power consumption(without spindle) |
1.84KW |
Command language |
G-code,*u00,*mmg,*plt |
Software |
Type3 or Wentai |
Cutters |
10 pieces with diameter of 6 and 12.7 |
Collets |
2 pieces |
Dust collector |
3kw double bags |
|
|
Machine weight |
1000kg |
Packaging Measure |
370cm*210cm*195cm |
Applicable material
APPLICATIONS
Furniture:ideally suitable for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.
Other wooden products: stereo box, computer desk, musical instruments, etc.
Well-suited for processing panel, insulating materials, plastic, epoxy resin, carbon mixed compound, etc.
Decoration: acrylic, PVC, density board, stone, organic glass, soft metals like aluminum and copper, etc.
machine parts

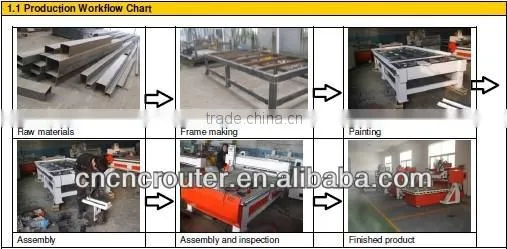

process line

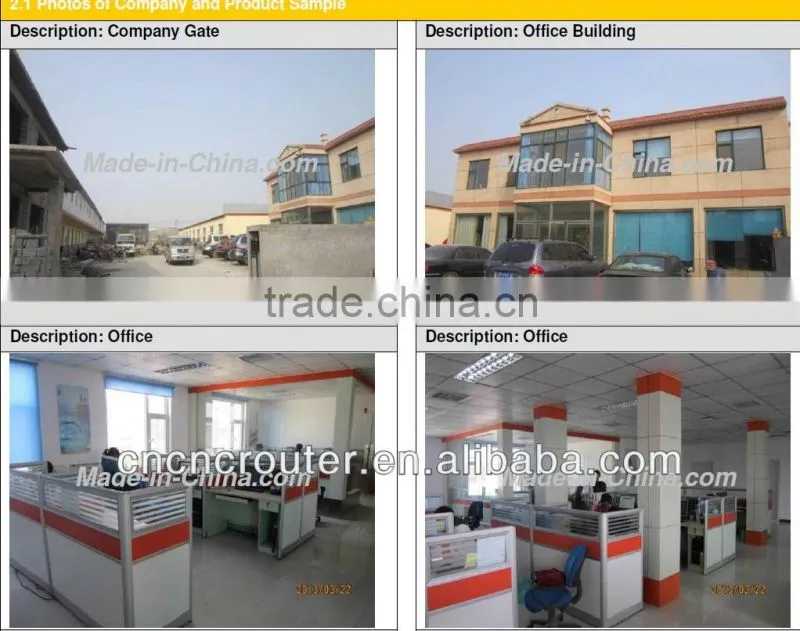

our factory
