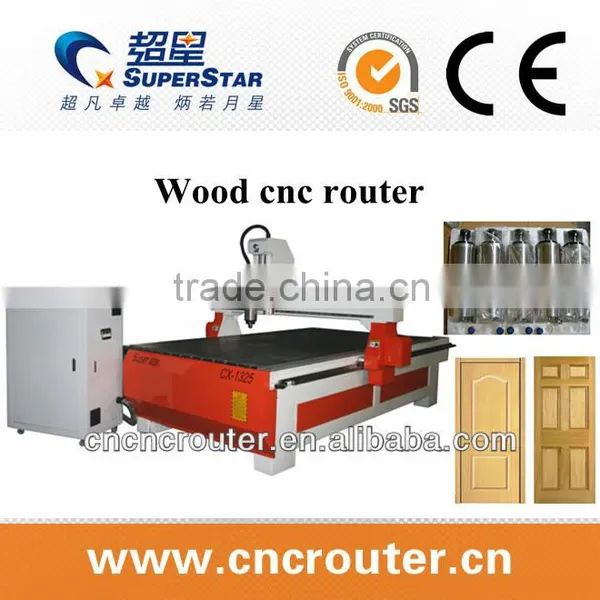

Hot Sale Cnc Wood Engraving Machine From Manufacturer

 Technical Parameter:

• MachineCertificate:CEstandard,ISO
• X.Y.Z working size:1300mm x 2500mm  x 200 mm
• Tablesize:1450*3000mm
• Tablematerialandstructure:heavy  duty structure
• Workingtable:Vacuum or  T-slottable (doubleusewith vacuum tablea
•  Dry type vacuum pump: 5.5KW Tongyou, dry-type oil-free air coolingvacuumpump,2 sets for the whole table or 5.5kw water cooling pump
• Dustmetal/plasticdebriscollector: 3kW double  bag  dust  collector  system( Keep work table clean and good for the worker’s healthwhen process the materials)
• X Y structure gear: Taiwan  HIWIN#25square Linear  guide, & gear transmissio(has fast tool changing speed,higher  precision,lower noise)
• Z structure gear: TaiwanTBI ball screw transmission
• Processing  precision:0.05mm
• Reposition   precision:0.02mm
• Max  engraving   speed: 25m/min (depending on the processingmaterial)
• Max   cuttingspeed:15m/min(depending on the processing  material)(If  you  make hole on Aluminum, the speed is about  5-8m/min  with excellent performance)
• Spindle: 4.5kw water cooling spindle
• Spindle   Rotating   speed:24000rpm
• Spindle   collets:4
• Inverter: Taiwan

               3- axis control motor and driver: Chinese best brand stepper

• Voltage:AC 380v,3 phase , 50/60HZ
• Controlsystem:DSP and usb connect
• Software:Type3/Artcam
• CommandLanguage:G Code
• Coolingtype:water cooling

• Packagingsize:,320*205*190cm
• Netweight:850kgs
• Grossweightwithpackaging:1000kgs

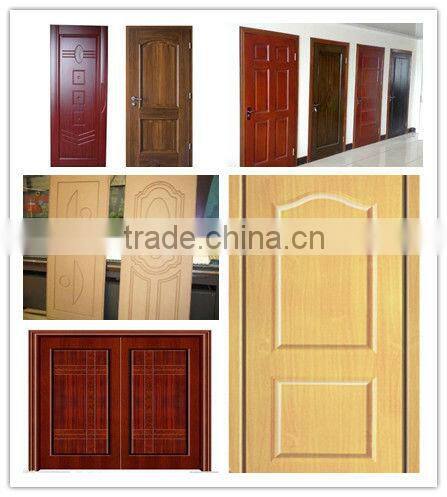

samples

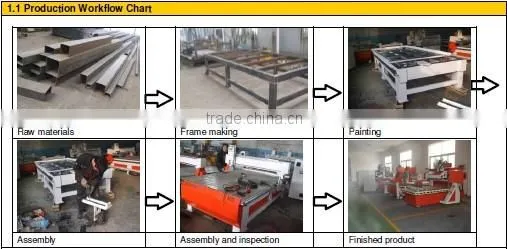

Producing process

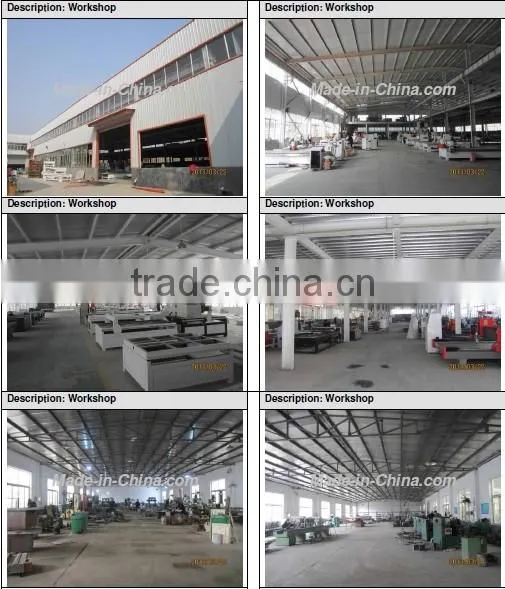

workshop

Thank you for your kind inquiry!
