Home > Products > 4-axis & styrofoam carving machine > the superstar styroform machine with lightweight

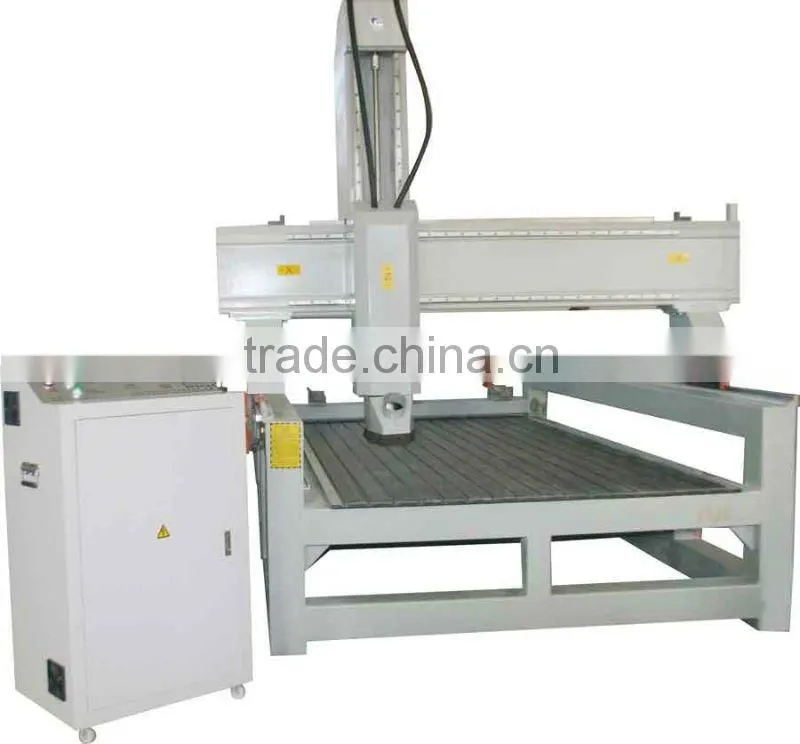

the superstar styroform machine with lightweight
- 100 Set / Sets per Month
- qingdao
- T/T
Product Details
Place of Origin: | Shandong, China | Brand Name: | superstar, SUPERSTAR | Model Number: | CX1325 |
Product Description
Specifications
superstar machine:stepper,spindle rotating speed:24000rpm,The above type to dub in the water
the superstar styroform machine with lightweight:
Features:
1. Imported widen square-shaped orbit, two-line sliding track, heavy bearing, high precision and high power.
2. Z working area can reach up to 750mm, extensive processing area, suitable for the large thick materials processing.
3. Intelligent anti-transgress-process protection system. This function can prevent machine from crashing when the design zone is beyond the process zone.
4. Intelligent processing, traveling and cutting speed control. It can increase the efficiency, so improves the quality of finished products.
Application:
This molds is mainly used for the following two industrial fields.
Firstly, molds industrial: It engraves all kinds of large nonmetallic molds, especially automotive foam molds, wooden ships molds, aviation and train wood molds.
Secondly, musical instrument industry: Engrave 3-D large instruments and shaping
Technical Specifications:
X working area | 1300mm |
Y working area | 2500mm |
Z working area | 750mm |
Table size | 1300×2500mm |
X Y Z travelling positioning accuracy | ±0.05mm |
X Y Z repositioning positioning accuracy | |
X Y Z structure | X Y gear wheel, Z ball screw |
Max. rapid travel rate | ≥16000mm/min |
Max. working speed | ≥10000mm/min |
Spindle power motor | 7.5KW |
Spindle speed | 100-10000r/min |
Drive system | Servo/stepper |
Working voltage | AC380V/50HZ |
Command language | G-code ,F/S |
