Specifications
1)CNC Angle Drilling Line2)Ideal equipment for Transmission Tower & Telecommunication Tower
3)CE,ISO9001:2008

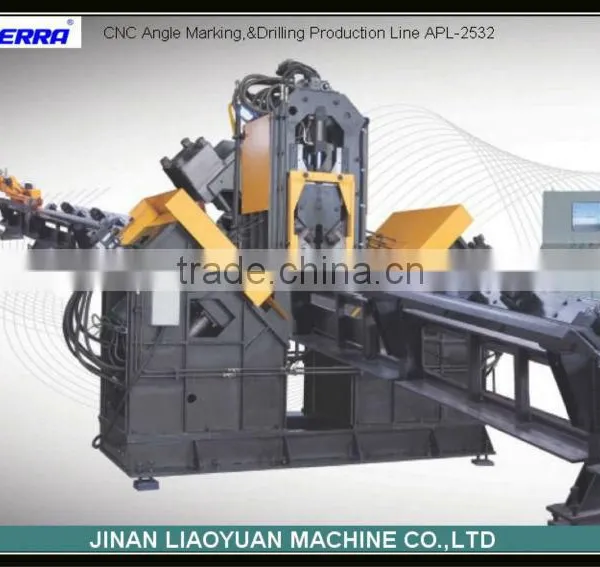

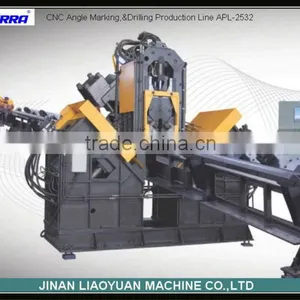

CNC High-speed Angle Drilling& Marking Machine for Tower and Telecommunication Tower
ITEM: APL-2532
Detailed Product Information:
1. CNC High-speed Angle Drilling& Marking Line for Tower and Telecommunication Tower
2.High efficiency and easy program
3.ISO9001:2008
Product details:
CNC Angle marking&Drilling Production line-APL2532 are detailed as follow:
As a factory,we will give you the highest quality and the competitive price.
We are looking for the agent for marking machine all over the world.
Features
1) The machine is professional automatic equipment for marking and drilling of angle steel.
2) With CNC and serve motor it achieves high efficiency and stable working accuracy
3) The main hydraulic,pneumatic and electrical elements are all imported from Germany,Japan Italy South Korea, etc.
4) Easy programming. The operator can use the automatic data from software directly. Friendly Computer interface can show workpiece’s figure, easy for operation.
Advantages
1) Rotation speeds of all spindles are stepless adjustable realized by frequency converter. Feeding speed is also stepless adjustable realized by flow control valves. Rapid feed, working feed and rapid back of drilling spindles can be automatically converted.
2) There is a marking unit in the drilling line. Marking stadia can be preset conveniently.
3) Cooling system with automatic circling is adopted to prolong the life of drills.
4) Machining program can be generated automatically in computer as long as operator inputs the dimensions of workpiece which can be conveniently stored, called up, displayed, and communicated according to the different workpieces.
5) Direct transfer of CAD/CAM.
6) Equipped with Self-diagnostic function.
Main Technical Specifications
Model Number |
APL-2532 |
Function |
Drilling & Marking |
Angle size |
140×140×10~250×250×32mm |
Material |
Q235A or 16Mn |
Nominal marking force |
1040KN |
No. of character groups |
1 |
Dimension of character |
14×10×19 |
Number of drills on each side |
3 |
Main shaft speed |
180-560/(r/min)(stepless adjustable) |
Diameter of drilling hole |
Φ17.5~Φ40(mm) |
Drilling main axis travel |
40—240(mm) |
Number of CNC axis |
3 |
Angle steel feeding speed |
40m/min |
Drawling Shown As Below:
