Specifications
cnc punching shearing machineFactory built in 1991
ISO9001:2008

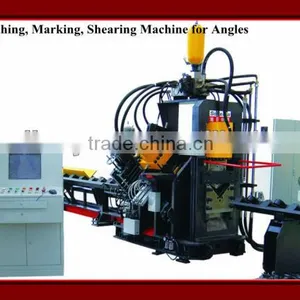

Cnc Punching,Marking,Shearing Machine for Angles
HOT Product!! Cnc Punching,Marking,Shearing Machine for Angles
Detailed Product Information:
1. HOT Product!! Cnc Punching,Marking,Shearing Machine for Angles
2.Factory built in 1991
3.ISO9001:2008
4.Angle size: 63x63x4-200x200x20
Jinan Liaoyuan Machine Co.,Ltd is a fast growing company dedicate to offer Iron tower and steel struction equipment and Win-Door Machinery
Product details:
Cnc Punching,Marking,Shearing Machine for Angles are detailed as follow:
Super quality! Lowest price!! Best service!!!
ITEM: APL-2020
This Series production lines are professional automatic equipments for typing,marking,punching and cutting if angle steel of
electric power and telecommnucaiton angle steel tower. Processing Size: Steel type L63X63X4,length with 16M. It includes 6 parts:
Material-applying parts,feeding part,principal part, finished production conveyor part, hydraulic power part,electrical control part.
Equipment Features:
1) CNC controll, servo motor drive and hydraulic power offer high efficiency and stable working accuracy.
2) Key hydraulic pneumatic and electically elements are imported from Gemany, Japan, South Korea etc., such as Panasonic servo motor and Mitsubishi PLC.
3) Marking, punching and shearing are all automatically operated.
4) Computer adopts friendly interface and supports manual programming. Easy to operate.
5) Marking unit adopts a closed frame with good rigidity; different punching toolings can be intalled accroding to needs.
6) Hydraulic pipeline is ferrule connected, ensuring high level of working security.
7) Workpiece infeeded by CNC carriage with high accuracy.
8) Double bladder accumulator provides sufficient power.
Technical Parameters:
Model |
APL-2020 |
Angle Size (mm) |
63×63×4~200×20×20 |
|
Max. punching capability Diameter×Thickness (mm) |
Φ26×20 |
Nominal punching force (kN) |
1000 |
Marking force (kN) |
550 |
Shearing force (kN) |
1550 |
Max. length of workpiece (m) |
14 |
Max. lenght of finished product(m) |
12 |
No. of punches on every side |
3 |
No. of character group |
4 |
Dimensions of character (mm) |
14×10×19 |
No. of CNC axis |
3 |
Shearing mode |
Double shearing |
Feeding speed (m/min) |
0-60 stepless adjustable |
Processing precision |
GB/T2694-2003 standard |
Programming model |
Keyboard enter, RS232 interface enter, CAD input |
Overal dimensions (m) |
32×7×2.6 |
Net weight (t) |
20 |

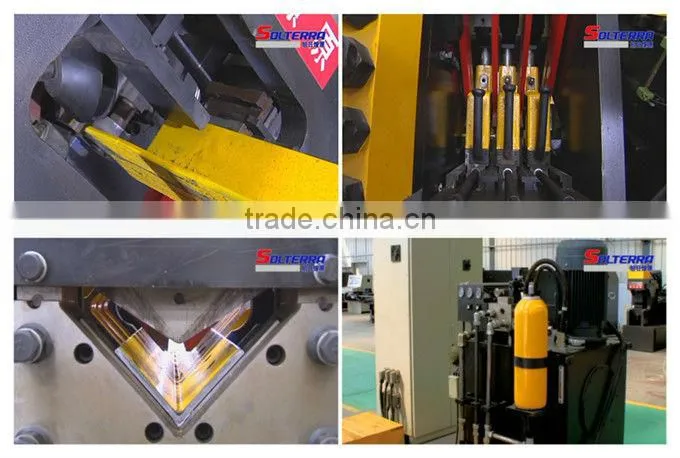

The Main parts of the machine

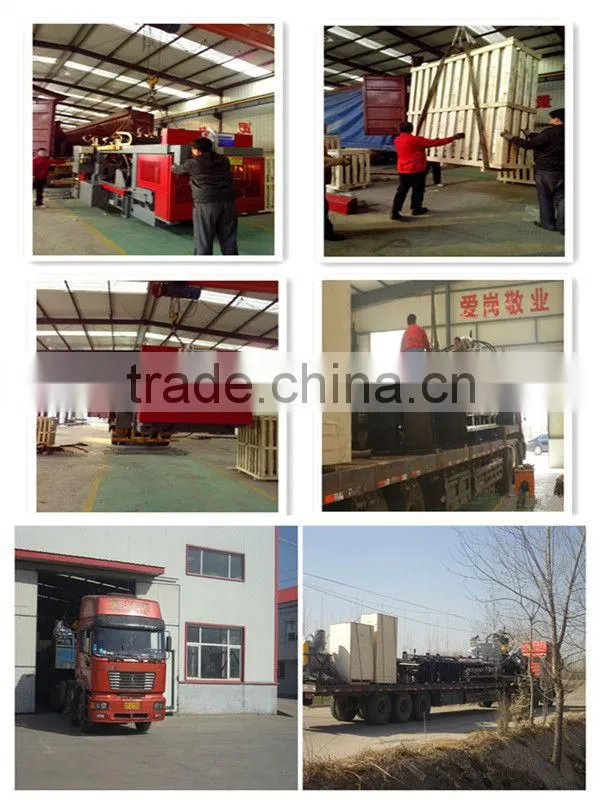

Packages of the Machine

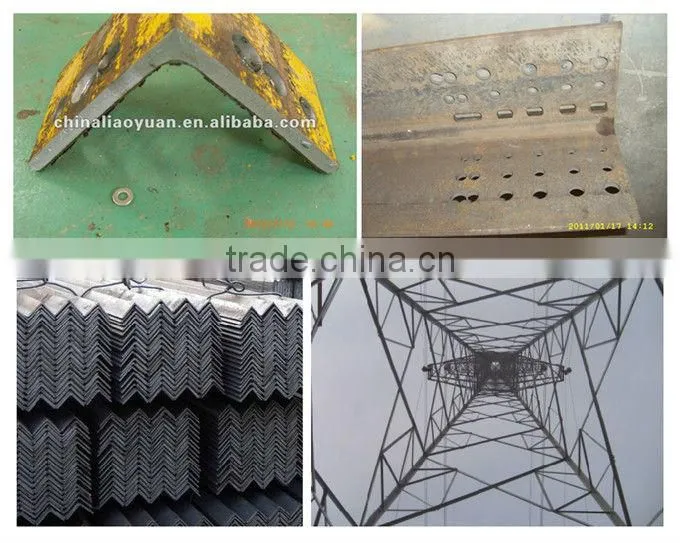

Processing Profile
Company Profile
Jinan Liaoyuan Machine Co.,Ltd Attend the India Annual Exhibition
Fully ISO Quality Management System Approved, For more informaiton about
the certificate,please feel free to contact me!!!
After-sale service
Contact information
Jinan Liaoyuan Machine Co., Ltd
Headquarter: F5, Building A, Jinzhiyuan IT Industrial Park, No. 666, Shunhua East Road, High-tech Zone, Jinan,
Shandong, China 250101
Work 1: No. 1996, Huanggang Rd., Jinan, China 250032
Work 2: East Biandian Rd., Huaiying, Jinan, China 250018
Tel: +86 531 Tel: +86 531 5556 2077 / 5558 5377 Fax: +86 531 5558 5077 / 8566 9978
Cell: +86-15953170342
Skype: robert02148
