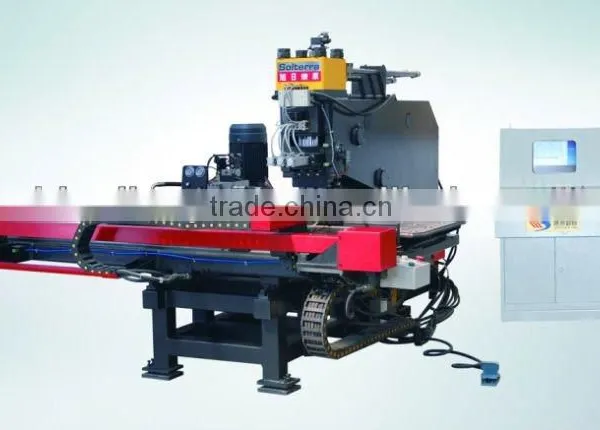

CNC Plate marking punching machine cnc drilling machine CPP100
Detailed Product Description
1.CNC Plate Marking and Punching
2. Thickness of range f punching : 6~20/25mm
3. Integrated machine with mechanical,electrical and hydraulic system.PLC control and servo motor drive
Jinan Liaoyuan Machine Co.,Ltd is a fast growing company dedicate to offer Iron tower and steel struction equipment and Win-Door Machinery
Product details:

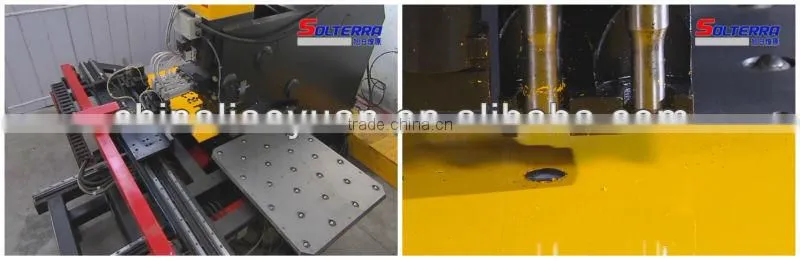

CNC Plate Marking are detailed as follow:
Super quality! Lowest price!! Best service!!!
Equipment Features
1.C shape framework features , great rigidity and provides spacious working area.
2.There are three working stations.Stations can change automatically.The clamp system is suitable for workpiece with different thicknesses.Ther is stop locater at zero position.Workpiece is supported by woking table with rolling balls.
3.X and Y axis are divided by servo motor and ball screw,the punching position is controlled by bi-axis CNC controlling system.
4.The processing data,which can be used repeatedly,can be input into the controlling system and the processing can be done automatically.
Equipment advantages
- Integrated machine with mechanical,electrical and hydraulic system.PLC control and servo motor drive.
- Modular assembling for main functional part,easy maintenance,and with self-diagnostic function.
- Punching and marking operations are on one plate with less labor force and high stable working accuracy.
- For programming,either input punching diameter ,position and quantity of workpiece or directly share the data souce with design department on the local network.
Remarks Noted:
Shipping Terms: FOB (Free on Board) From Qingdao, China to___
Package: Unfumigated wooden case, covered with winding wire film, Customerized Package is also available. Please be safe that the Product will be packed carefully.
Payment Terms: 30% TT (Telegraphic Transfer) in advance, and the balance against the copy of B/L (Bill of Lading).
Delivery Time: Within 45 working days after receiving the advanced Payment.
Specific Advantages:
1. India Branch Office.
2. Fully ISO Quality Management System Certificate Approved.
3. One year Product Warranty, with professional technician and good after-sales service.
4. Factory established in 1991, more than 20 years' experience in servicing Steel tower and steel production line.
5. Product from Factory, High Quality and competitive price.
Main Technical Specifications
No. |
Item |
Specifications |
Unit |
Note |
|||
1 |
Punching force |
1000 |
kN |
|
|||
2 |
Marking force |
800 |
kN |
|
|||
3 |
Thickness range of punching |
6-20/25 |
mm |
|
|||
4 |
Max.diameter of workpiece |
1500×775 |
mm |
|
|||
5 |
Max.diameter of punching hole |
26 |
mm |
b=40N/mm2≤16 |
|||
6 |
Min.margen of punching hole |
25 |
mm |
Apertore≤25.5mm |
|||
7 |
No. of stations |
3 |
number |
|
|||
8 |
Diamensions of character |
14×10×19 |
Mm |
|
|||
9 |
No. of characters |
10 |
number |
Two lines |
|||
10 |
Speed of axis XY |
12 |
m/min |
|
|||
11 |
Process precision |
Accord with GB/T2694-2003 |
Criterion |
|
|||
12 |
Hydraulic system pressure |
(low pressure)
|
5.5 |
Mpa |
|
||
(high pressure) |
25 |
Mpa |
|
||||
13 |
Air supply pressure |
0.5~0.8 |
Mpa |
|
|||
14 |
Total power |
≈20 |
kW |
|
|||
15 |
Overall dimensions |
3020×2522×1880 |
mm |
|
|||
16 |
Weight of machine |
6(t) |
|||||

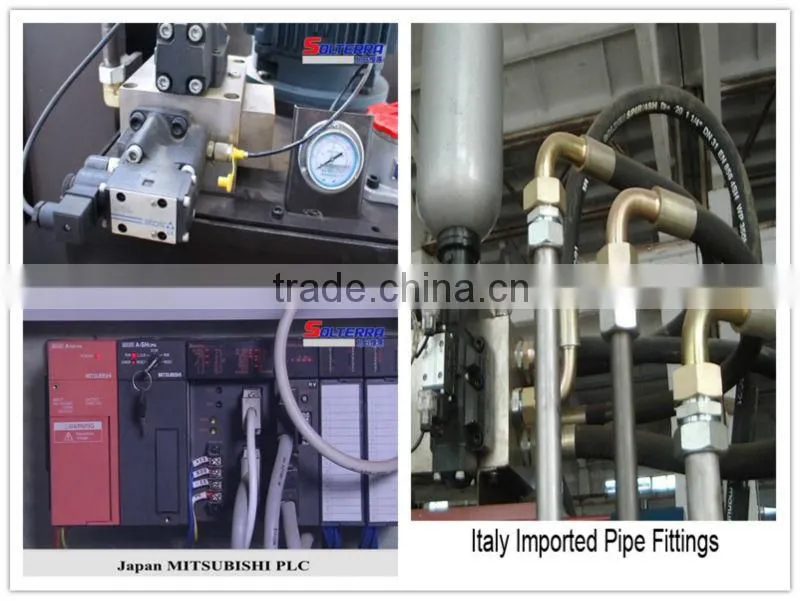

The Main Parts of the machine
