Help CenterHot Sell CNC Four-Corner Combining Machine for Aluminum Windows and Doors
Related Products
-
2012 Hot Sale Four-corner Vertical Welding MachineUS$ 19,267 - 20,325MOQ: 1 Set -
2012 Most Sale V-Corner Cleaning Machine for PVC Window and Door ProfileNegotiableMOQ: 1 Set
-
Mullion Cutting SawNegotiableMOQ: 1 Set
-
Aluminum Window Machine/Double-head Cutting SawNegotiableMOQ: 1 Set
-
Hot Sell PVC Double Mitre Saw for WindowsLJZ2- 400x3500NegotiableMOQ: 1 Set
Specifications
1.Factory established in 19912.ISO&CE
3.One Year Warranty

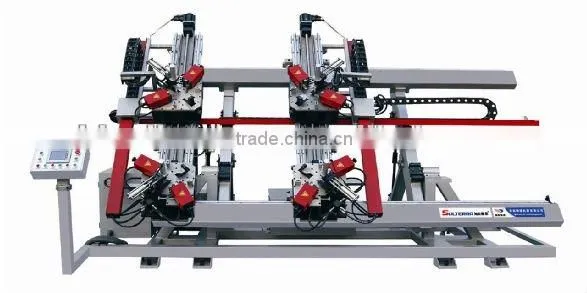

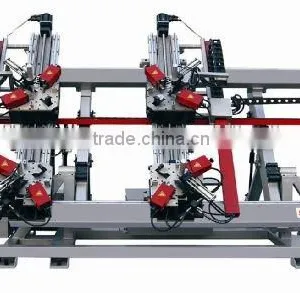

LZJ4-CNC-3000CNC Four-corner Combining Machine
Equipment Features
1.Used for corner punching combination of aluminum window and door,four corners combining at one time.
2.Clamping device can auto move forward/backward,make the operation be more convenient.
3.The frame is specially jointed by steel with high quality and special processed.
4.Imported CNC system, features high quality,high speed and accuracy.
5.The movement control function of the servo system can auto-press the four corners,ensuring the processing effect.
6.One time corner crimping can control the seam and plane,make the quality foresight.
7.The corner-crimping blade can be adjusted according to the requirement of different profile.
8.The seamless connection of control system and servo system,greatly improved the accuracy.
Main specification and technical parameter
Voltage |
380V/220V |
Rating power |
7.5Kw |
Rating oil pressure |
15Mpa |
Air consumption pressure |
0.5-0.8 Mpa |
Air consumption |
0.45L once |
Capability of oil box |
60L |
Corner crimping casing movement distance |
0-50mm |
Max frame diamension |
1800mm×3000m |
Min frame diamension |
480mm×480mm |
Profile width |
93mm |
Tolerance of diagonal |
≤1mm |
Tolerance of connection seam |
≤0.15mm |
Overall dimension(L×W×H) |
4700mm×2200mm×2500mm |
Weight |
2500Kg |
Jinan Liaoyuan Machine Co., Ltd
Headquarter: F5, Building A, Jinzhiyuan IT Industrial Park, No. 666, Shunhua East Road, High-tech Zone, Jinan, Shandong, China 250101
Work 1: No. 1996, Huanggang Rd., Jinan, China 250032
Work 2: East Biandian Rd., Huaiying, Jinan, China 250018
Tel: +86 531 Tel: +86 531 5556 2077 / 5558 5377 Fax: +86 531 5558 5077 / 8566 9978
Cell: +86-15953170342
Skype: robert02148
