Aluminum Window Machine/Double-head Cutting Saw

Aluminum Window Machine/Double-head Cutting Saw thumbnail-1
Aluminum Window Machine/Double-head Cutting Saw photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
SOLTERRA
Model Number:
LJZ2-450x3700
Contact Supplier Request Quote Chat Now
Jinan Liaoyuan Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name SOLTERRA
Model Number LJZ2-450x3700

Specifications

1.India Office
2..ISO9001:2000&CE
3.Factory built in 1991

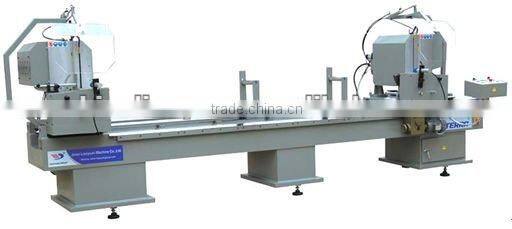

Aluminum Window Machine/Double-head Cutting Saw



Features and functions:

1.   The linear guiding pair ensures steady processing accuracy

2.   Saw blade rotates smoothly due to high accuracy main spindle

3.   Uniform speed feeding and smooth motion are due to hydraulic damping cylinder

4.   It has feature of easy operation, reliable performance, advanced technique and convenient maintenance, etc

5.   Right cutting head moving is driven by motor

6.   Imported carbide saw blade is of accurate processing and high efficiency

7.   The Improved Safety cover is more reliable and safety for operation.

8.  The digital measurement display is optional





Technical parameter:

Power supply                                               380V 50Hz

Air pressure                                                  0.5-0.8Mpa

Cutting motor power                                     2x1.5Kw

Rotary Speed                                                 2800r/min

Air consumption                                                60L/m

Blade specification                                          Φ450XΦ30X4.4 Z=120

Cutting length                                                     max 3700mm min 580mm (45°)Max 3700mm min 400mm(90°, 135°)

Cutting width                                                       max 120mm

Cutting height                                                    max 200mm

Cutting angle                                                      90°, 45°,135°(optional) Cutting angle allowance                                      ±5′

Cutting speed                                                      0-0.3m/min

Cutting profile surface planeness                    <=0.1mm

Cutting profile surface roughness                   Ra 12.5μm

Overall dimension                                              4500X1170X1400mm

Weight                                                                   1500kg
