Flexible Led Digital Rgb Pixel for 8x32 Matrix

Flexible Led Digital Rgb Pixel for 8x32 Matrix thumbnail-1
Flexible Led Digital Rgb Pixel for 8x32 Matrix thumbnail-2
Flexible Led Digital Rgb Pixel for 8x32 Matrix photo-1
Flexible Led Digital Rgb Pixel for 8x32 Matrix photo-2
US$ 1 - 60 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
Epistar 5050
Type:
Flex LED Strips
Input Voltage(V):
DC5V
Contact Supplier Request Quote Chat Now
Shenzhen IPixel LED Light Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar 5050
Type Flex LED Strips
Input Voltage(V) DC5V
Lamp Power 51W/M(Max)
Lamp Luminous Flux(lm) 18-20lm/led
Color Temperature(CCT) full color
Working Temperature(℃) -10, 40
Working Lifetime(Hour) 50000
Lamp Body Material PVC
Certification CE
Emitting Color Other, addressable
Place of Origin Guangdong, China
Brand Name iPixel LED
Model Number S256V5

Flexible LED Matrix - WS2812B (8x32 Pixel)



Discription:



This 8x32 pixel WS2812B flexible LED matrix is a great way to add an impressive amount

of color while still being able to individually control each LED.

We aren’t kidding around, that’s 256 individually addressable LEDs on a 320mm x 90mm flexible panel.

You can create animations, games, or even incorporate them into a fun e-textiles project. On top of all that,

thanks to its flexible backing, this LED Matrix can be bent and bowed to fit onto almost any curvy surface.

These panels require a 5V low voltage input for power which needs to be able to source a good amount of current

– up to 5A in most uses (15A if all LEDs are set to bright white, which is NOT recommended).

Attached to each flexible LED matrix are two 3-pin JST SM connectors and two sets of bare power cables (input / output), which provide you connections for DC5V+, COM-, DAT, and GND. Needless to say, if you are looking for

a large panel of addressable LEDs to fit the contours of almost any surface you’ve come to the right place.

Note: Repeated / Over bending may significantly reduce the structural integrity of the flexible panel. It is advisable when

bending it over curved surfaces to not be too rough with this product as you may damage LED traces or the panel itself.

Needless to say, do NOT fold this matrix in half!



APPLICATION:



LED Chip SMD5050 RGB LED chip
IC Chip  WS2812B(WS2811 IC built-in 5050 RGB LED chip)
LED Quantity 256LEDs/m
Input Voltage DC5V
Watts 51W/Max
IP Rate IP20(non-waterproof)
PCB Color Black PCB
View Angle 140°
Color Addressable full color
PCB Pitch 10mm
PCB Size 320mmx90mm
Warranty  2 years
Brand iPixel LED





 PICTURES:

 Flexible led digital rgb pixel for 8x32 MatrixFlexible led digital rgb pixel for 8x32 MatrixFlexible led digital rgb pixel for 8x32 Matrix

Flexible led digital rgb pixel for 8x32 Matrix

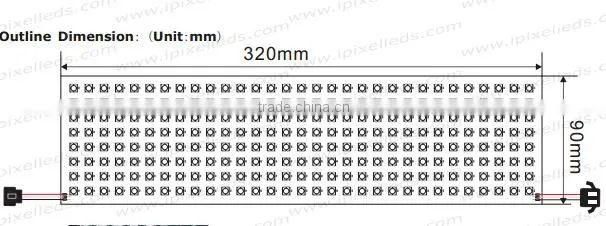

Drawing

Flexible led digital rgb pixel for 8x32 Matrix

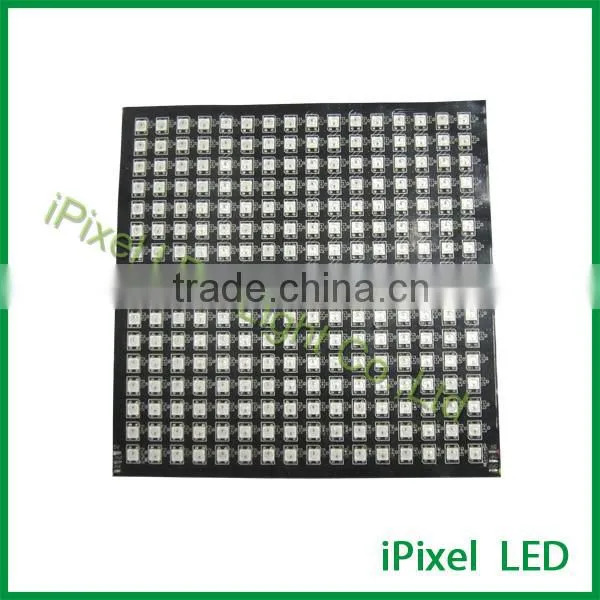

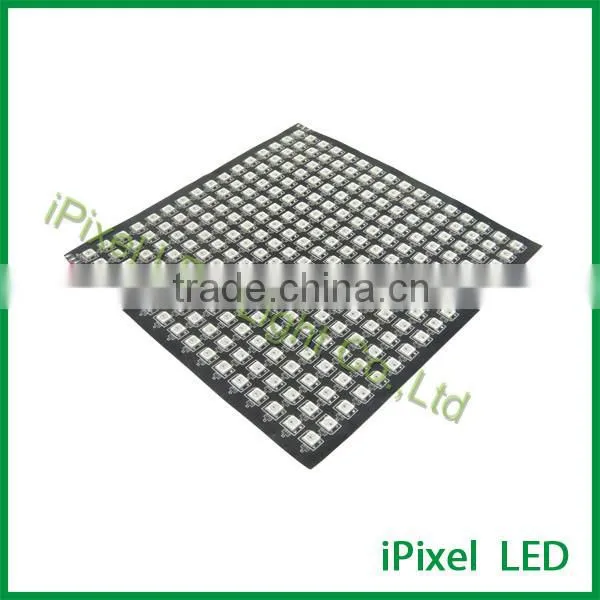

We also have another similar type with 16 x 16 pixels:

Flexible led digital rgb pixel for 8x32 MatrixFlexible led digital rgb pixel for 8x32 Matrix







CONNECTION WAY:

SPI signal: LED Matrix+LED power supply +LED controller

DMX control: LED Matrix+LED pwer supply+DMX Controller+DMX decoder

LED controller: T- series SD card controller, RF remote controller, DMX controller, Arduino...

(offline / PC online)

LED power suppply: Meanwell power supply, T- series, A- series power supply...

(waterproof / non-waterproof)



Flexible led digital rgb pixel for 8x32 Matrix
