Home > Lights & Lighting > LED Encapsulation Series > LED Module > DC 12v IP 65 5050 High Power 5050 Injection Module

DC 12v IP 65 5050 High Power 5050 Injection Module

DC 12v IP 65 5050 High Power 5050 Injection Module thumbnail-1
DC 12v IP 65 5050 High Power 5050 Injection Module thumbnail-2
DC 12v IP 65 5050 High Power 5050 Injection Module photo-1
DC 12v IP 65 5050 High Power 5050 Injection Module photo-2
US$ 0.38 - 0.57 MOQ: 1 Chain
Key Specifications
Get Latest Price
Model Number:
M66503
Emitting Color:
Tri-Color(Red-Blue-Green)
Luminous Flux(lm):
60
Contact Supplier Request Quote Chat Now
Shenzhen IPixel LED Light Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number M66503
Emitting Color Tri-Color(Red-Blue-Green)
Luminous Flux(lm) 60
Optical Attenuation(%) 2
Power Other, 0.72
Power Dissipation 0.8
Color Rendering Index(Ra) 80
Color Temperature R15, G30, B12 lm
Operating Temperature(℃) -30, 50
Storage Temperature(℃) -40, 60
Place of Origin Guangdong, China
Brand Name iPixel LED
Certification CE



DC 12v IP 65 5050 High Power 5050 Injection Module



Description

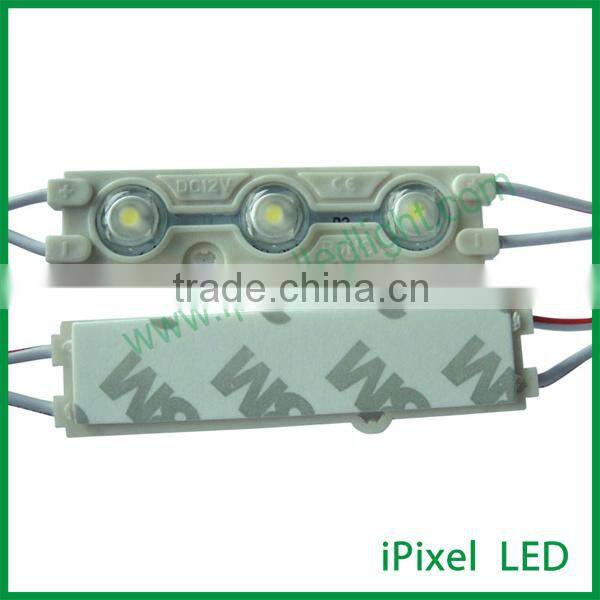

This module is powered by Epistar 5050 SMD LED chip, designed to produce high luminous efficacy. Built
with overmolded housing and aluminum PCB, There is a optic lens on top of each LED it’s cut-able of individual module, while double-sided 3M adhesive tape attached on the back of modules allows for easy installation.

Brand: iPixel LED.



Feature


Model Number

M66503

Size/mm

66*16

LED/Qty

SMD5050/3

Lumen/Module

60Lm

CCT

6000-6500K 2800-3000K

Voltage

DC12V

Wattage/pca

0.72W(max)

Angle

40

IP rate

IP65

Shell Size

66mmx15mm

Drive Pattern

Constant Voltage drive

Warranty

2 Years








DC 12v IP 65 5050 High Power 5050 Injection ModuleDC 12v IP 65 5050 High Power 5050 Injection ModuleDC 12v IP 65 5050 High Power 5050 Injection Module

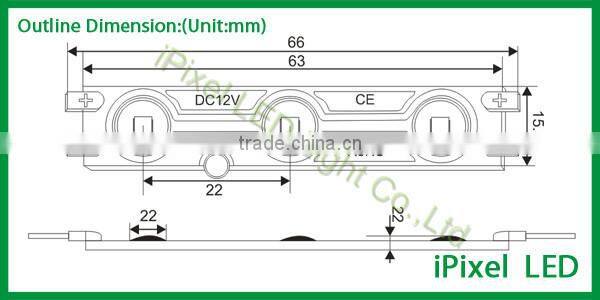

Structure Drawing


DC 12v IP 65 5050 High Power 5050 Injection Module







FAQ:



1. What are the advantages of iPixel LED and its items?



A. iPixel LED is one of professional Pixel LED light manufactures.



B. We keep focus on the LED with IC which could change the color, we don't produce any spot light, pane



   or bube....



C. We already had worlfd wide customers and most of them located in Euro and North America and Mexico



D. We had 5 years experience with the pixel LED and a sales team







2. Could you  provide the OEM or ODM service?



We had rich experience in OEM or ODM service according to customer demad to design and delelop



the products. Actually, 90% of our item are customized.



Pease visit our website to view the DIY products.







3. Can you design a animation before we do business ?



 We have a animation and program designer in company, even if we dont had business before,



 we will be happy to do a animation design or program file for you and it will be free.



 It's a part of business to help someone built something.







4. Do all items produced by your company?



90% our products are make production in our workshop by ourselfs.



We sorcing the different controllers, LED power supply etc from supplier.







5. How much tax should i pay for custom when we buy goods from you?



Different country had different inport policy, you need to figure out with custom



we don't have a exact anwer about this, but most of country 25% on the invoice value







6. How do i know your company  realible?



A.  this company verified by Alibaba group



B. We had famous customer who distributing our products world wide (can be introduce)



C. contact a with our salesman for provide a cooperated customer's contact information



who close to your city or country



D. use Skype ID video chat with our salesman to show you our factory,office etc...







7. Does your salesman proffessional, i am tired of chinese factory or salesman



every salesman come to work for iPixel LED, our gerneral manager and engineer train



the worker before he do any sales



A. products knowledge about LED, controller, wiring...



B. communication skills



C.oversea culture
