Specifications
1. Semiautomatic cnc angle punching machine2. Branch office in India
3. ISO and CE certification
4. One year warranty
Semi-automatic cnc punching machine for angles APLS-1612
Semi cnc angle steel machine
Features:
1. Simply machine for angles punching in iron tower industry
2. No necessary to mark line before punching
3. CNC system for holes distance and staida
4. Punching two different holes only angle pass through press one time
5. Directly transfer from CAD/CAM
6. Max. size of angle (mm): 40×40×3~160×160×12
7. Max. diameter of punching (mm): Φ26
Advantages:
1 The machine is equipped with two punches for different holes. Hole’s dimension can be selected by computer program.There are two stripper for preventing angles from lifting.
2 AC servo motor via ballscrew can make angles transverse movement for changing of stadia. Pneumatic cylinder presses angle against baffle-plate for ensuring the precision of stadia.
3 There are liner guide and rack throughout the infeed rollerway. CNC carrier can be driven by AC servo motor on the liner guide, which ensures accurate punching for angles.
4 Only input the hole's data of workpiece into computer or plug the disc about machining information into computer, then edge distance, hole distance, stadia, holes' quantity, hole’s diameter can be controlled automatically.
5 Main components, such as CNC system, AC servo motor, electric and air valves, etc, are imported from abroad.
Main Technical Specifications:
Model |
APLS-1612 |
Functions |
Punching |
Angle size |
L40×40×3~L160×160×12 |
(mm)Max. diameter of punching |
Φ26 |
No. of punches |
2 |
(mm) Stadia of punching |
|
Length of side70~100Stadia 32Length of side 110~100 Stadia 42 | |
Min. edge distance of punching |
25 |
(KN) Nominal force of punching |
800 |
(m/min) Positioning speed of servo motor |
|
Programming mode |
Input by keyboard, RS232 interface and USB interface |
Precision |
Accord with GB2694 |
Overall dimensions L×W×H |
18.9×2.3×2.6 |
Weight of machine(t) |
8 |

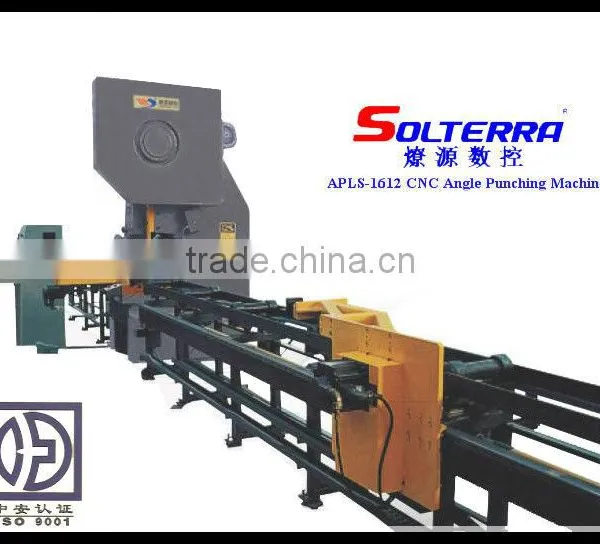

The picture of the machine
High quality and reasonable price !
The best after sales service ! ISO and CE certification .
Professional for angle steel punching !
Nina zhang is on your service !
Tel :+86 13061169737
Skype: nina_zhang5
