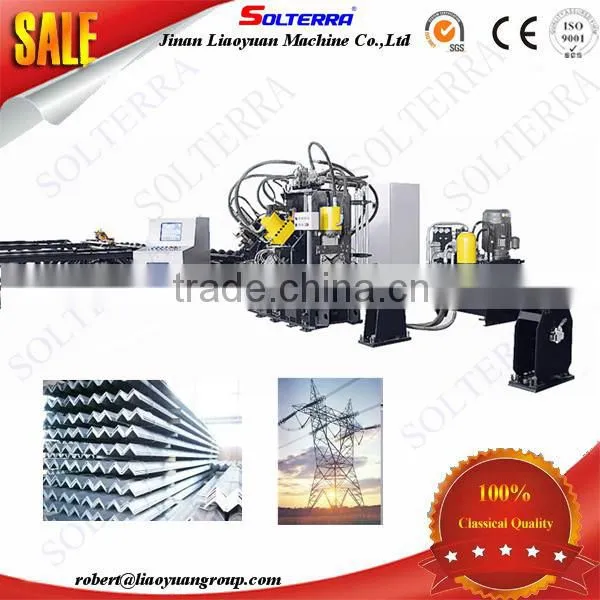

CNC MACHINE FOR STEEL TOWERS
This Machine is popular for processing angle steels and tower industry
1.High quality, Fair Price, Fast Delivery.
2.OEM Service, Trail Order
3.The Color, The logo, The package according to your request,
4.We are the Manufacturer,We have many engineers for the solutions for the new market to keep the trend of the world.
5.Product Video can be sent to you for reference
Jinan Liaoyuan Machine Co.,Ltd is a fast growing company dedicate to offer Iron tower and steel struction equipment.
Brief Product Introduction
| Name | 2016 CNC MACHINE FOR ANGLE STEEL TOWERS |
| Model | APL-1412 |
| Brand | SOLTERRA |
| Warranty | The Warranty Time is One year, Engineers available to the Service |
| Certificates | ISO9001,SGS |
| Delivery time | Within 6 weeks after confirming the order |
| Payment terms | L/C,T/T |
As a factory,we will give you the highest quality and the competitive price.
We are looking for the agent of our machines all over the world.
Item:APL-1412
This Series production lines are professional automatic equipments for typing,marking,punching and cutting if angle steel
of electric power and telecommnucaiton angle steel tower. Processing Size: Steel type L63X63X4,length with 16M. It includes
6 parts: Material-applying parts,feeding part,principal part, finished production conveyor part, hydraulic power part,electrical control part.
Equipment Features
1) CNC control, servo motor drive and hydraulic power offer high efficiency and stable working accuracy.
2) Key hydraulic pneumatic and electically elements are imported from Gemany, Japan, South Korea etc., such as Panasonic servo motor and Mitsubishi PLC.
3) Marking, punching and shearing are all automatically operated.
4) Computer adopts friendly interface and supports manual programming. Easy to operate.
5) Marking unit adopts a closed frame with good rigidity; different punching toolings can be intalled accroding to needs.
6) Hydraulic pipeline is ferrule connected, ensuring high level of working security.
7) Workpiece infeeded by CNC carriage with high accuracy.
8) Double bladder accumulator provides sufficient power.
Advantages
- The machine is composed of transverse conveyor,rotating loading system,infeed conveyor,CNC infeed carriage,marking unit,shearing unit,unloading conveyor as well as hydraulic,electrical and pneumatic system,etc.
- Veasatile triple tooling on each side which can install three kinds of punches with different diameters.Versatile triple tooling can move together controlled by CNC which is to change the punching stadia.
- Double-blade shearing ensures perfect cutting section.The clearance can be conveniently adjusted.
- Marking unit adopts a closed frame with good rigidity.Four sets of character boxes are fixed on the marking unit which can be selected by program.Marking stadia can be at will.
- The workpiece is infeeded by the CNC carriage with high positioning precision.The infeed carriage is driven by servo motor.The photoelectric encoder feds back the information.Closed loop control.The clamp arm moves up and down with high rigidity.It is driven by ball screw and guided by linear guideway.
- The support device of the ounching unit is driven up and down by hydraulic cylinder.
- The rotating loading system is driven by the reducer with high working stability.
- The hydraulic system mainly serves for punching,shearing,marking,marking device movement,pressing and supporting workpiece,and tansposition of character boxes.The hydraulic pipeline is ferrule connect.
Main Technical Specifications
Model |
APL-2020 |
Angle Size (mm) |
63×63×4~200×20×20 |
|
Max. punching capability Diameter×Thickness (mm) |
Φ26×20 |
Nominal punching force (kN) |
1000 |
Marking force (kN) |
550 |
Shearing force (kN) |
1550 |
Max. length of workpiece (m) |
14 |
Max. lenght of finished product(m) |
12 |
No. of punches on every side |
3 |
No. of character group |
4 |
Dimensions of character (mm) |
14×10×19 |
No. of CNC axis |
3 |
Shearing mode |
Double shearing |
Feeding speed (m/min) |
0-60 stepless adjustable |
Processing precision |
GB/T2694-2003 standard |
Programming model |
Keyboard enter, RS232 interface enter, CAD input |
Overal dimensions (m) |
32×7×2.6 |
Net weight (t) |
20 |

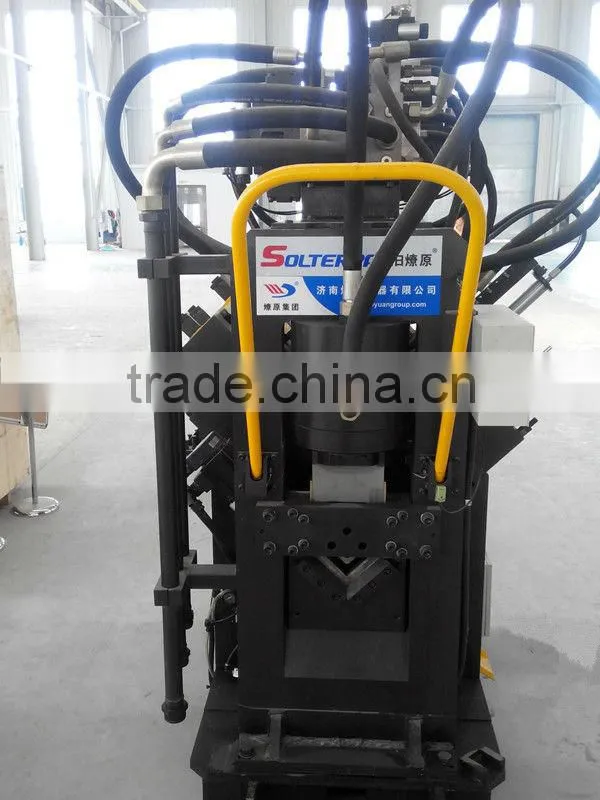

Machine Images
Processing Object
15-25 days of theoretical and practical study are provided to the customer’s two technicians (an electrician, a mechanical maintenance).
