CNC PUNCHING MARKING AND CUTTING MACHINE
This Machine is popular for processing angle tower industry.
Detailed Product Information:
Factory built in 1991
ISO9001:2008
Competitive price with best service
Jinan Liaoyuan Machine Co.,Ltd is a fast growing company dedicate to offer Iron tower and steel struction equipment.
Product details:
As a factory,we will give you the highest quality and the competitive price.
We are looking for the agent of our machines all over the world.
Item:APL-2020
This machine is popular for tower industry.
Range of Angle size:63x63x4~200x200x20(Q235-A or 16Mn)
Equipment Features
- The machine is professional automatic equipment for marking, punching and shearing in iron tower manufacturing industry.
- CNC automatic production line offers highpunching speed and high stability.
- The angle bar can be processed into finished angle in one time as passing through the machine.
- The machining process is numerically controlled and the operation is very convenient.It can achieve automation,high precision,multi-species and mass production.
- Friendly computer interface is easy to operate.It can accept certain processing program which is made by lofting softrware.And it also supports manual programming.
Advantages
- The machine is composed of transverse conveyor,rotating loading system,infeed conveyor,CNC infeed carriage,marking unit,shearing unit,unloading conveyor as well as hydraulic,electrical and pneumatic system,etc.
- Veasatile triple tooling on each side which can install three kinds of punches with different diameters.Versatile triple tooling can move together controlled by CNC which is to change the punching stadia.
- Double-blade shearing ensures perfect cutting section.The clearance can be conveniently adjusted.
- Marking unit adopts a closed frame with good rigidity.Four sets of character boxes are fixed on the marking unit which can be selected by program.Marking stadia can be at will.
- The workpiece is infeeded by the CNC carriage with high positioning precision.The infeed carriage is driven by servo motor.The photoelectric encoder feds back the information.Closed loop control.The clamp arm moves up and down with high rigidity.It is driven by ball screw and guided by linear guideway.
- The support device of the ounching unit is driven up and down by hydraulic cylinder.
- The rotating loading system is driven by the reducer with high working stability.
- The hydraulic system mainly serves for punching,shearing,marking,marking device movement,pressing and supporting workpiece,and tansposition of character boxes.The hydraulic pipeline is ferrule connect
Main Technical Specifications
Model |
APL-2020 |
Function |
Punching,marking,shearing |
angle size(mm) |
63×63×4~200×200×20(Q235-Aor16mn) |
Nominal marking force(kN) |
550/1040 |
Nominal punching force(kN) |
1090 |
Nominal shearing force(kN) |
1810 |
Max.punching capability(mm) |
26×20 |
piece(m) |
14 |
Adjustment of stadia(mm) |
20~170 |
No. of punches on each side(number) |
3 |
No.of character groups(group) |
4 |
No. of characters per group(number) |
10/18 |
Diamentions of character(mm) |
14×10×19 |
Shearing mode |
Double-blade shearing |
No. of CNC axis(number0 |
3 |
Max. feeding speed(m/min) |
40 |
Total power(kW) |
43.5 |
Overall dimentions(m) |
32×7×2.2 |
Weight of machine(t) |
Approx16 |

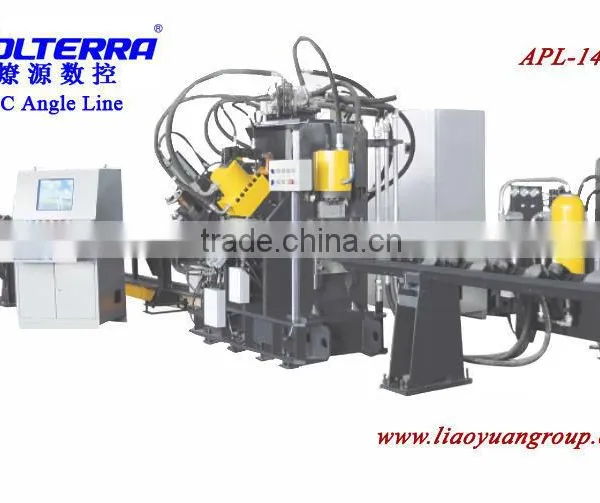

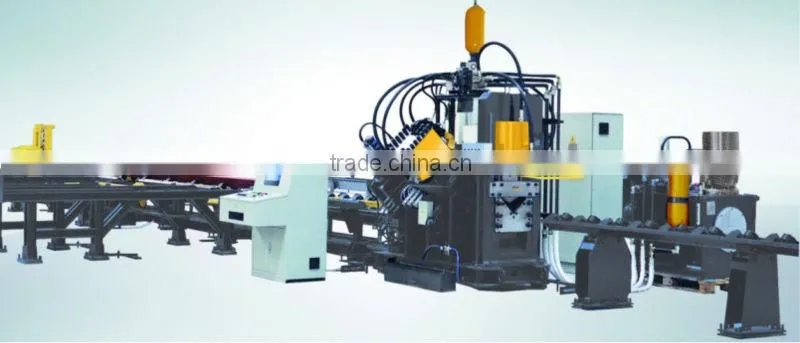

Machine Images
Package and shipping
Processing Object
Company Profile
Global customers visit our factory
Fully ISO Quality Management System Approved, For more informaiton about
the certificate,please feel free to contact me!!!
After-sale service
Contact information
Question 1. Are you a Manufacturer or a trading company?
Answer 1. We are not a trading company,We are the top Machine Manufacturer,Which involves Raw materail casting,Machine body processing,Machine assembling,Painting,Machine quality Inspecting and etc.
Q 2. What is the minimum quantity for order ?
A2: Normaly One Set. and We will give some discounts if you can buy one complete set of Machine.
Q3. Do you have stock product ready to deliver?
A 3. We have many machines in stock, So We can guarantee the fast delivery time and make sure you can check the machine on LIVE-DEMONSTRATION at any time.
Q4. How do you deliver the finished products?
A 4, For FCL, We delivered by Sea
For LCL, We delivered by Sea and by Plane for only urgent requirement
For Spare Parts,We delivered by Courier,TNT, FEDEX,DHL,UPS,EMS, and Etc.
Q5,How can you guarantee the after-sales service?
A 5, We have a first-class engineers for the machine installation, tranining, and after-sales, we also have branch office in ovesea to keep the good after-sales service,They have a professional work team with exquisite experience.
Q6, What's delivery time for the machines.
A 6, We will arrange the shipment within 16 days after receiving the payment.
Q7, Do you inspect the finished products?
A7, Yes, Each step of production products will be camed out inspection by QC department before shipping.
Q8, Which Model is suitable for my requirement?
A8,Please share with us the dimension of the angle size, and then We will recommedn suitable model for you.
