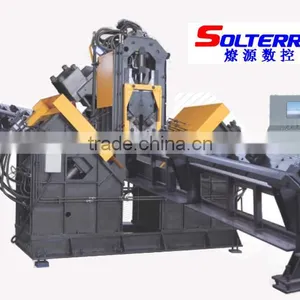

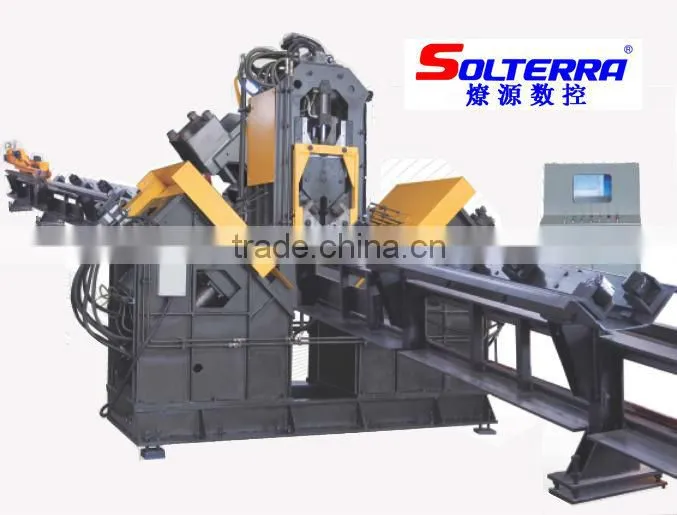

CNC Angle line for angle Drilling & Marking APL2532

Specifications

1.CNC Angle Drilling & Marking Production Line
2.Easy programming, high precision and efficiency
3.CE, ISO-9001-2008



CNC Angle line for angle Drilling & Marking for power transmission,steel structure APL2532



1.CNC Angle Drilling & Marking Production Line
2.Easy programming, high precision and efficiency
3.CE, ISO-9001-2008



Features:



1. Imported electronic, hydraulic & pneumatic elements; CNC control, servo motor feed.

2. Infinite gauge lines and no limits of the hole rows; Diagrammatic display of workpiece

3. Easy programming, connectable with data files generated directly by copying the specimen; Only angles size, hole diameters,positions and piece numbers are needed to put into during programming. Data can be shared by connecting the production line with the local area network of designing department.

4. Each side equipped with one set of drilling unit, 3 different sizes of drills on each drilling unit.

5. Max. workpiece length is selectable from 14m or 12m

6. Low labour working strength and high precision.



 Main specifications and technical parameters:



Size of angle(mm)	140x140x10-250x250x32
Max. drilling diameter(mm)	Φ40
Marking nominal force (KN)	1030
Max. Workpiece Length (M)	14 or 12(by user’s request)
Adjustment range of stadia(mm)	50-220(stepless)
No. of drill in each side	3
No. of character group(piece)	1
No. of character per character group	15
Character size(mm)	14x10x19
No. of CNC axes	3
Max. feeding speed(m/min)	40
Max. drilling stroke(mm)	85
Rotation speed of spindles(r/min)	180-560(stepless)
Overall dimension(m)	29x8.9x2.5
Net weight(Kg)	16500
