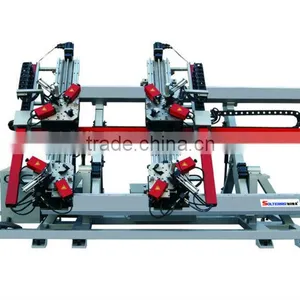

Help CenterAluminum Windows Four-corner Combining Machine/aluminum Widnow Crimping Machine LZJ4-CNC-3000
Related Products
-
PVC & Aluminum Profile Copy Router Machine for Pvc Windows and Doors LXF-290X 90NegotiableMOQ: 1 Set -
CNC Corner Connector Cutting MachineLJJ-450NegotiableMOQ: 1 Set
-
Aluminum Single Head Cutting Saw for Aluminum WindowsNegotiableMOQ: 1 Set
-
End Milling Machine for Aluminum and Pvc Windows Making LXD4-250NegotiableMOQ: 1 Set
-
End Milling Machine for Aluminum and Pvc Windows Making LXD3-250NegotiableMOQ: 1 Set
Specifications
corner combination machine for aluminum windows/aluminium window corner crimping machine

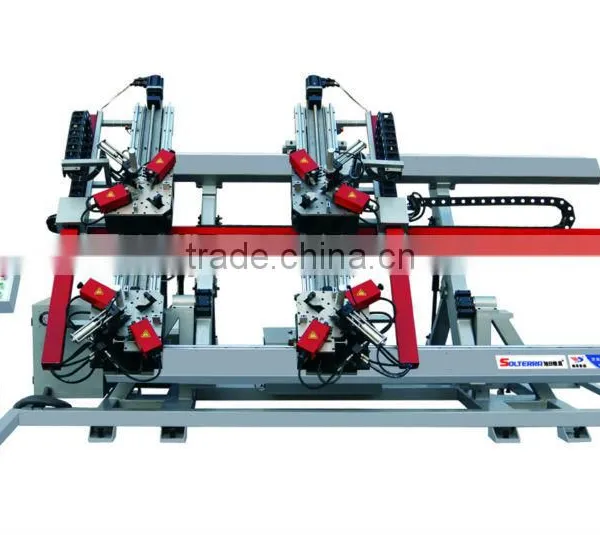

CNC four-corner combining machine LZJ4-CNC-3000
1. CNC four-corner combining machineLZJ4
2. CE, ISO9000:2000;
3. 20 years industry experience.
Features and functions:
1. Used for corner punching combination of aluminum windows and doors, four corners combination at one time
2. Clamping device can auto move forward / backward, make the operation be more convenient
3. The frame is specially jointed by steel with high quality and special processed
4. Imported CNC system, features high quality, high speed and accuracy
5. The movement control function of the servo system can auto-press the four corners, ensuring the processing effect
6. The corner-crimping blade can be adjusted according to the requirement of different profiles
7. One time corner crimping can control seam and plane, makes the quality foresight
8. The seamless connection of control system and servo system, greatly improved the accuracy
Technical parameter:
Voltage |
380V/220V |
Rating power |
7.5KW |
Rating oil pressure |
15MPa |
Air consumption pressure |
0.5-0.8MPa |
Air consumption |
0.45Lonce |
Lonce Capability of oil box |
60L |
Corner crimping casting movement distance |
0-50mm |
Max frame dimension |
1800mm×3000mm |
Min frame dimension |
480mm×480mm |
Profile width |
93mm |
Tolerance of diagonal |
≤1mm |
Tolerance of connection seam |
≤0.15mm |
Overall dimension |
4700×2200×2500mm |
Weight |
2500kg |
Quality Guarantee:
The Seller shall provide all spare parts needed, be responsible for spare parts replacement and TWELVE(12) months guarantee.
After guarantee period all costs of replacement, cost of spare parts, shipment cost, and others cost shall be covered by Buyer.
Technical service:
The seller will supply free online technical service, free training program for the buyer’s staff , on-site installation.
