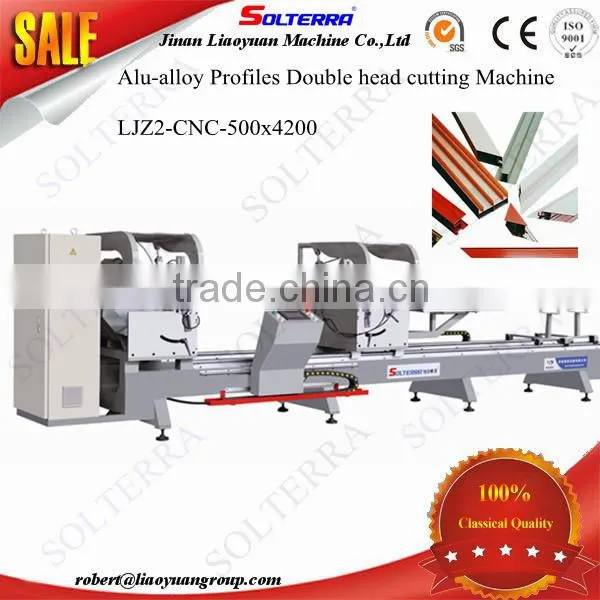

Fully Automatic Alu-alloy Profiles Double head cutting Machine

Specifications

1.Aluminum Windows cnc cutting machine
2.ISO,CE,SGS
3.Factory built in 1991.
4.Many machines in stock, fast delivery time

   Fully Automatic Alu-alloy Profiles Double head cutting Machine

This Machine is popular for processing aluminum and upvc windows









1.High quality, Fair Price, Fast Delivery.

2.OEM Service, Trail Order

3.The Color, The logo, The package according to your request,

4.We are the Manufacturer,We have many engineers for the solutions for the new market to keep the trend of the world.

5.Product Video Can be sent to you for check.



Name	Fully Automatic Alu-alloy Profiles Double head cutting Machine
Model	LJZ2-CNC-500x4200
Brand	Solterra
Certificates	ISO9001,SGS
Warranty	The Warranty time is One year, With Engineers available to the service
Packages	Non fumigation Crate
Delivery time	30 days for 5 sets, 50 days for 10 sets
Payment terms	L/C,T/T,Western Union



Super quality! Lowest price!! Best Service!!!



As a factory, We are looking forward to finding the agents of our products all over the world!!



Features and functions:



1. Used for cutting aluminum profiles for door-window, curtain wall etc.

2. The feeding system adopts the imported linear guide pair, with high accuracy and stability.

3. Right head feeding adopts high helical pitch ball screw-lead motion, with high accurate driving, locating and smooth working.

4. Two saw heads are adjustable and cut profiles at 45°/ 90° freely.

5. Imported carbide saw blade features accurate processing and high endurance.

6. Imported linear guiding pair ensures steady processing accuracy.

7. Saw blade rotates smoothly due to high accurate main spindle.

8. Uniform speed feeding and smooth motion is due to air hydraulic clamping.

9. Auto-opening shield makes the operation more safety.

10. Middle auto-induction profile supporter and following profiles supporter made the loading and clamping convenient.

Main Specification and technical Parameter





Power supply	380V 50Hz
Cutting motor power	2x2.2kW
Cutting motor rotary speed	2800r/min
Air pressure	0.5~0.8MPa
Air consumption	60L/min
Blade specification	Φ500xΦ30x4.4xZ120
Cutting speed	Stepless speed regulation 0~3m/min
Max. cutting length	4200mm
Min. cutting length	375mm
Cutting width	Max. 135mm
Cutting height	90°: max 300mm 45°: max 200mm
Max cutting section	135x300mm
Cutting angle	90°, 45°
Repeat locating length tolerance	±0.2mm
Cutting profile surface plane	≤0.1mm
Cutting angle tolerance	Ra12.5µm
Overall dimension	5900x1300x1400mm

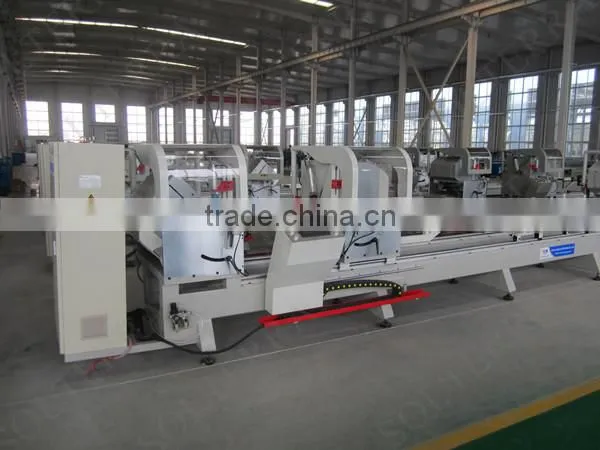

Machine Images







Auminum window processing equipments









We will use high standard export wooden case for the long-term shipping, also customers' specific requirement can be available.





Liaoyuan Machine established in the 1990s. Liaoyuan Machine is located in Jinan city of China, originally started to make pvc/aluminum window & door machine from 1991 year. We are the only one chinese company who enjoy the capacity from spare parts casting, machine design, technology innovation and machine assembling, which are totally achieved at your factory.



In more than 20 years of development, Liaoyuan Machine has energetically explored the resource development space to realize rapid development. Nowadays, Liaoyuan Machine has been developed into a large machine tool production enterprise with a land area of four hectares, a workshop area of 15,000 square meters, more than 350 employees, more than 100 sets of professional production equipment and annual designing and production ability of more than 700 sets of machine tools. In 1998, Liaoyuan Machine was granted the authorized import & export license by the Commission of Foreign Trade and Economic Cooperation of China





Jinan Liaoyuan Machine Co.,Ltd Attend  Annual Exhibition





With Fully ISO9001 Approved, For more information about the certificate,please

feel free to contact me!!



Contact Information:







Question 1. Are you a Manufacturer or a trading company?

Answer 1. We are not a trading company,We are the top Machine Manufacturer,Which involves Raw materail casting,Machine body processing,Machine assembling,Painting,Machine quality Inspecting and etc.



Q 2. What is the minimum quantity for order ?

A2: Normaly One Set. and We will  give some discounts if you can buy one complete set of Machine.





Q3. Do you have stock product ready to deliver?

A 3. We have many machines in stock, So We can guarantee the fast delivery time and make sure you can check the machine on LIVE-DEMONSTRATION at any time.



Q4. How do you deliver the finished products?

A 4, For FCL, We delivered by Sea

For LCL, We delivered by Sea    and by Plane for only urgent requirement

For Spare Parts,We delivered by Courier,TNT, FEDEX,DHL,UPS,EMS, and Etc.



Q5,How can you guarantee the after-sales service?

A 5, We have a first-class engineers for the machine installation, tranining, and after-sales, we also have branch office in ovesea to keep the good after-sales service,They have a professional work team with exquisite experience.



Q6, What's delivery time for the machines.

A 6, We will arrange the shipment within 15 days after receiving the payment.



Q7,  Do you inspect the finished products?

A7, Yes, Each step of production products will be camed out inspection by QC department before shipping
