Specifications
1.Factory built in 19912.ISO9001
3.One Year Product Warranty.
4.Aluminum Windows Double Head Cutting Machine

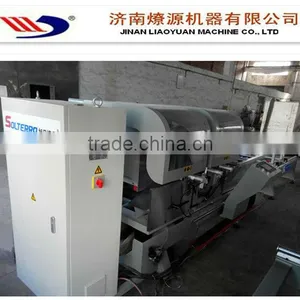

Aluminium Windows Profile Double Head Cutting Machine
This Macine is popular for cutting aluminum window profile
1.High quality, Fair Price, Fast Delivery.
2.OEM Service, Trail Order
3.The Color, The logo, The package according to your request,
4.We are the Manufacturer,We have many engineers for the solutions for the new market to keep the trend of the world.
Jinan Liaoyuan Machine Co.,Ltd is a fast growing company for Aluminum win-doors and curtain wall.
| Name | Aluminium Windows Profile Double Head Cutting Machine |
| Brand | Solterra |
| Voltage | 220V/380V/415V or in accordance with customers' requirement |
| Certificates | ISO9001,SGS |
| Warranty | The Warranty time is One year, Engineers avaiable to service |
| Delivery time | 30 days for 3 sets,50days for 6sets |
| Payment terms | L/C,T/T, Western Union |
Super quality! Lowest price!! Best service!!!
As a Manufaturer, We are looking forward to finding the agents of our products all over the world!!
Product Features:
1. Used for cutting aluminum for doors and windows, curtain wall etc
2. The feeding system adopts the imported linear guide pair, with high accuracy and stability
3. Right head feeding adopts high helical pitch ball screw-lead motion, with high accurate driving, locating and smooth working
4. Two saw heads are adjustable and cut the profiles in 45°, 90° freely
5. Imported carbide saw blade features accurate processing and high endurance
6. Imported linear guiding pair ensures steady processing accuracy
7. Saw blade rotates smoothly due to high accuracy main spindle
8. Uniform speed feeding and smooth motion is due to air hydraulic damping cylinder
9. Auto-opening shield makes the operation more safety
10. Middle auto-induction profile supporter and following profile supporter made the loading and clamping convenient
Main Specification and Technical Parameter
Power supply |
380V 50Hz |
Cutting motor power |
2x2.2kW |
Cutting motor rotary speed |
2800r/min |
Air pressure |
0.5~0.8MPa |
Air consumption |
60L/min |
Blade specification |
Φ500xΦ30x4.4xZ120 |
Cutting speed |
Stepless speed regulation 0~3m/min |
Max. cutting length |
4200mm |
Min. cutting length |
375mm |
Cutting width |
Max. 135mm |
Cutting height |
90°: max 300mm 45°: max 200mm |
Max cutting section |
135x300mm |
Cutting angle |
90°, 45° |
Repeat locating length tolerance |
±0.2mm |
Cutting profile surface plane |
≤0.1mm |
Cutting angle tolerance |
Ra12.5µm |
Overall dimension |
5900x1300x1400mm |
Machine Images
Auminum window processing equipments
Aluminum Windows Fabricating Production Line
Company Profile
Jinan Liaoyuan Machine Co.,Ltd Attend Annual Exhibition
With Fully ISO9001 Approved, For more information about the certificate,please
feel free to contact me!!
