Specifications
1.Factory established in 19912.ISO9001
3.Automatic four corner crimping machine
4.Aluminum window making machine

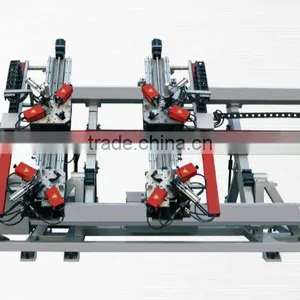

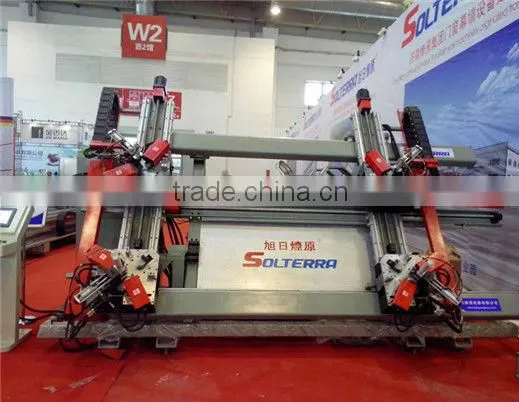

Automatic four corner crimping machine/Aluminum window machine LZJ4-CNC-120
This machine is popular for Aluminum window crimping
Brief Product Information
corner crimping machine for aluminium frames profiles
Corner combining Machine
ISO9001:2008
Jinan Liaoyuan Machine Co.,Ltd is a fast growing company for PVC windows and doors.
Product Details:
corner crimping machine detailed informaton are as followed:
Super quality! Lowest price!! Best service!!!
Equipment Features

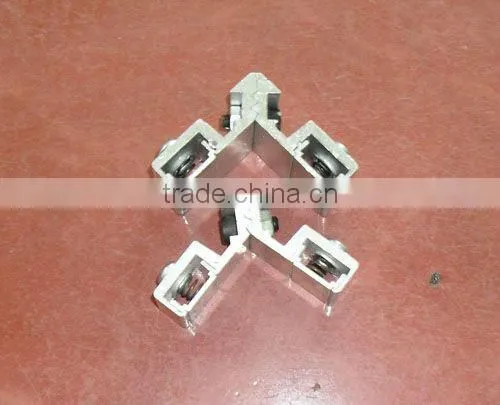

1.Used for corner punching combination of aluminum window and door,four corners combining at one time.
2.Clamping device can auto move forward/backward,make the operation be more convenient.
3.The frame is specially jointed by steel with high quality and special processed.
4.Imported CNC system, features high quality,high speed and accuracy.
5.The movement control function of the servo system can auto-press the four corners,ensuring the processing effect.
6.One time corner crimping can control the seam and plane,make the quality foresight.
7.The corner-crimping blade can be adjusted according to the requirement of different profile.
8.The seamless connection of control system and servo system,greatly improved the accuracy.
Main specification and technical parameter
Voltage |
380V/220V |
Rating power |
7.5Kw |
Rating oil pressure |
15Mpa |
Air consumption pressure |
0.5-0.8 Mpa |
Air consumption |
0.45L once |
Capability of oil box |
60L |
Corner crimping casing movement distance |
0-50mm |
Max frame diamension |
1800mm×3000m |
Min frame diamension |
480mm×480mm |
Profile width |
93mm |
Tolerance of diagonal |
≤1mm |
Tolerance of connection seam |
≤0.15mm |
Overall dimension(L×W×H) |
4700mm×2200mm×2500mm |
Weight |
2500Kg |
Jinan Liaoyuan Machine Co., Ltd
