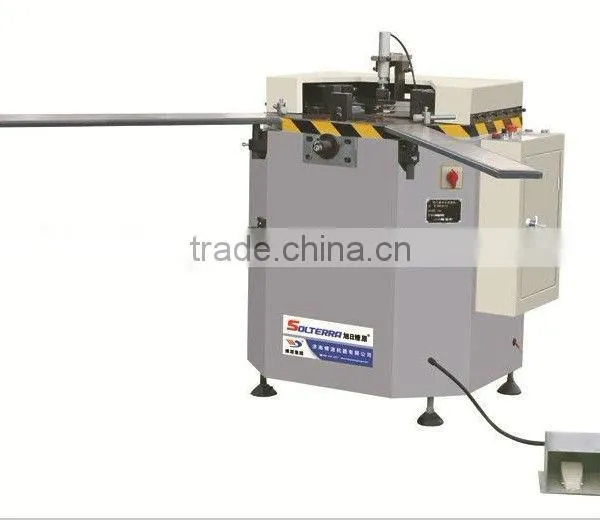

Help CenterLZJ-120 Aluminium Doors and Windows Corner Crimping Machine
Related Products
-
Aluminum Double Head Cutting Saw Machine for SaleNegotiableMOQ: 1 Set -
Double Head Cutting Saw for Aluminum ProfileNegotiableMOQ: 1 Set
-
Aluminium Window Fabricating Machine Multi Head Drilling Hole MachineNegotiableMOQ: 1 Set
-
China Aluminum Windows Drilling Machinery ManufacturerNegotiableMOQ: 1 Set
-
Aluminium and PVC Windows Profile Cutting Machine for SaleNegotiableMOQ: 1 Set
Specifications
1.ISO9001:20082.Window Machine Manufacturer with more than 20 years' experience
3.Factory audited by SGS
Hydraulic Crimping Machine for Aluminium doors and Windows LZJ-120
Brief Product Information
Corner crimping machine
Hydraulic Crimping Machine for Aluminium Windows
ISO9001:2008
Jinan Liaoyuan Machine Co.,Ltd is a fast growing company for PVC windows and doors.
Product Details:
Aluminum Corner crimping machine detailed informaton are as followed:
Super quality! Lowest price!! Best Service!!!
As a factory, We are looking forward to finding the agents of our products all over the world!!
Equipment Features:
1.The frame is specially jointed by steel with high quality and durable .
2.Adopt new mechanical linkage device,realized complete synchronous corner combining.
3.Synchro feeding structure make the adjustment very easy
4.Screw thread regulates the distance tertween up and down crimping blade ensures regulated blades easily.
5.It is collocate single cutter of many points crimping cutter ensure reliably crimping for aoll kinds of profiles.
Main specification and technical parameter:
| Power supply | 380V 50Hz |
| Main Motor mput power | 1.1KW |
| Rated oil pump pressure | 16Mpa |
| Motor rotational speed | 1400r/min |
| Profile processing height | Max 120mm |
| Profile processing width | 90mm |
| Total combining pressure | 0.3~0.8Mpa |
| Air consumption | 2L/min |
| General pressure of corner combining | 48KN |
| The adjustable range of the main location block | 70mm |
| Overall dimension | 1000*1200*1200mm |
| weight | 350kg |

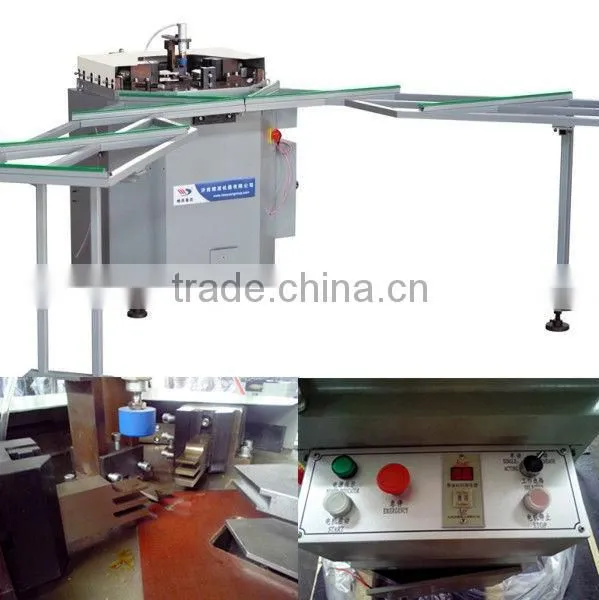

Machine Images
With Fully ISO9001 Approved, For more information about the certificate,please
feel free to contact me!!
