Specifications
1. High Precision and efficiency2.Main axis Rev./Power: 18000rpm/3kw
3.CNC Milling Machine
4.ISO,CE,SGS
China CNC drilling milling Machine manufacturer for Aluminum
CNC Milling Machine for windows
Window making machine for Aluminum profile and curtain wall
ISO9001:2008
Jinan Liaoyuan Machine Co.,Ltd is a fast growing company for Aluminum win-doors and curtain wall.
Product Details
Detailed information of CNC Milling machine are as followed:
Super quality! Lowest price!! Best service!!!
As a Manufaturer, We are looking forward to finding the agents of our products all over the world!!
Features and functions:
1. Milling aluminum profile at different size of holes and grooves
2. Adopt ball bearing movement device, high precision guide linear rack and pinion, servo motor, ensure the stable movement with high precision position and operation
3. Adopted imported high speed main axis motor, stable rotation, low noise, strong milling ability
4. Milling table can be turned from -90°, 0°, +90°to realize one time clamping three surfaces milling
5. Intelligent Integrated CNC System, concision and vivid human and machine interface, easy operation
Technical parameter:
| X-way journey (X-axis) | 3200mm |
| Y-way journey (Y-axis) | 300mm |
| Z-way journey(Z-axis) | 300mm |
| X-axis speed | 0~60m/min |
| Y-axis speed | 0~15m/min |
| Z-axis speed | 0~15m/min |
| Main axis rev./power | 18000rpm/3kw |
| worktable work position | -90°.0°.+90° |
| Clamp | ER25-Φ8 |
| Air supply | 0.5~0.8MPa |
| Power supply | 380V/50Hz |
| Total power | 6kw |
| Quantity of clamp | 6 |
| Clamp station/journey | 2/50mm |
| Processing size(W*H*L) | 160*160*3200mm |
| Overall dimension(L*W*H) | 4400*1500*1800mm |
| Weight | 1200kg |

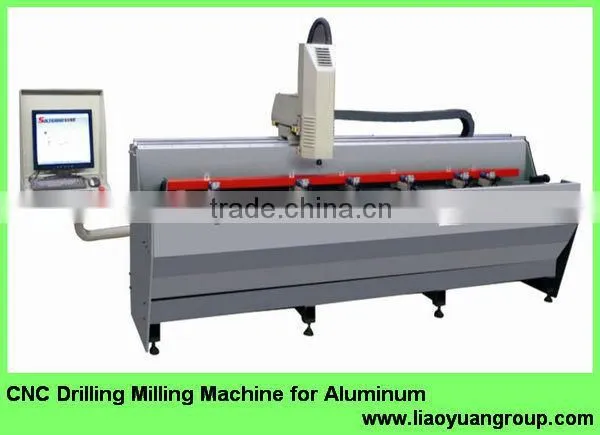

Machine Images
Packges and shipping
Company Profile
Jinan Liaoyuan Machine Co.,Ltd Attend the Annual Exhibition
With Fully ISO9001 Approved, For more information about the certificate,please
feel free to contact me!!
