Dc24v, 23mm/30mm Diameter Multicolor Pixe Led Tube Lighting Controlled by DMX, Artnet Controller

Dc24v, 23mm/30mm Diameter Multicolor Pixe Led Tube Lighting Controlled by DMX, Artnet Controller thumbnail-1
Dc24v, 23mm/30mm Diameter Multicolor Pixe Led Tube Lighting Controlled by DMX, Artnet Controller thumbnail-2
Dc24v, 23mm/30mm Diameter Multicolor Pixe Led Tube Lighting Controlled by DMX, Artnet Controller thumbnail-3
Dc24v, 23mm/30mm Diameter Multicolor Pixe Led Tube Lighting Controlled by DMX, Artnet Controller thumbnail-4
Dc24v, 23mm/30mm Diameter Multicolor Pixe Led Tube Lighting Controlled by DMX, Artnet Controller thumbnail-5
Dc24v, 23mm/30mm Diameter Multicolor Pixe Led Tube Lighting Controlled by DMX, Artnet Controller thumbnail-6
Dc24v, 23mm/30mm Diameter Multicolor Pixe Led Tube Lighting Controlled by DMX, Artnet Controller photo-1
Dc24v, 23mm/30mm Diameter Multicolor Pixe Led Tube Lighting Controlled by DMX, Artnet Controller photo-2
Dc24v, 23mm/30mm Diameter Multicolor Pixe Led Tube Lighting Controlled by DMX, Artnet Controller photo-3
Dc24v, 23mm/30mm Diameter Multicolor Pixe Led Tube Lighting Controlled by DMX, Artnet Controller photo-4
Dc24v, 23mm/30mm Diameter Multicolor Pixe Led Tube Lighting Controlled by DMX, Artnet Controller photo-5
Dc24v, 23mm/30mm Diameter Multicolor Pixe Led Tube Lighting Controlled by DMX, Artnet Controller photo-6
US$ 15 - 29 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
high bright Epistar 3535 RGB LED chip
Type:
LED Bar Lights
Input Voltage(V):
DC24V
Contact Supplier Request Quote Chat Now
Shenzhen IPixel LED Light Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source high bright Epistar 3535 RGB LED chip
Type LED Bar Lights
Input Voltage(V) DC24V
Lamp Power 19
Lamp Luminous Flux(lm) 18-20lm/led
Color Temperature(CCT) changeable
Working Temperature(℃) -10, 40
Working Lifetime(Hour) 50000
Lamp Body Material PVC
Certification CE
Emitting Color Other, changeable
Place of Origin Guangdong, China
Brand Name iPixel LED
Model Number B4816V24

dc24v, 23mm/30mm diameter multicolor pixe led tube lighting controlled by DMX, Artnet controller





Describe:

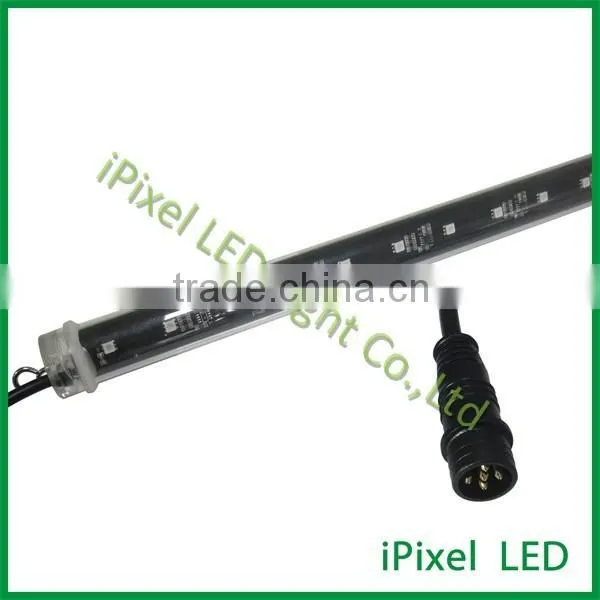

This DMX Control LED Tube designed by clear PC tube
The whole tube had 16 Pixel which is 48ch DMX address
48pcs supper bright Epistar SMD RGB LED (one side)
both side 96pcs LED make it 360 viewing
each tube included 1pcs eye hook for installation

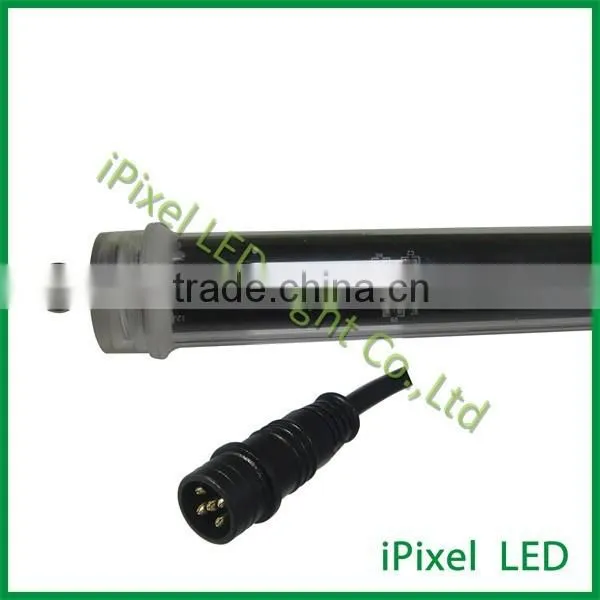

every dmx tube attached a waterproof 5Pin connector (black color)
the length of connector 20cm,5Pin 20AWG copper wire in white PVC
the tube didn't attach any T type (3 way) connectors for power injection
it request to purchase seperately
the diameter is tube is 30mm (we also offer 20mm diameter size)
Avaliable size : 50cm & 100 cm

Brand: iPixel LED





Details:



Product Name DMX led vertical tube
Product Model B4816V24
Protocol DMX512
LED chip high bright Epistar 3535 RGB LED chip
PCB Color Black PCB
LED Qty 96LEDs, (48LEDs each side)
Diameter 30mm(we also offer 23mm diameter size)
Voltage DC24V
Power(/M) 19W/M
Connector 5Pin connector
 Waterproof  Yes waterproof IP65
Coding Manually





Drawing





dc24v, 23mm/30mm diameter multicolor pixe led tube lighting controlled by DMX, Artnet controller

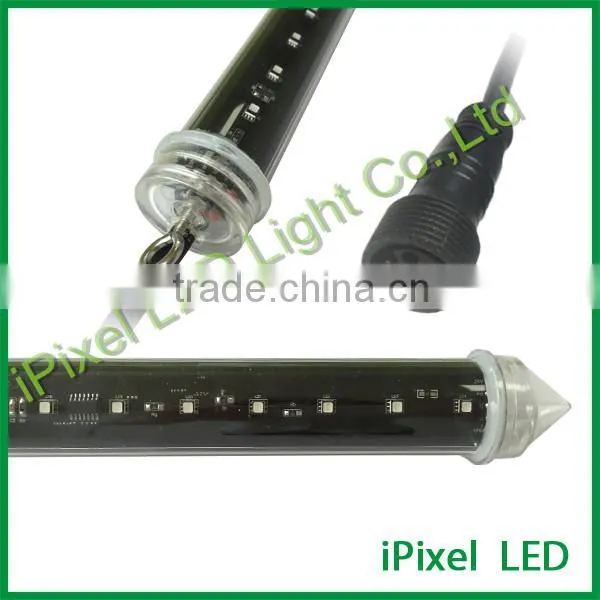

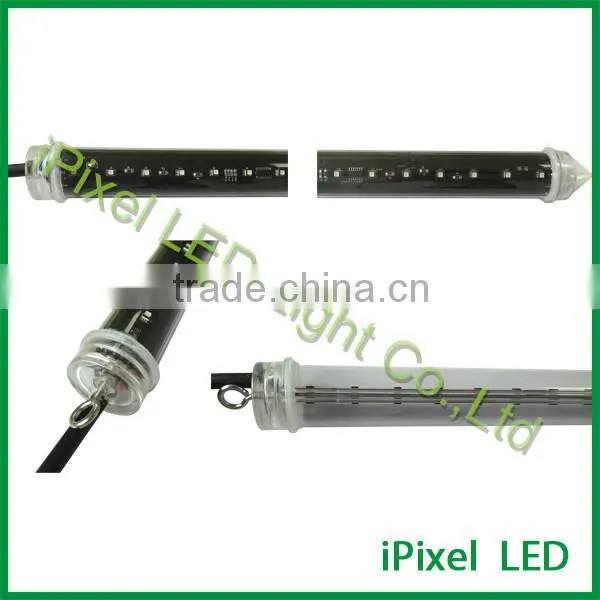

Pictures:

dc24v, 23mm/30mm diameter multicolor pixe led tube lighting controlled by DMX, Artnet controllerdc24v, 23mm/30mm diameter multicolor pixe led tube lighting controlled by DMX, Artnet controller

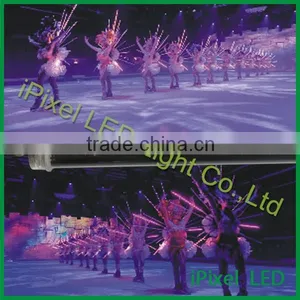

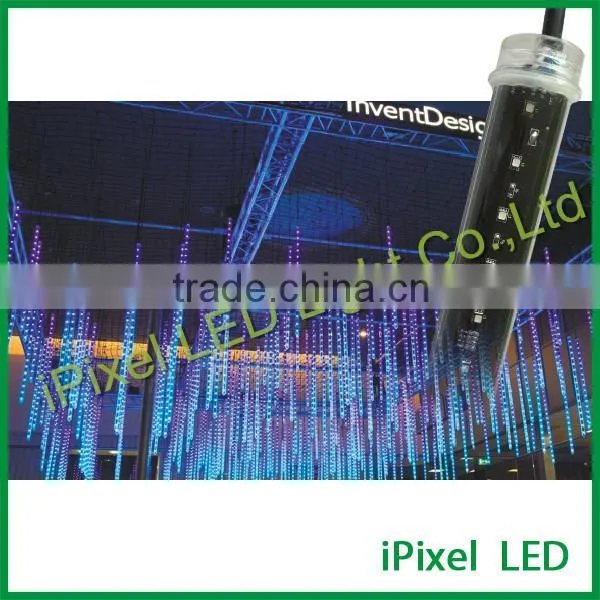

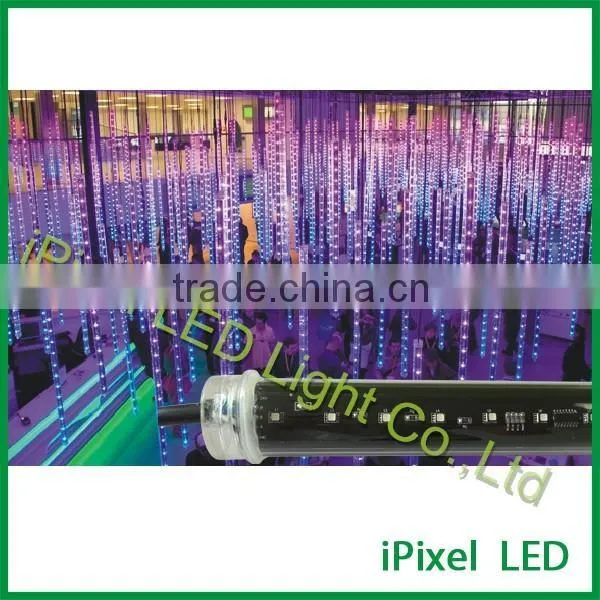

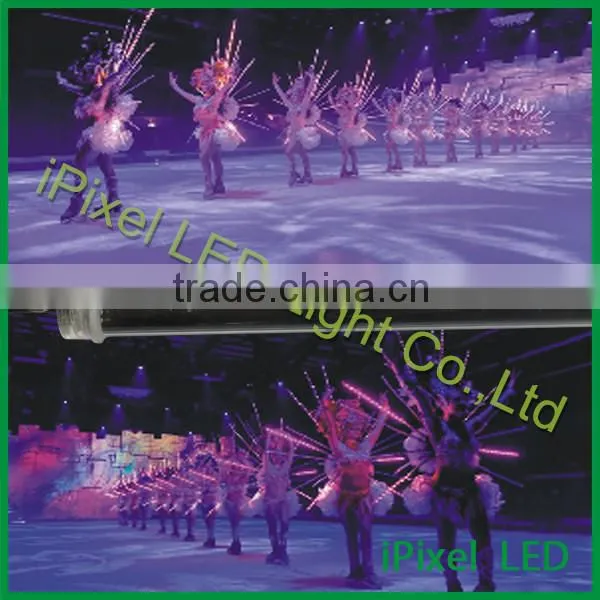

Application:



dc24v, 23mm/30mm diameter multicolor pixe led tube lighting controlled by DMX, Artnet controller

dc24v, 23mm/30mm diameter multicolor pixe led tube lighting controlled by DMX, Artnet controller

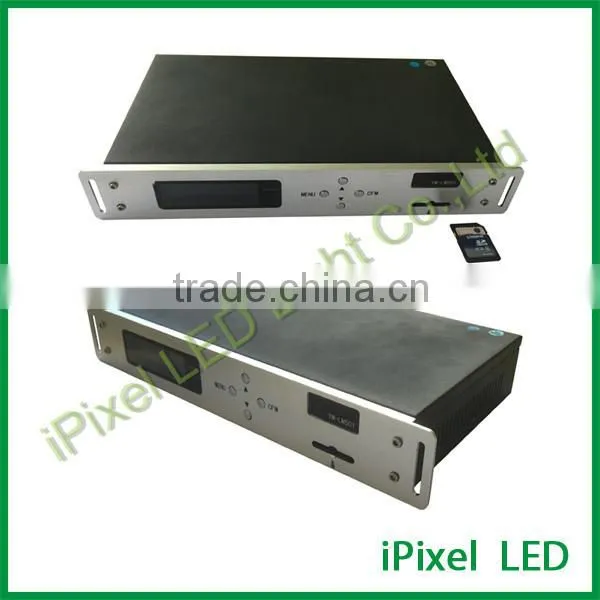

Madrix compatiable DMX LED controller:



dc24v, 23mm/30mm diameter multicolor pixe led tube lighting controlled by DMX, Artnet controller

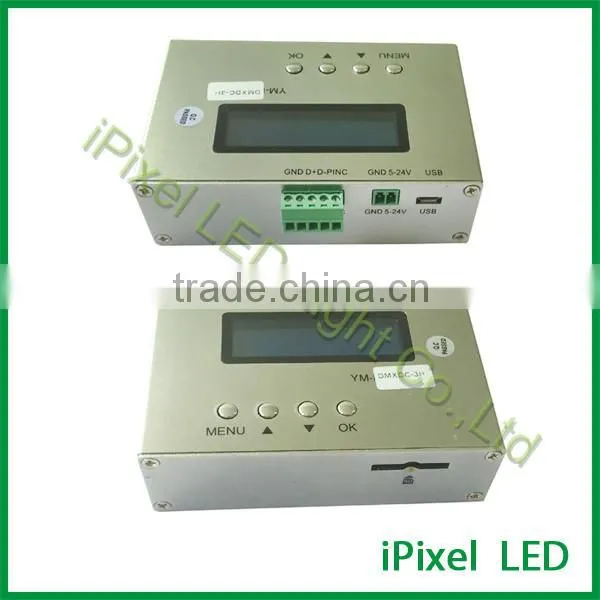

Address coder:

dc24v, 23mm/30mm diameter multicolor pixe led tube lighting controlled by DMX, Artnet controller



Connector:



dc24v, 23mm/30mm diameter multicolor pixe led tube lighting controlled by DMX, Artnet controller



T type connector:

dc24v, 23mm/30mm diameter multicolor pixe led tube lighting controlled by DMX, Artnet controller
