WS2812B 60 Pixels/m 5050 Rgb Digital Led Rigid Bar Waterproof Outdoor

WS2812B 60 Pixels/m 5050 Rgb Digital Led Rigid Bar Waterproof Outdoor thumbnail-1
WS2812B 60 Pixels/m 5050 Rgb Digital Led Rigid Bar Waterproof Outdoor thumbnail-2
WS2812B 60 Pixels/m 5050 Rgb Digital Led Rigid Bar Waterproof Outdoor thumbnail-3
WS2812B 60 Pixels/m 5050 Rgb Digital Led Rigid Bar Waterproof Outdoor photo-1
WS2812B 60 Pixels/m 5050 Rgb Digital Led Rigid Bar Waterproof Outdoor photo-2
WS2812B 60 Pixels/m 5050 Rgb Digital Led Rigid Bar Waterproof Outdoor photo-3
US$ 10 - 12.9 MOQ: 1 Meter
Key Specifications
Get Latest Price
LED Light Source:
Epistar 5050 SMD
Type:
LED Bar Lights
Input Voltage(V):
DC5V
Contact Supplier Request Quote Chat Now
Shenzhen IPixel LED Light Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar 5050 SMD
Type LED Bar Lights
Input Voltage(V) DC5V
Lamp Power 14.4
Lamp Luminous Flux(lm) 1
Color Temperature(CCT) ICRGB
Working Temperature(℃) -40, 40
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
Certification CE
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name iPixel LED
Model Number B6060V5

WS2812B 60 pixels/m 5050 rgb digital led rigid bar waterproof outdoor



About Products

1. This addressable LED bar made by 20pcs 50cm length PCB, but it's cuttable every LED.

2. The LED is the most popular chip WS2812, WS2811 chip build inside SMD 5050 RGB.

3. Aluminum housing with epoxy waterproof IP65, both side of bar output the waterproof

    3Pin connector.

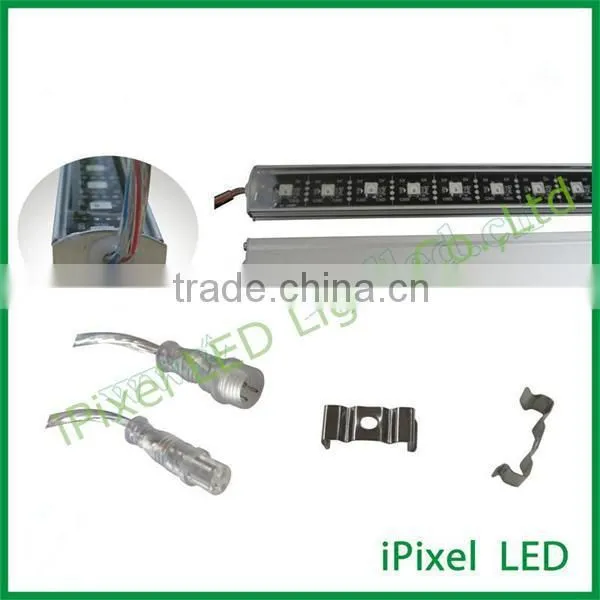

4. Every 1 meter bar include 2pcs metal clip(for installation use), 1 pcs T type connector

    (every 5m).

5. PCB Color: Black only, PCB Width: 15mm.

6. Control: SD controller ,DMX Decoder, Artnet,etc.



Specification
Product Name WS2812B 60 pixels led bar light
Model Number B6060V5
Voltage DC5V input
Power 14.4W/M
LED Qty 60 leds/m
IC Chip ws2811 built-in 5050 RGB LED chip
Size/mm 1000*20
PCB Width 15mm
PCB Color Black
Connector 3Pin waterproof connectors
IP Rate IP65 epoxy waterproof
Warranty 2 years
Detail Pictures

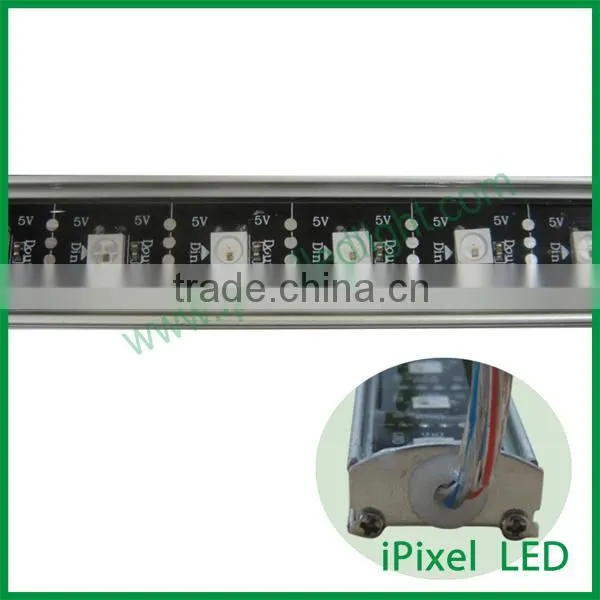

WS2812B 60leds/m addressable led bar light

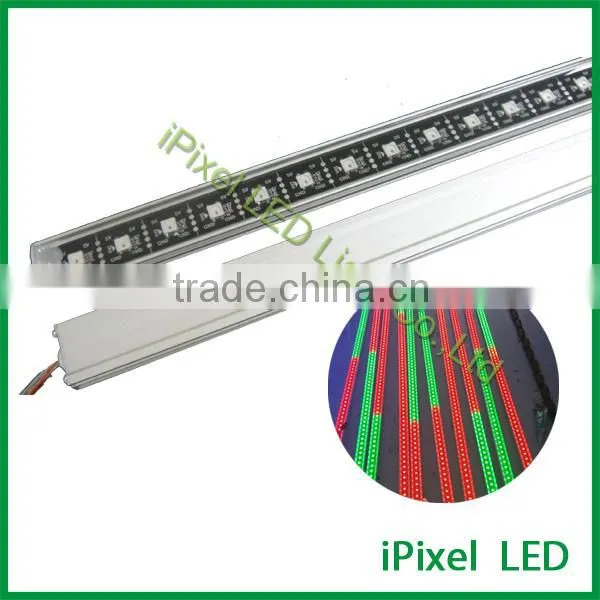

WS2812B 60 pixels/m 5050 rgb digital led rigid bar waterproof outdoor

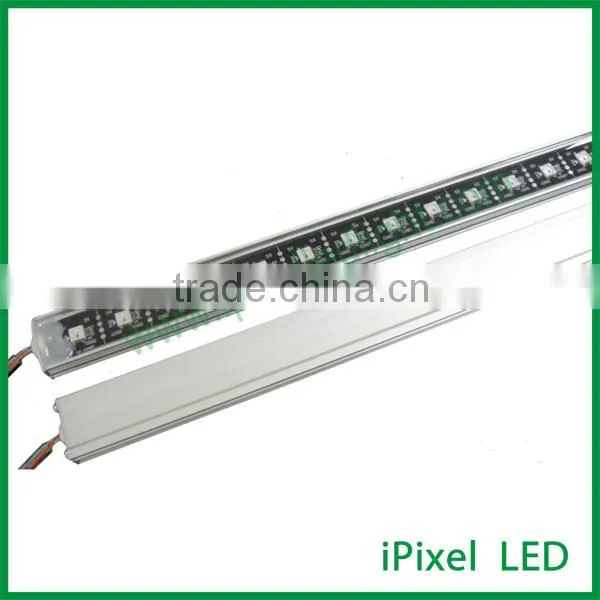

WS2812B 60 pixels/m 5050 rgb digital led rigid bar waterproof outdoor

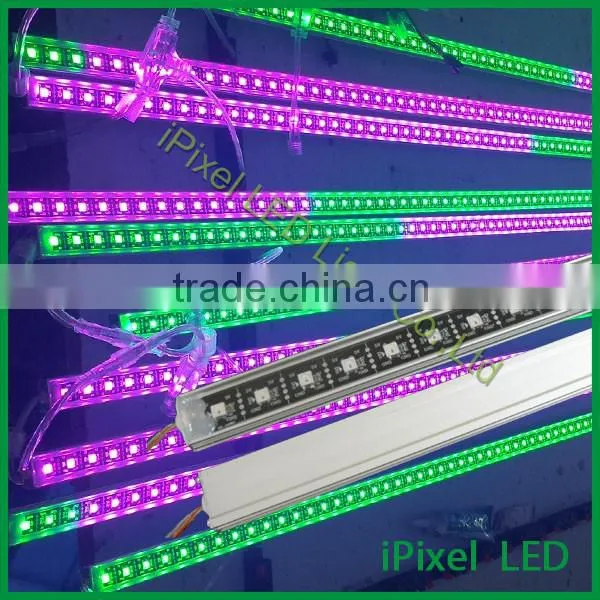

WS2812B 60 pixels/m 5050 rgb digital led rigid bar waterproof outdoor

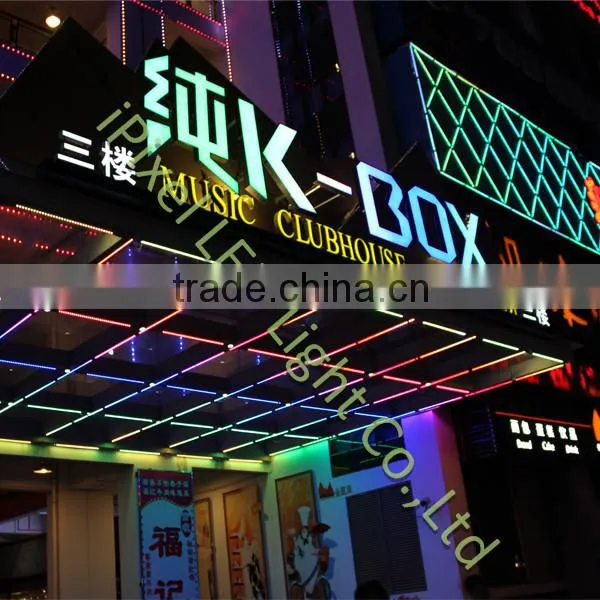

Showing picture:

WS2812B 60 pixels/m 5050 rgb digital led rigid bar waterproof outdoorWS2812B 60 pixels/m 5050 rgb digital led rigid bar waterproof outdoor

Outline Dimension

WS2812B 60 pixels/m 5050 rgb digital led rigid bar waterproof outdoor

Related Products

360 view DMX Vertical led tube

WS2812B 60 pixels/m 5050 rgb digital led rigid bar waterproof outdoor

16 pixel DMX led tube

WS2812B 60 pixels/m 5050 rgb digital led rigid bar waterproof outdoor


Connection way

SPI signal: LED Strip+LED power supply +LED controller

DMX control: LED Strip+LED pwer supply+DMX Controller+DMX decoder

LED controller: T- series SD card controller, RF remote controller, DMX controller, Arduino

(offline / PC online)

LED power suppply: Meanwell power supply, T- series, A- series power supply

(waterproof / non-waterproof)

WS2812B 60 pixels/m 5050 rgb digital led rigid bar waterproof outdoor
WS2812B 60 pixels/m 5050 rgb digital led rigid bar waterproof outdoor
