Home > Lights & Lighting > LED Interior Lighting > LED Tube > Waterproof 5 Pin Connector Digital 16 Pixel Dmx Led Tube
Waterproof 5 Pin Connector Digital 16 Pixel Dmx Led Tube
US$ 15.5 - 19.5
MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
Epistar
Input Voltage(V):
DC12V
Lamp Power:
19
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen yantian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
16 Pixels UCS1903 3pin Connectors Dmx Led Rigid Bar LightUS$ 7.2 - 8MOQ: 1 Meter -
IPixel LED SMD5730 Outdoor Waterproof Rigid Ip65 Led Strip Aluminium ProfileUS$ 2 - 6.5MOQ: 1 Piece
-
IPixel LED Waterproof SMD 5730 Aluminum Led Strip 24V Rigid Led StripUS$ 2 - 6.5MOQ: 1 Piece
-
SMD5050 1IC & 6LEDs DC24V DMX Led TubeUS$ 15 - 20MOQ: 1 Piece
-
Digital Ucs1903 Dc12v Led Light Rigid Bar With a Optical Lens for Each LED ChipUS$ 10 - 16MOQ: 1 Meter
LED Light Source
Epistar
Input Voltage(V)
DC12V
Lamp Power
19
Lamp Luminous Flux(lm)
20
Color Temperature(CCT)
Other, other
Working Temperature(℃)
-40, 60
Working Lifetime(Hour)
50000
Lamp Body Material
PVC
IP Rating
IP65
Certification
CE
Place of Origin
Guangdong, China
Brand Name
iPixel LED
Model Number
B4816V12
waterproof 5 Pin connector digital 16 pixel dmx led tube
Description

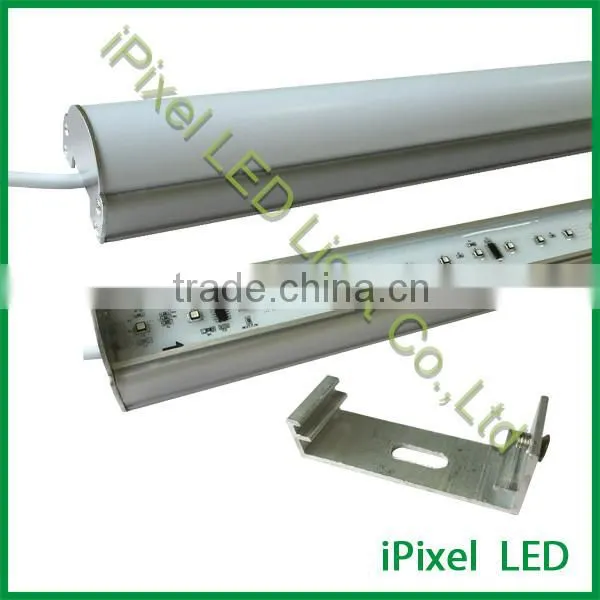

This DMX Control LED Tube designed by Aluminum case with a Milky
-white PC lens on top of the profile, but we also offer clear lens
-The whole tube had 16 Pixel which is 48ch DMX address
48pcs supper bright Epistar SMD RGB LED
-each tube included 2pcs Aluminum clips,but without screw
the clip can not change the angle after install to the wall
-every dmx tube attached a pair of waterproof 5Pin connector
output from backside of profile, you can hide it with the power wire
-the length of connector 20cm,5Pin 20AWG copper wire in white PVC
-the tube didn't attach any T type (3 way) connectors for power injection
it request to purchase seperately and we recommend every 5M tube supply power
Feature
| Model | B4816V12 |
| Size/m | 1000*40mm |
| Voltage | DC12V |
| Power | 19W |
| Protocol | DMX512 |
| Address | 48CH |
| LED Qty | 48pcs 3535 RGB |
| Coding | Manually |
| Pixel | 16pixels |
| IP Rate | IP65 |
| Connectors | 5pin waterproof connectors |
| Certification | CE, RoHS |

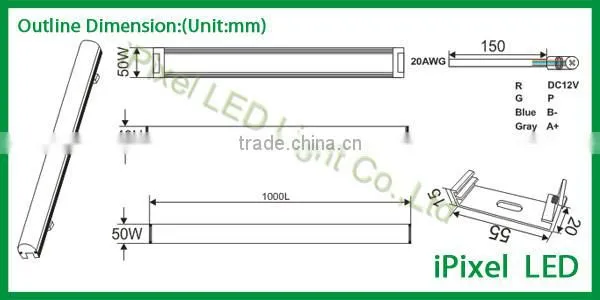

Structure Drawing
