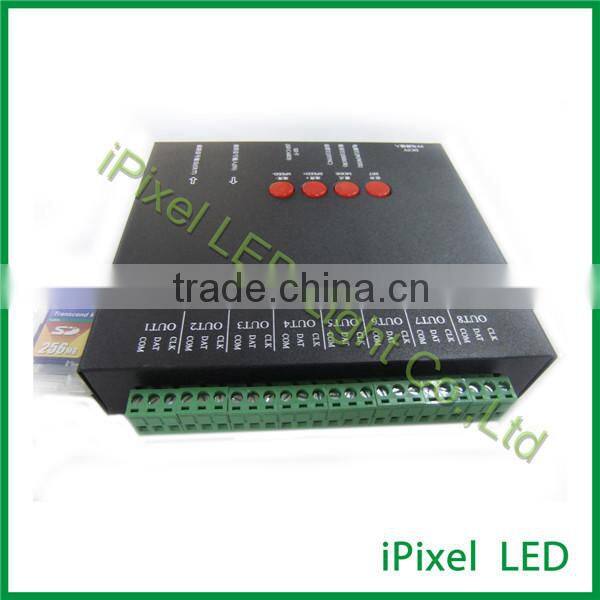

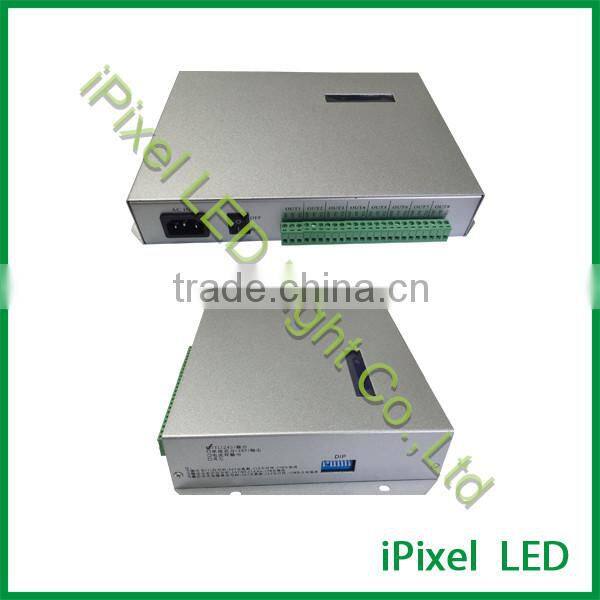

DAT CLK single line and double line spi signal ic led controller T-1000
1 . 256 Gray , Gamma correction processing software
2 . Support the rules and special-shaped handle.
3 . Controller, a port output, may bring 1024/2048 light.
4 . Off-line control, play back content stored in the SD card
5 . T-1000C store a maximum of 16 documents
Note: T-1000C-port 512 lights, the playback speed of up to 30 frames / sec, the port more than 512
lights, the frame rate with the increase in the number of lights automatically reduced.
Supported chip
| Support Chips | LedEdit software |
Single load |
Notes |
LPD6803,D705,1101,UCS6 |
T-1000-6803 | 2048 pixels | |
| LPD8806, LPD8809 | T-1000-8806 | 2048 pixels | |
|
TM1803,TM1804,TM1809, TM1812,UCS1903 |
T-1000-TM | 2048 pixels | TM1804 and TM1809 of high |
| Standard DMX,HX512 | T-1000-DMX | 170/512 Pixel | Compatible with standard |
| WS2801,WS2803, WS2811 | T-1000-WS | 2048 pixels | |
TLS3001,TLS3002,TLS30 |
T-1000-TLS | 2048 pixels | |
| P9813 | T-1000-P9813 | 2048 pixels | |
| SM16715 | T-1000-SM16715 | 2048 pixels | |
| SM16716 | T-1000-SM16716 | 2048 pixels | |
| BS0815,BS0825,BS0901 | T-1000-0815 | 2048 pixels |
Specific parameters
Memory Card:
Type : SD Card
Capacity : 256MB —2GB
File Format : FAT file format
Store files : *.led
Physical parameters
Weight : 0.2kg
Size : 122mm*67mm*25mm
Temperature : -20 ℃—85 ℃
Power Supply : DC 5V —24V
Power : 3W
Note :
To copy files to SD card, you must first format to the SD card, pay attention to is that each copy
must be formatted before.
SD card must be formatted as "FAT" format.
We also have other types of T- series SD card controller
T4000C
T8000C
T300K
