Most Popular Round Digital Rgb Led Pixel With ic Ucs 1903 12mm 5v

Most Popular Round Digital Rgb Led Pixel With ic Ucs 1903 12mm 5v thumbnail-1
Most Popular Round Digital Rgb Led Pixel With ic Ucs 1903 12mm 5v photo-1
US$ 0.1 - 0.39 MOQ: 1 Chain
Key Specifications
Get Latest Price
LED Light Source:
Epistar F8mm Dip LED
Input Voltage(V):
DC5V
Lamp Power:
0.3
Contact Supplier Request Quote Chat Now
Shenzhen IPixel LED Light Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar F8mm Dip LED
Input Voltage(V) DC5V
Lamp Power 0.3
Lamp Luminous Flux(lm) 18-20
Lamp Luminous Efficiency(lm/w) 10
Color Temperature(CCT) Other, addressable
Working Temperature(℃) -30, 40
Working Lifetime(Hour) 50000
Lamp Body Material PVC
IP Rating IP66
Certification CE
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name iPixel LED
Model Number P12RV5

most popular round digital rgb led pixel with ic ucs 1903 12mm 5v





DESCRIPTION:

1. Individually control: 1PCS LED pixel & 1IC

2. IC chip: can be ws2801, ws2811, ucs1903, sm16716, lpd6803 IC .

3. Waterproof: Yes IP66, with full silicon glue waterproof protection.

4. Installation: Easy to install, you'd better drill the hole with 12mm.

5. With features of high brightness, low power dissipation, long lifespan, low Voltage, low decline, colorful.

6. Power supply: You must use a 5V DC power supply to power this pixel, do not use higher than 6V

     or you can destroy the entire pixel.

7. Connetors: 3PIN or 4PIN JST female and male connectors.

     each led pixel is seperate, you can connect them one by one via male and female connectors easliy.

     3PIN: DAT, DC5V+, GND-

     4PIN: DAT, CLK, DC5V+, GND

8. Factory sales directly, good quality and price, offer 2 years warranty and quikly after-sale service.

9. Color and effect: addressable lights you can set to any color, or animate, like running water,chasing

     and scanning etc. depending on the different installation methods may compose different dynamic

     effect of different color's character and design

10. Brand: iPixel LED





FEATURE:

TYPE 3PIN connectors 4PIN connecyors
Poroduct Name 12mm round led pixel 12mm round led pixel
IC Chip WS2811, UCS1903 SM16716, WS2801, LPD6803
LED Chip Epistar F8mm Dip LED Epistar F8mm Dip LED
Wires DAT, GND-, DC5V+ DAT, CLK, DC5V+, GND-
Waterproof full silicon glue full silicon glue
Voltage dc5v dc5v
Watts(/pcs) 0.3w 0.3w
Warranty 2 years 2 years
Certification  CE, RoHS CE, RoHS





PICTURES:

12mm led pixels——3pin connectors

12mm led pixels——4pin connectors

12mm led pixels, showing pictures:

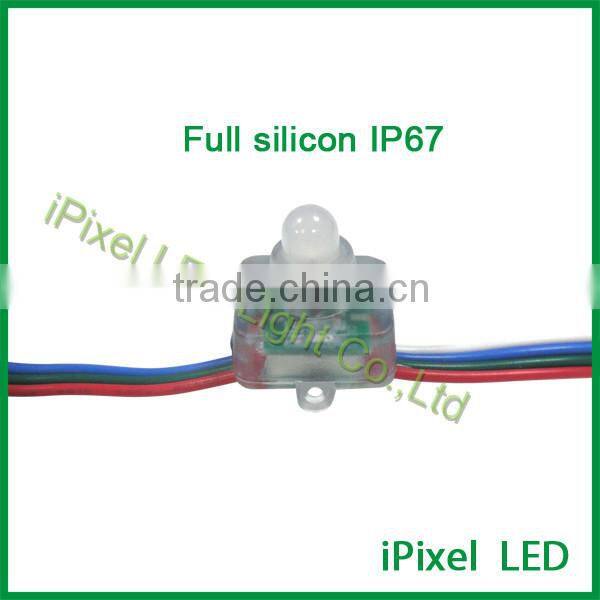

We also have another type, with 12mm square:



CONNECTION WAY:

SPI signal: LED Pixels+LED power supply +LED controller

DMX control: LED Pixels+LED pwer supply+DMX Controller+DMX decoder

LED controller: T- series SD card controller, RF remote controller, DMX controller, Arduino...

(offline control/ PC online control)

LED power suppply: Meanwell power supply, T- series, A- series power supply...

(waterproof / non-waterproof)
